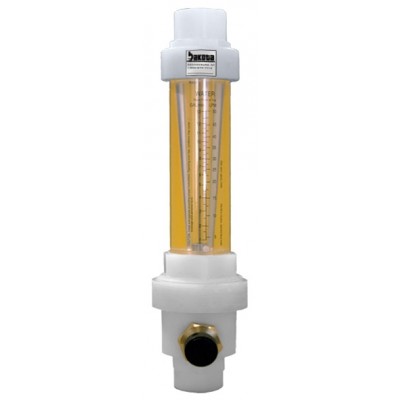

Argon (Ar) Flow Meters - Acrylic, Polypropylene Fittings, Valve Included

This Acrylic Flowmeter with Valve has a Dual Direct Reading Scale with yellow backing for easy viewing of Argon flow values. Viton® Seals, 3/4" FNPT and Polypropylene End fittings are standard. The float/guide material is 316 Stainless Steel. This Flowmeter is designed for inline mounting and can handle a Maximum Flow Rate of 1800 LPM (65 SCFM).
  • Yellow Backed Scales in English or Metric Measures
  • In-Line Mount
  • Valve
  • Simple Dis-assembly and Assembly for Cleaning
  • Stable, Easy to Read Float
  • Optional scales can be developed for diverse low flow conditions, facilitating OEM applications
Specifications 6A03 Acrylic Flow Meters
Accuracy: +/- 5% of Full Scale reading
Maximum Temperature:
54 ° C (130° F)
Maximum Pressure:
6.89 bars (100 psig)
Maximum Flow Rate:
1800 LPM (65 SCFM)
Body:
Optical, Clear, Cast Acrylic
Float & Guide
316 Stainless Steel
O-Rings:
Viton®
Connections: Polypropylene 3/4" NPT Female Connections
Valve Parts: Brass

Usually Ships in 5 to 7 Business Days
Item #Item DescriptionItem PriceSubtotalQty
6A0311PV-AEArgon Flow Meters 1800 LPM (65 SCFM) - Acrylic, Polypropylene Fittings, Valve Included (6A0311PV-AE) $180.00 $0.00
