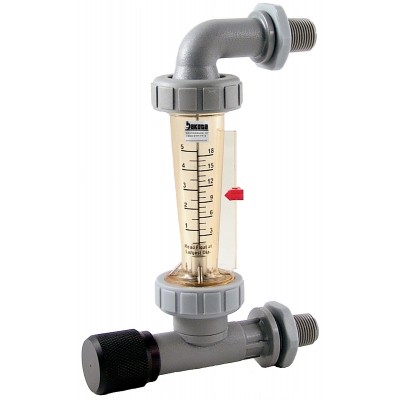

Polysulfone Panel Mount Flow Meter with Polysulfone Connections - Water, 2" GPM/LPM or GPH/LPH Scales, Adjustable Needle Valve

These compact, durable flow meter units are injection molded of heat and chemical resistant Polysulfone. They feature curved Quik Loc (half union) connectors that easily couple the meter body to the pipe connectors at each end of the flow meter. Designed to be Panel Mounted.

With connections of 3/8" MNPT or 1/2" MNPT, the 6B0102 has a fluid flow range of 0.025 GPM to 10 GPM.
  • Tough Polysulfone meter body resistant high temperature and pressures
  • Compact size for tight installation spaces
  • 2 inch scale length
  • Direct reading flow scale
  • Direct reading flow scale
  • Flow adjustment valve
  • Not recommend for direct sunlight
Specifications 6B0102-H20
Accuracy: +/- 5% of Full Scale reading
Maximum Fluid Temperature:
Standard Units: 100 ° C (212° F) @ 0 PSI

Units with PVC: 54° C (130° F) @ 0 PSI

Units with Brass: 115° C (240° F) @ 0 PSI
Maximum Working Pressure:
10.3 bars (150 psig) @ 21 ° C (70° F)
Meter Body Material:
Polysulfone
Connection Material:
Polysulfone
Float Materials:
PVDF, 316 SS, PTFE
O-Ring Seals:
Viton®
Calibration Fluid: Water, Specific Gravity 1.0

Usually Ships in 5 to 7 Business Days
Item # Item Description Item Price Subtotal Qty
6B0102-01C Flow Range: 0.025 - 0.250 GPM, 0.1 - 1.0 LPM, Center to Center Distance: 6", Float: PVDF, Adapter: 3/8" MNPT Polysulfone $139.00 $0.00
6B0102-01D Flow Range: 0.025 - 0.250 GPM, 0.1 - 1.0 LPM, Center to Center Distance: 6", Float: PVDF, Adapter: 1/2" MNPT Polysulfone $139.00 $0.00
6B0102-02C Flow Range: 0.1 - 1.0 GPM, 0.4 - 4.0 LPM , Center to Center Distance: 6", Float: 316 SS, Adapter: 3/8" MNPT Polysulfone $139.00 $0.00
6B0102-02D Flow Range: 0.1 - 1.0 GPM, 0.4 - 4.0 LPM , Center to Center Distance: 6", Float: 316 SS, Adapter: 1/2" MNPT Polysulfone $139.00 $0.00
6B0102-03C Flow Range: 0.2 - 2.0 GPM, 0.8 - 8.0 LPM, Center to Center Distance: 6", Float: 316 SS, Adapter: 3/8" MNPT Polysulfone $139.00 $0.00
6B0102-03D Flow Range: 0.2 - 2.0 GPM, 0.8 - 8.0 LPM, Center to Center Distance: 6", Float: 316 SS, Adapter: 1/2" MNPT Polysulfone $139.00 $0.00
6B0102-04C Flow Range: 0.5 - 5.0 GPM, 1.8 - 18.0 LPM, Center to Center Distance: 6", Float: 316 SS, Adapter: 3/8" MNPT Polysulfone $139.00 $0.00
6B0102-04D Flow Range: 0.5 - 5.0 GPM, 1.8 - 18.0 LPM, Center to Center Distance: 6", Float: 316 SS, Adapter: 1/2" MNPT Polysulfone $139.00 $0.00
6B0102-05D Flow Range: 1.0 - 10 GPM, 5.0 - 37.5 LPM, Center to Center Distance: 6 13/16", Float: 316 SS, Adapter: 1/2" MNPT Polysulfone $155.00 $0.00
6B0102-05E Flow Range: 1.0 - 10 GPM, 5.0 - 37.5 LPM, Center to Center Distance: 6 13/16", Float: 316 SS, Adapter: 3/4" MNPT Polysulfone $155.00 $0.00
6B0102-06C Flow Range: 3.0 - 30 GPH, 10 - 110 LPH, Center to Center Distance: 6", Float: PTFE, Adapter: 3/8" MNPT Polysulfone $139.00 $0.00
6B0102-06D Flow Range: 3.0 - 30 GPH, 10 - 110 LPH, Center to Center Distance: 6", Float: PTFE, Adapter: 1/2" MNPT Polysulfone $139.00 $0.00
6B0102-07C Flow Range: 5.0 - 60 GPH, 20 - 220 LPH, Center to Center Distance: 6", Float: 316 SS, Adapter: 3/8" MNPT Polysulfone $139.00 $0.00
6B0102-07D Flow Range: 5.0 - 60 GPH, 20 - 220 LPH, Center to Center Distance: 6", Float: 316 SS, Adapter: 1/2" MNPT Polysulfone $139.00 $0.00

* Required Fields

Usually Ships in 5 to 7 Business Days
$139.00
