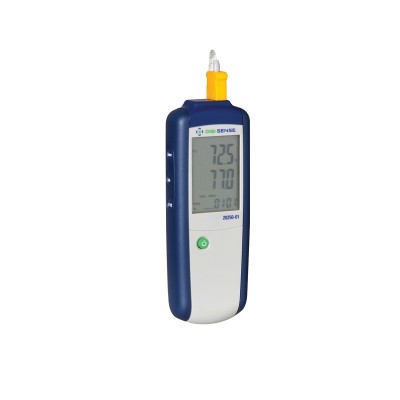

Digital Thermocouple Thermometer with NIST

Digital Thermocouple Thermometer with NIST
Image for illustrative purposes only, actual product may vary.

Alternative Views:
  • Alternate Product Image
  • Alternate Product Image
  • Alternate Product Image
Need reliable, quick temperature readings everywhere - from lab to production floor? Digi-Sense's hand-held thermocouple thermometers are the choice when accuracy is required. Each model's distinctive features accommodate a wide range of applications.


**Note - Model WD-20250-20: Optional Infrared Wand (Model 20250-24) must be ordered separately.
  • Easy, intuitive set-up and operation
  • A wide variety of thermocouple probes are accepted
  • The unit's ergonomic design comfortably fits in your hand
  • Display of temperature differential, except Model 20250-01
  • Select readout in degrees C, F, or K (Kelvin) with 0.1 resolution
  • For dimly lit conditions, the large backlight LCD allows easy reading
  • Minimum, maximum, and average readings including data Hold function
  • To maximize overall accuracy, electronic offset function allows compensation of probe errors
  • Auto-power off extends battery life
  • Relative time clock on Min/Max/Avg provides a time reference for major events
  • Pre-calibrated and ready to use.*
Specifications WD-20250-01, WD-20250-02 and WD-20250-03
Accuracy: Temperature above -148°F (-100°C):
±[0.5% reading + 1.8°F (1°C)]
Temperature below -148°F (-100°C):
±[0.5% reading + 3.6°F (2°C)]
Min Temperature :
-210 º C / -346 º F
Max Temperature:
1372 º C / 2501 º F
Resolution:
0.1 below 1000 or 1 above 1000
Temp Range:
Type K: -328 to 2501°F (-200 to 1372°C)
Type J: -346 to 2012°F (-210 to 1100°C)
Probe(s) included:
Flexible Type K (WD-20250-01 includes 1 probe, WD-20250-02 includes 2 probes and WD-20250-03 includes 4 probes)
Data Logging:
No - WD-20250-01, Yes - WD-20250-02, Yes -WD-20250-03
Low Battery Indicator:
Yes
CE Compliance:
Yes
Power:
Three AAA batteries (included)
Low Battery Indicator:
Yes
Display:
Large Dual Backlit LCD
Dimensions:
6-3/8" x 2-1/2" x 1-1/8" (16.2 x 6.4 x 2.9 cm)
Product Type:
Thermocouple Meter

Specifications WD-20250-17, WD-20250-18, WD-20250-19 and WD-20250-20
Accuracy: ±[0.15% reading + 1.8°F (1°C)] above -148°F (-100°C)
±[0.5% reading + 3.6°F (2°C)] below -148°F (-100°C)
Min Temperature :
-200 º C / -328 º F
Max Temperature:
1372 º C / 2501 º F
Resolution:
0.1°F/°C to 999.9°, 1° above 999.9°
Temp Range:
Type K: -328 to 2501°F (-200 to 1372°C)
Probe(s) included:
Flexible Type K (WD-20250-18 includes 1 probe, WD-20250-17 includes 2 probes, WD-20250-19 includes 2 probes and WD-20250-20 includes 4 probes)
Data Logging:
No - WD-20250-18, No - WD-20250-17, Yes -WD-20250-19, Yes - WD-20250-20
Low Battery Indicator:
Yes
CE Compliance:
Yes
Power:
One 9V battery
Low Battery Indicator:
Yes
Display:
Large Dual Backlit LCD
Dimensions:
8" x 3" x 2" (20.1 x 7.5 x 5 cm)
Product Type:
Thermocouple Meter

Usually Ships in 3 to 5 Business Days
Item # Item Description Item Price Subtotal Qty
WD-20250-01 Digital Thermocouple Thermometer with 1 TYPE K or J Input $156.00 $0.00
WD-20250-02 Digital Thermocouple Thermometer with 2 TYPE K or J Inputs $234.00 $0.00
WD-20250-03 Digital Thermocouple Thermometer with 4 TYPE K or J Inputs $312.00 $0.00
WD-20250-20 Digital Thermocouple Thermometer with IR Input** & 4 TYPE K Inputs (WD-20250-20) $489.00 $0.00

* Required Fields

Usually Ships in 3 to 5 Business Days
$319.00

* Required Fields

You may also be interested in the following products:

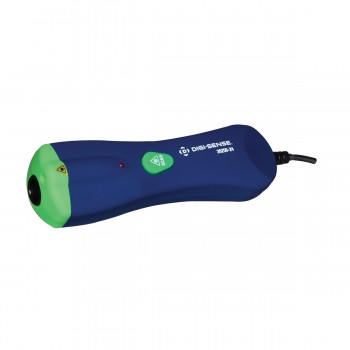

  • Digi-Sense Infrared Wand (WD-20250-24)

    Digi-Sense Infrared Wand (WD-20250-24)

    $53.00
