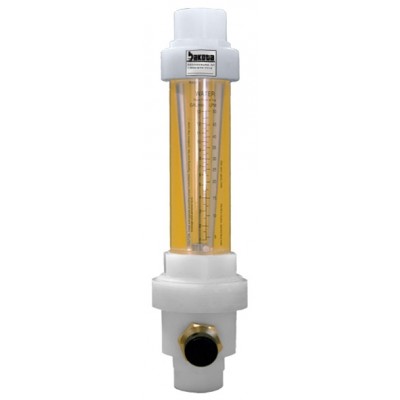

Oxygen (O2) Flow Meters - Acrylic, Polypropylene Fittings, Valve Included

Oxygen (O2) Flow Meters - Acrylic, Polypropylene Fittings, Valve Included

Image for illustrative purposes only, actual product may vary.

This Acrylic Flowmeter with Valve has a Dual Direct Reading Scale with yellow backing for easy viewing of Oxygen flow values. Viton^® Seals, 3/4" FNPT and Polypropylene End fittings are standard. The float/guide material is 316 Stainless Steel. This Flowmeter is designed for inline mounting and can handle a Maximum Flow Rate of 2000 LPM (70 SCFM).

Yellow Backed Scales in English or Metric Measures
In-Line Mount
Valve
Simple Dis-assembly and Assembly for Cleaning
Stable, Easy to Read Float
Optional scales can be developed for diverse low flow conditions, facilitating OEM applications

Specifications		6A03 Acrylic Flow Meters
Accuracy:		+/- 5% of Full Scale reading
Maximum Temperature:		54 ° C (130° F)
Maximum Pressure:		6.89 bars (100 psig)
Maximum Flow Rate:		2100 LPM (70 SCFM)
Body:		Optical, Clear, Cast Acrylic
Float & Guide		316 Stainless Steel
O-Rings:		Viton®
Connections:		Polypropylene 3/4" NPT Female Connections
Valve Parts:		Brass

Usually Ships in 2 to 3 Weeks

Item #	Item Description	Item Price	Subtotal	Qty
6A0311PV-OB	Oxygen Flow Meters 2000 LPM (70 SCFM) - Acrylic, Polypropylene Fittings, Valve Included (6A0311PV-OB)	$450.00	$0.00
