With simple operation and advanced features, the edge pH easily outperforms all other portables and bench tops in its class. The edge&;reg meter (4HA2002-01) will automatically recognize each digital electrode, providing sensor type, calibration data, and serial number. Advanced pH electrode diagnostics ensure worry-free measurements. Use your edge pH meter as a portable, benchtop meter, or mount it on the wall to save space.

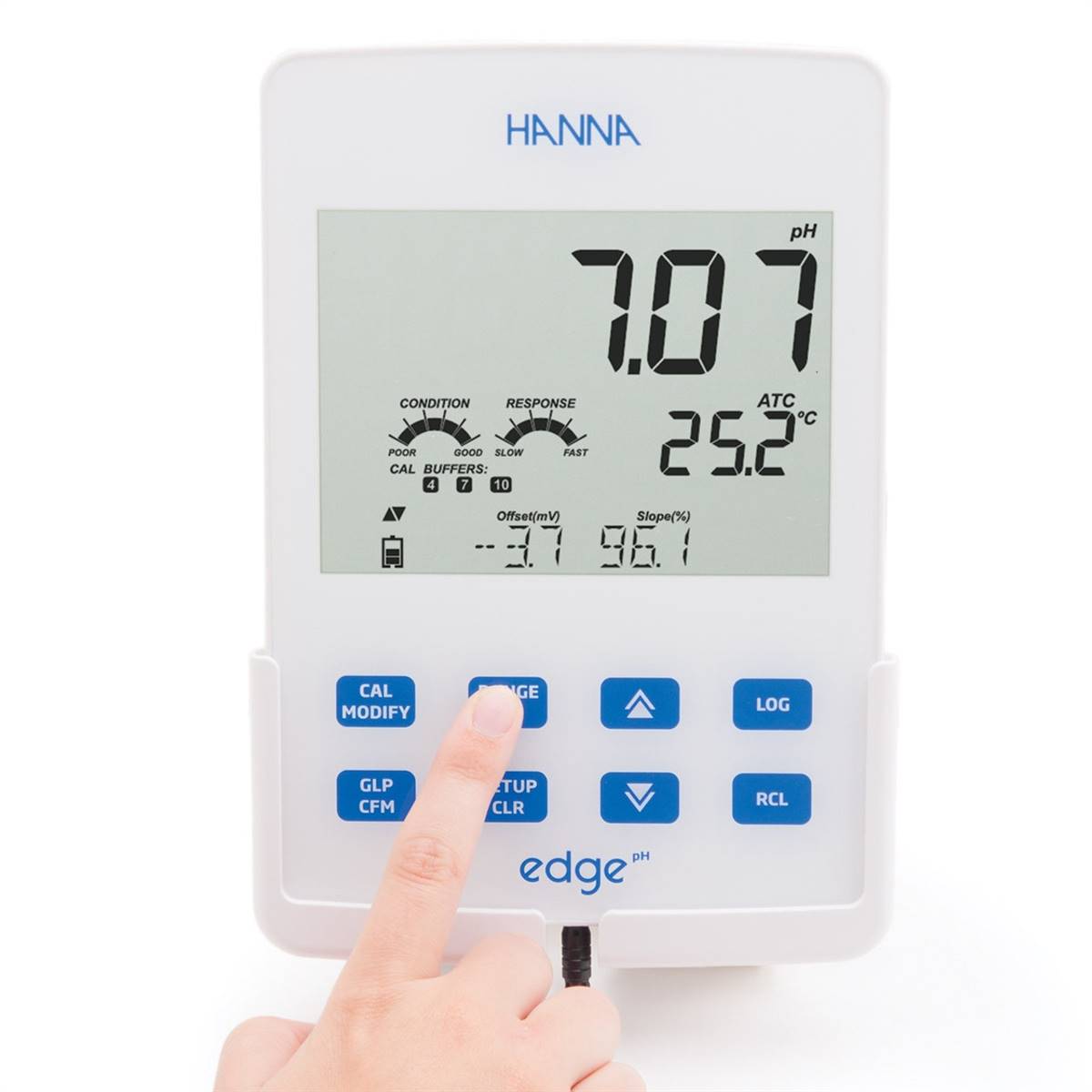

Stunning 5.5 inch screen with 150° viewing angle provide one of the easiset to read LCDs in the industry.

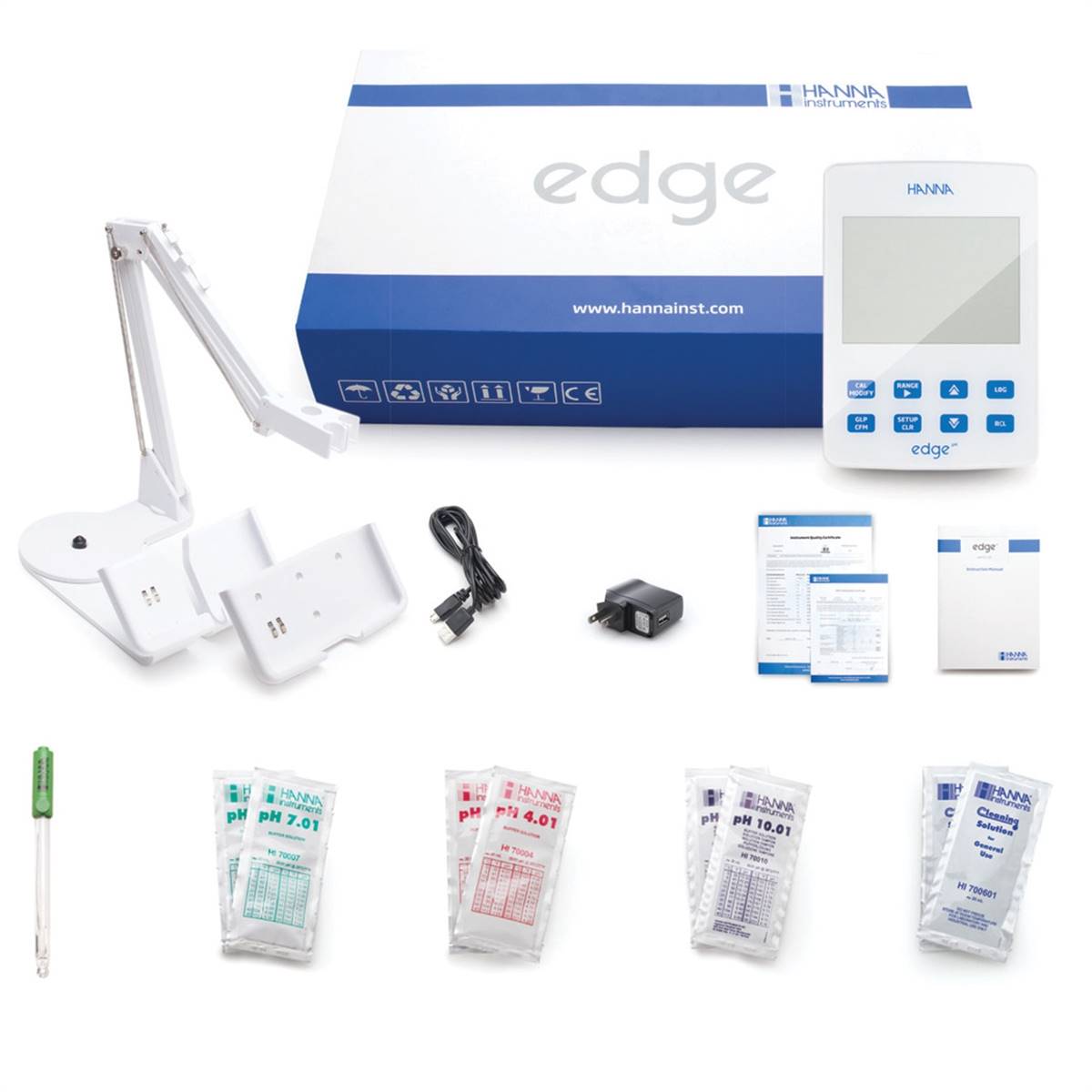

Pricing includes digital pH meter, a smart pH electrode, buffer and cleaning solution sachets (2 each), bench cradle with electrode holder, wall mount, and adapter,
Built for everyone from educators and researchers to home users. Edge® pH digital meter is packed with many cutting edge features to ensure accuracy and usability.
Edge® digital pH Electrodes are highly advanced, featuring a built-in microchip that stores calibration information that is automatically retrieved by Edge® once the electrode is plugged in. Digital electrodes can be changed without recalibration since the calibration information is stored in the pH electrode and not the pH meter. This allows flexibility for the user that measures pH with more than one electrode (ORP electrode sold separately).
|
Features:
- 5.5" Screen with 150° viewing angle
- Simple and Intuitive Operation, ideal for any user
- CAL Check analysis to alert users of potential problems
- Smart pH Electrode
- Sensor Check to check impedance of the pH measuring electrode
Technical Specs:
 |
-
- Specifications
-
| -
-
| -
- 4HA2002-01 Edge® Dedicated pH / ORP Meter
-
| -
- pH Ranges:
-
| -
-
| -
- -2.000 to 16.000, -2.00 to 16.00
-
| -
- pH Resolution:
-
-
| -
-
| -
- 0.001 pH, 0.01 pH
-
-
| -
- pH Accuracy (@ 25°C / +77°F)
-
-
| -
-
| -
- ±0.01 pH, ±0.002 pH
-
-
| -
- pH Calibration:
-
-
| -
-
| -
- Automatic, up to 3 points (5 points*) calibration, 5 standard (7 standard*) buffers available (1.68*, 4.01 or 3.00, 6.86, 7.01, 9.18, 10.01, 12.45*) and 2 custom buffers*
-
-
| -
- pH Temperature Compensation:
-
-
| -
-
| -
- Automatic -5 to 100°C (23 to 212°F) using integral temperature sensor
-
| -
- ORP Range:
-
-
| -
-
| -
- ±2000 mV
-
| -
- ORP Resolution:
-
-
| -
-
| -
- 0.1mV
-
| -
- ORP Accuracy:
-
-
| -
-
| -
- ±0.2 mV (±999.9 mV) ±1 mV (±2000 mV)
-
| -
- Temperature Range:
-
-
| -
-
| -
- -20.0 to 120.0°C, -4.0 to 248.0°F
-
-
| -
- Temperature Resolution:
-
-
| -
-
| -
- 0.1°C, 0.1 °F
-
| -
- Temperature Accuracy:
-
-
| -
-
| -
- ±0.5°C, ±0.9°F
-
-
| -
pH Electrode:-
-
| -
-
| -
- 4HA11310 Glass Body Refillable pH Electrode with Temperature Sensor
-
- Power Supply:
-
| -
-
| -
-
- 5 Vdc Adapter (Included)
-
| -
- Environment:
-
| -
-
| -
-
- 0 to 50°C (32 to 122°F), RH maximum 95% non-condensing
-
| -
- Dimensions:
-
-
| -
-
| -
- 202 x 140 x 12.7 mm (8.0 x 5.5 x 0.5 in.)
-
| -
- Weight:
-
-
| -
-
| -
-
- 250 g (8.82 oz)
-
| -
- Ordering Information:
-
-
| -
-
| -
- 4HA2002 digital pH Meter includes benchtop docking station with electrode holder, wall mount cradle, USB cable, 4HA11310 glass body refillable pH electrode, with temperature sensor, 2 sachets each of pH 4, 7, 10, cleaning solution, 5 Vdc power adapter and instruction manual
-
| -
- Special Notes:
-
-
| -
-
| -
- *temperature limits will be reduced to actual probe / sensor limits ***For standard mode only (logging) *pH 3.00 is only visible when using specific pH electrodes and will replace pH 4.01 buffer
-
| -
- Warranty:
-
-
| -
-
| -
- 2 years
-
| |
User Manual & Documentation:
|
