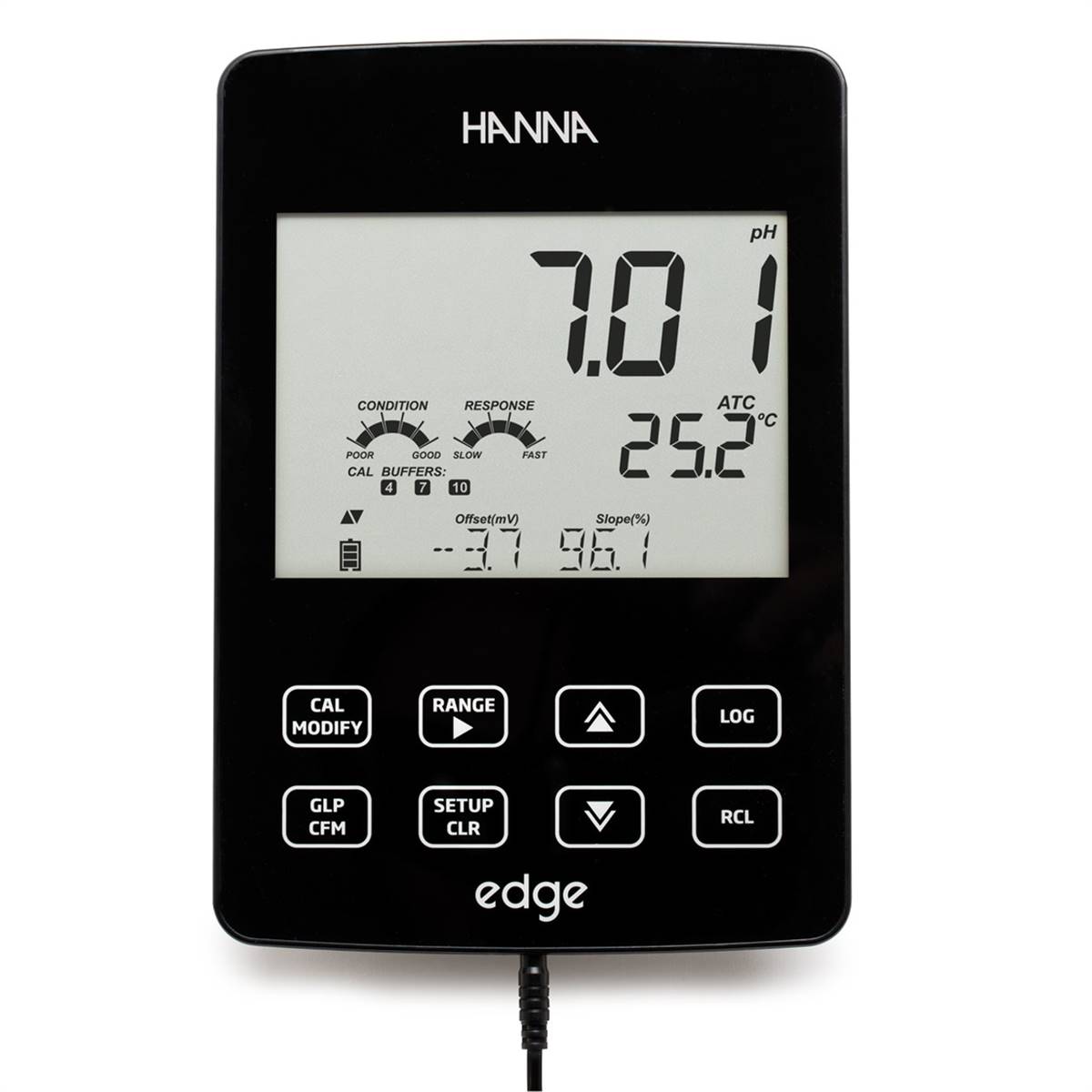

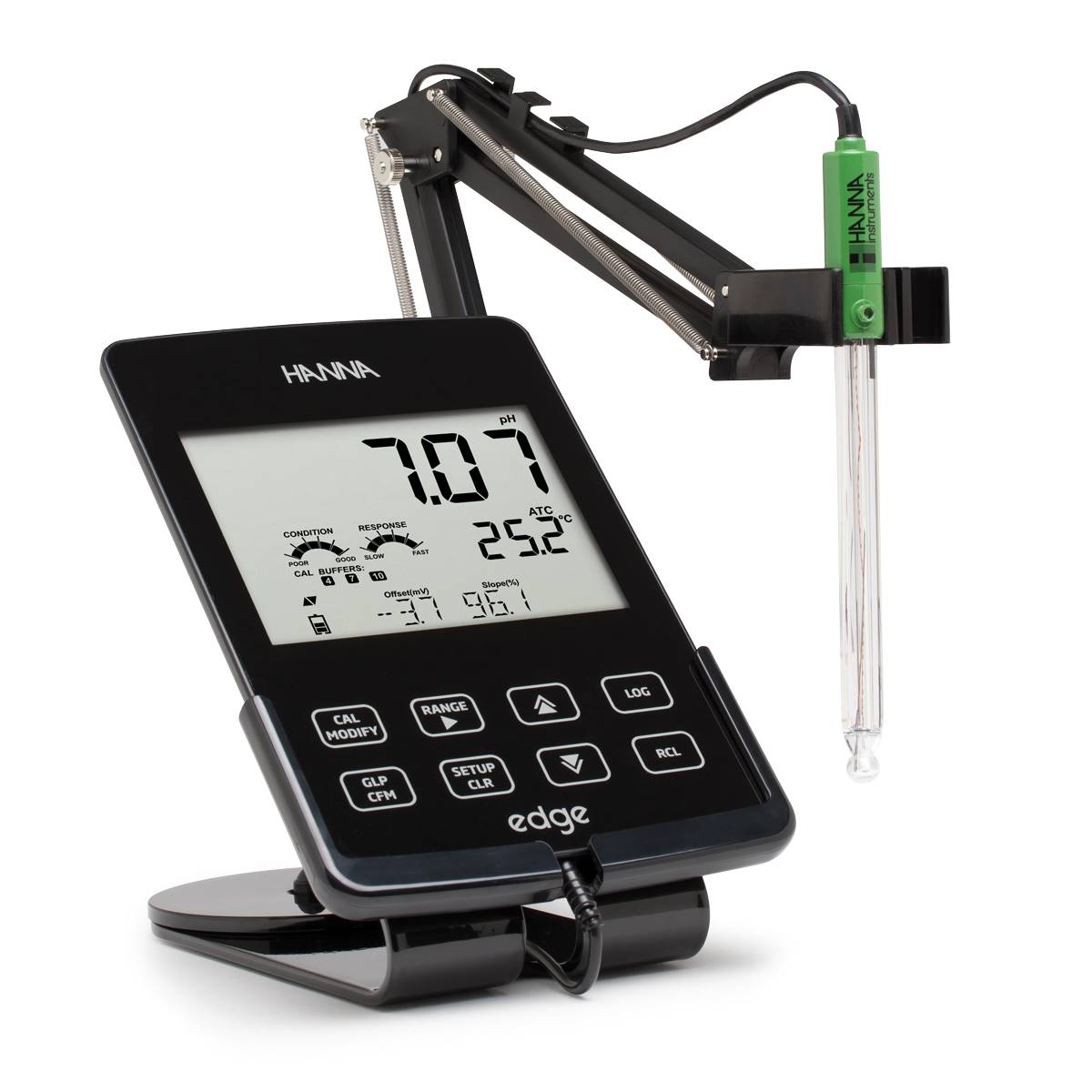

Edge® Multiparameter pH Meter delivers precision while offering simplicity and versatility in a sleek design. The electronic pH meter will automatically recognize each digital electrode, providing sensor type, calibration data and serial number. Advanced pH electrode diagnostics ensure worry-free measurements. Usse your mulitparameter pH meter as a portable, benchtop meter, or mount it on a wall to save space.
|
Features:
- Large dsplay with wide 150° viewing angle
-
- Setup and Calibrate the meter in no time with as little as 1-point calibration
- Great for use in business and educational laboratories worldwide
- Highly advanced digital electrodes featuring built-in microchip for calibration storage
- Equipped with Matching pin, Edge® constantly checks impedance of the pH measuring electrode
- 3.5 mm Probe Input/li>
- Wall Mount
Technical Specs:
 |
-
- Specifications
-
| -
-
| -
- 4HA2020-01 Edge® Multiparameter pH Meter
-
| -
- pH Ranges:
-
| -
-
| -
- -2.000 to 16.000, -2.00 to 16.00 ±1000 mv
-
| -
- pH Resolution:
-
-
| -
-
| -
- 0.001 pH, 0.01 pH 0.1 mV
-
-
| -
- pH Accuracy (@ 25°C / +77°F)
-
-
| -
-
| -
- ±0.1 pH, ±0.002 pH ±0.2 mV
-
-
| -
- pH Calibration:
-
-
| -
-
| -
- Automatic, up to 3 points (5 points*) calibration, 5 standard (7 standard*) buffers available (1.68*, 4.01 or 3.00, 6.86, 7.01, 9.18, 10.01, 12.45*) and 2 custom buffers*
-
-
| -
- pH Temperature Compensation:
-
-
| -
-
| -
- Automatic -5 to 100°C (23 to 212°F) using integral temperature sensor
-
| -
- Temperature Accuracy @ 25°C / 77°F:
-
-
| -
-
| -
- ±0.5°C
-
-
| -
- Temperature Calibration:
-
-
| -
-
| -
- Automatic from 0 to 70°C with B=2% / °C
-
-
| -
- EC Range:
-
-
| -
-
| -
- 0.00 to 29.99 µS/cm, 3.00 to 29.99 µS/cm, 30.0 to 299.9 µS/cm, 300 to 2999 9µS/cm,, 3.00 to 29.99 mS/cm, 30.0 to 200 mS/cm, up to 500.0 mS/cm
-
-
| -
EC Resolution:-
-
| -
-
| -
- 0.01 µS/cm, 00.1 µS/cm, 0.01 µS/cm,, 0.0` mS/cm, 00.1 mS/cm
-
- EC Accuracy:
-
| -
-
| -
-
- ±1% of reading (±0.05 µS/cm or 1 digit, whichever is greater)
-
| -
- EC Calibration:
-
| -
-
| -
-
- 1 Cell Factor calibration 6 standards available: 84, 1413 µS/cm, 5.00, 12.88, 80.00 111.8 mS/cm, 1 point offset; 0.00<µS/cm
-
| -
- TDS Range:
-
-
| -
-
| -
- 0.00 to 14.99 ppm (mg/L), 15.0 to 149.9 ppm (mg/L), 150, to 1499. ppm (mg/L), 1.50 to to 14.99 g/L, 15.0 to 100.0 g/L, up to 400.0 g/L (absolute TDS (with 0.80 factor)
-
-
| -
- TDS Resolution:
-
-
| -
-
| -
-
- 0.01 ppm, 0.1 ppm, 1 ppm, 0.01 g/L, 0.1 g/L
-
| -
- TDS Accuracy:
-
-
| -
-
| -
- ±1% of reading (±0.03 ppm or 1 digit, whichever is greater)
-
-
| -
- TDS Calibration:
-
-
| -
-
| -
- Through EC Calibration
-
| -
- EC / TDS Temperature Compensation:
-
-
| -
-
| -
- Automatic -5 to 1000°C (23 to 2120°F) NoTC - can be selected to measure absolute conductivity,
-
-
| -
- Temperature Accuracy:
-
-
| -
-
| -
- ±0.5°C, ±1.0°F
-
-
| -
- pH Electrode:
-
-
| -
-
| -
- 4HA11310 glass body, refillable pH electrode with temperature sensor
-
| -
-
- EC / TDS Probe:
-
-
| -
-
| -
- 4HA763100 EC / Temperature Probe
-
-
| -
- DO Probe:
-
-
| -
-
| -
- 4HA764080 DO / Temperature Probe
-
| -
- Power Supply:
-
-
| -
-
| -
- 5 Vdc adapter (included)br />
-
| -
- Environment:
-
-
| -
-
| -
- 0 to 50°C (32 to 122°F), RH max 95% non-condensing
-
| -
- Dimensions:
-
-
| -
-
| -
- 202 x 140 x 12.7 mm (8.0 x 5.5 x 0.5 in.)
-
-
- Weight:
-
-
| -
-
| -
- 250 g (8.82 oz)
-
| -
- Ordering Information:
-
-
| -
-
| -

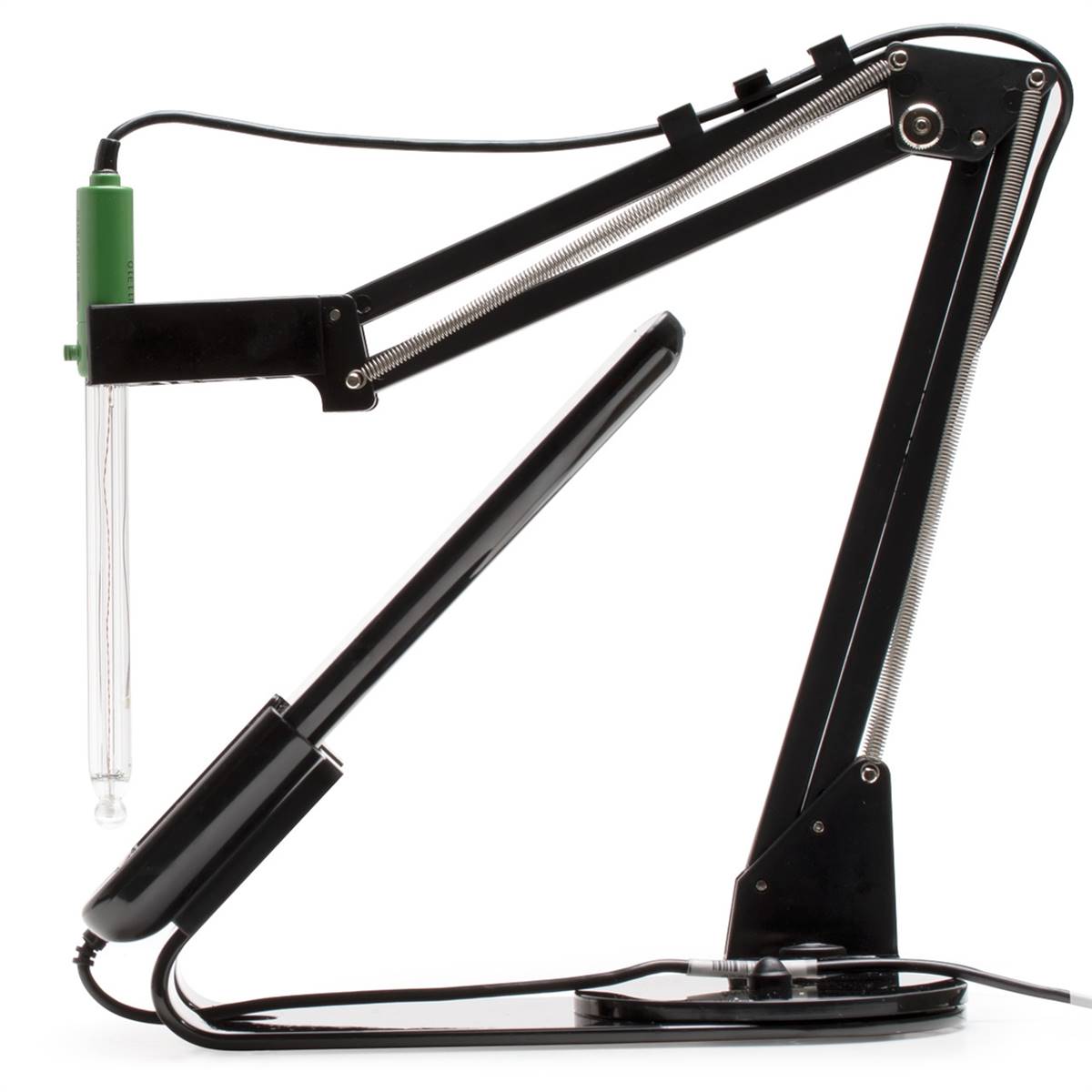

- 4HA2020 pH Kit includes: 4HA11310 glass body, refillable pH electrode with temperature sensor, pH 4, pH 7, pH 10 buffer sachets, electrode cleaning solution sachets, USB Cable, Bench-top docking station with electrode holder, wall mount cradle, 5 Vdc power adapter, Quality Certificate, Instruction Manual
-
| -
- Special Notes:
-
-
| -
-
| -
- Absolute conductivity *temperature limits will be reduced to actual probe/sensor limits ** with temperature compensation fuction disabled. Available for purchase separately.
-
| -
- Warranty:
-
-
| -
-
| -
- 2 years
-
| | |
