pH/ORP/Temperature Combo Tester
pH/ORP/Temperature Combo Tester

Alternative Views:




  • User Manual & Documentation:

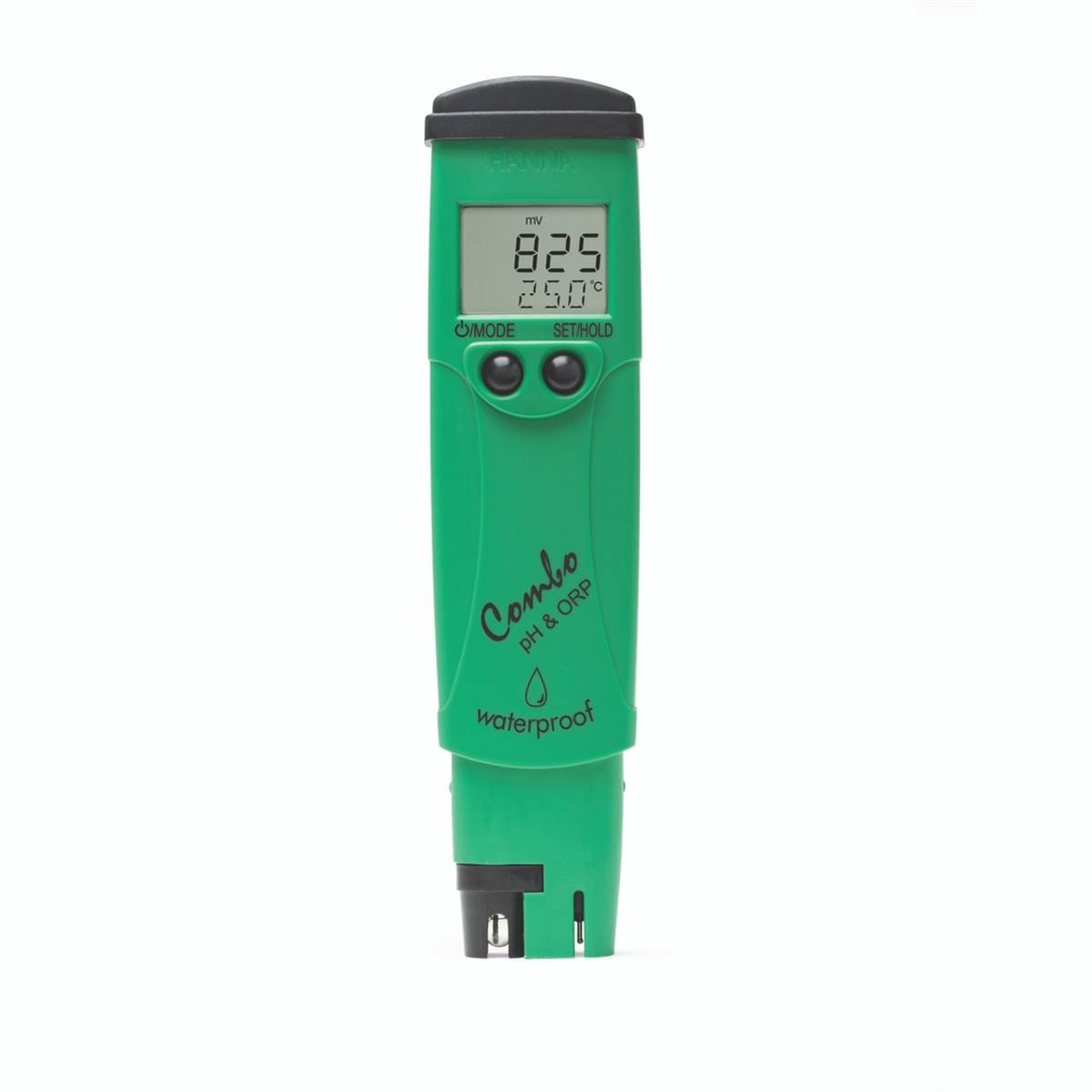

    The 4HA98121 is a lightweight ergonomically designed tester. This pH and ORP tester is designed to float making it ideal for taking ORP measurements virtually anywhere. With the 4HA98121 it is possible to monitor both pH and ORP at the same time. The 4HA98121 is commonly used to monitor pH and chlorine for many applications including swimming, food sanitization, plating wastewater treatment, and cooling tower water treatment.

    By definition pH is the measurement of the voltage generated by an electrochemical cell at zero current. The potential generated is proportional to the thermodynamic activity of the ion being measured.

    Similar to a pH measurement that quantifies the how acidic or alkaline solutions are, ORP (Oxidation Potential) measurements quantify the overall state of a solution as having the ability to oxidize or reduce a chemical species. Oxidizing and reducing reagents are used to participate in chemical reactions known as a redox reaction.

    An ORP meter must be chemically inert; it cannot be oxidized or reduced itself. It must also have the proper surface characteristics to promote rapid electron exchange, a property known as high exchange current density. Two noble metals have proven to work well for this purpose: pure platinum and pure gold are both used in the construction of ORP sensors.

    Item# Item Name Item Price Qty Add
    4HA98121 pH/ORP/Temperature Combo Tester
    $300.00
    Check the items you wish to purchase, then click


  • Features:
      • 0.01 pH Resolution / ±2.0 mV Accuracy


      • Compact design fits right in your pocket so you can take it anywhere


      • Replaceable pH electrode extends the life of your tester for years


      • Expanded pH range from -2.00 to 16.00 pH


      • Automatic Temperature Compensation


      • Designed to float making it ideal for ORP measurements anywhere


      • Great for pools, sanitizers, wastewater & industrial




    Technical Specs:
    • Specifications
    • 4HA98121 pH / ORP / Temperature Combo Tester
    • pH Ranges:
    • -2.00 to 16.00 pH
    • pH Resolution:

    • 0.01 pH

    • pH Accuracy (@ 25°C / +77°F)

    • ±0.05 pH

    • pH Calibration:

    • Automatic, one or two-point with two sets of standard buffers (pH 4.01 / 7.01 /10.01 or 4.01 / 6.86./ 9.18 pH)

    • pH Temperature Compensation:

    • Automatic for pH readings

    • ORP Range:

    • ± 1000 mV
    • ORP Resolution:

      		• 1 mV

    • ORP Accuracy:

    • ±2 mV

    • ORP Calibration:

    • Factory Calibrated
    • Temperature Range:

    • -5.0 to 60.0°C / 23.0 to 140.0°C

    • Temperature Resolution:

    • 0.1°C (0.1°F)

    • Temperature Accuracy:

    • ±0.5°C / ±1.0°F

    • pH Electrode:

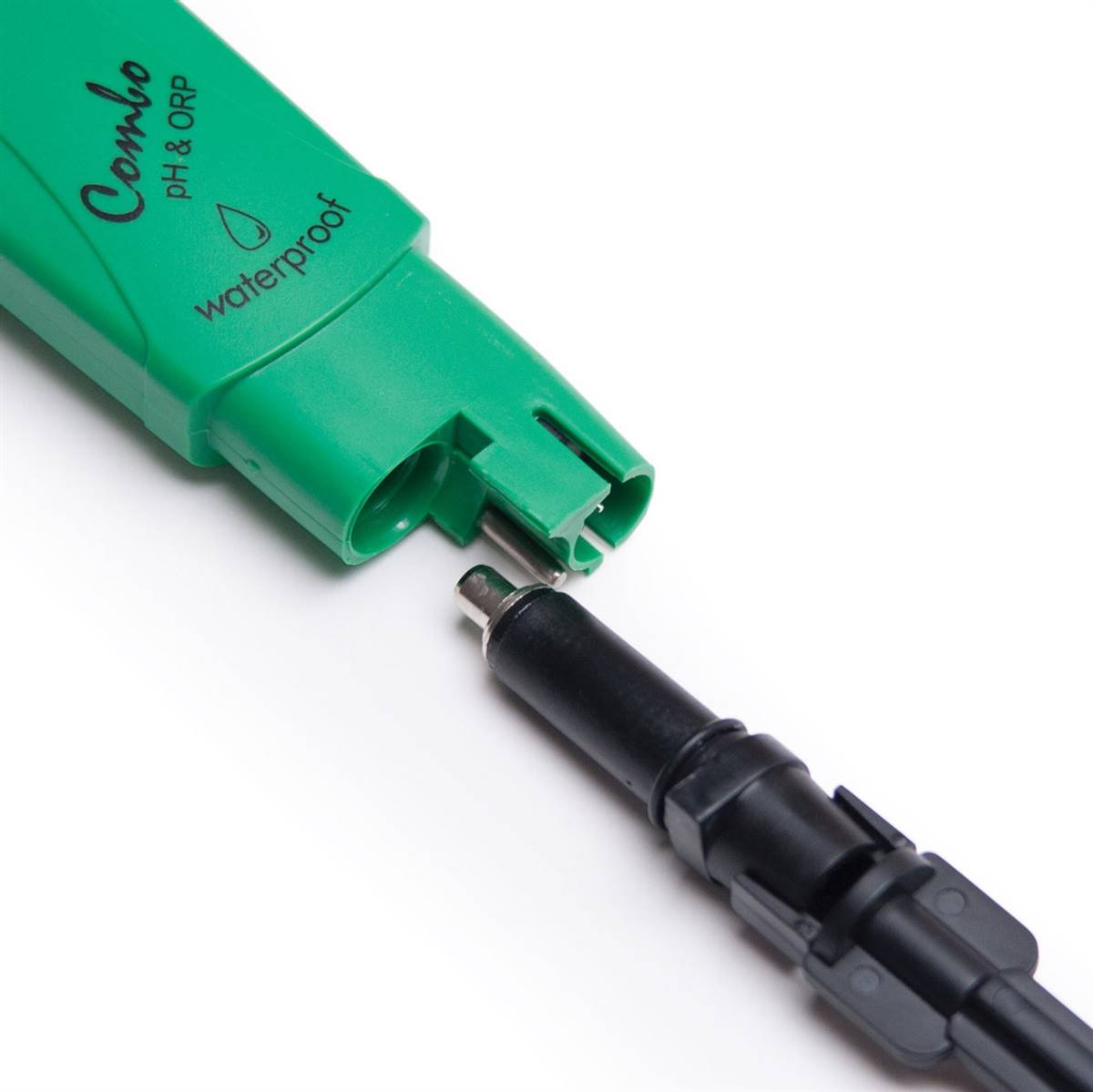

    • 4HA73127 replaceable pH Electrode (Included)

    • ORP Electrode:

      		• Fixed ORP Sensor

    • Automatic Shut-Off:

    • Auto-off after 8 minutes of non-use

    • Battery Type / Life

    • 1.5 V (4) / Approximately 250 hours of continuous use

    • Environment:

    • −5 to 50.0°C (23 to 122°F) RH max. 100%

    • Dimensions:

    • 163 x 40 x 26 mm (6.4 x 1.6 x 1.01 in.)
    • Weight:

    • 100 g (3.5 oz)
    • Ordering Information:

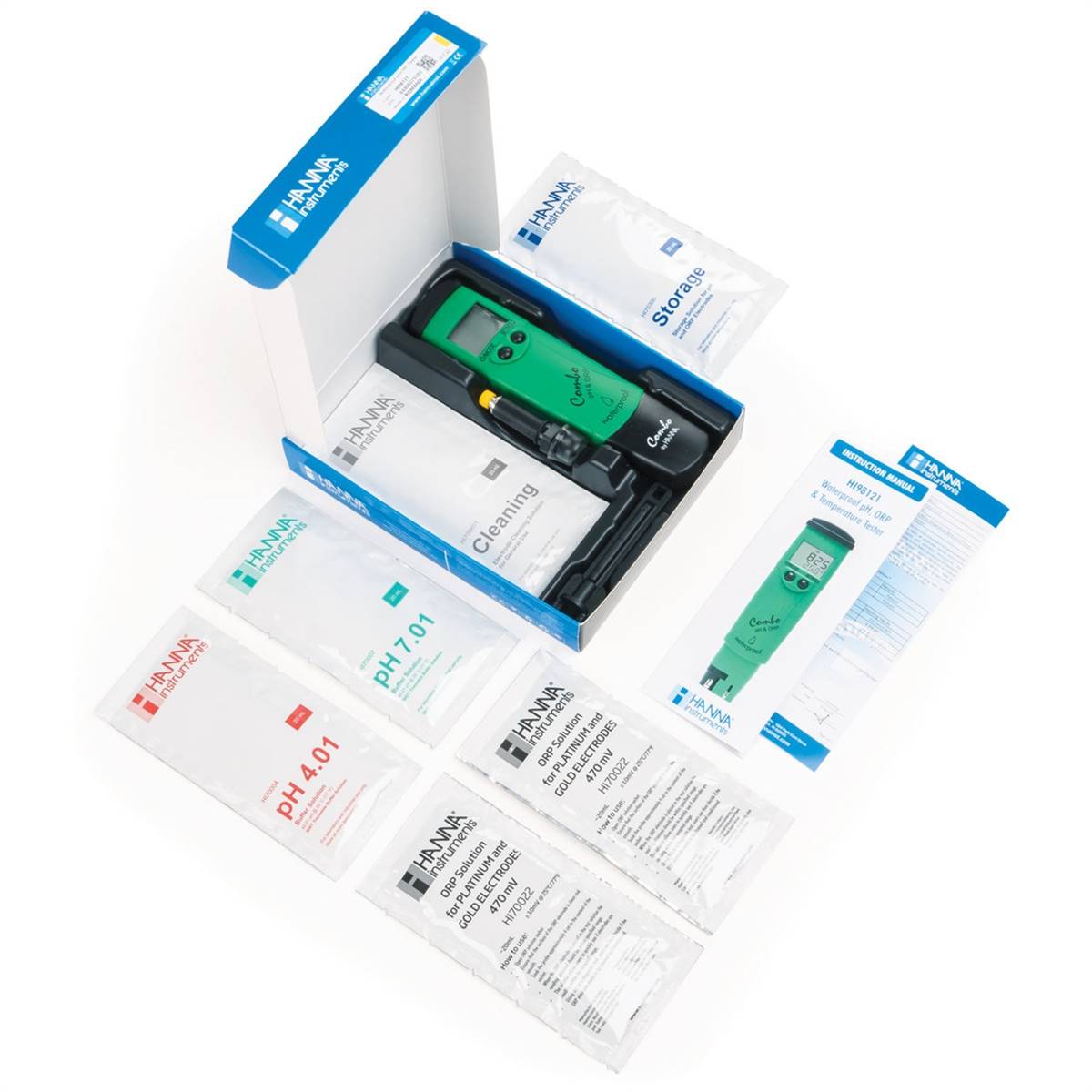

    • Supplied with pH 4.01 and pH 7.01 Buffer Solutions, 20 mL Sachets (x2 pieces each), Cleaning Solution for Brewing Deposits, 20 mL sachet (x2 pieces), Electrode Storage Solution, 13 mL Dropper Bottle (x 1 piece), 3V Lithium Battery - CR2032,Quality Certificate and Instruction Manual

    • Notes:

    • *Available with Hanna Lab App
    • **Measuring outside the recommended operating temperature range may damage the gel electrolyte and void product warranty.
    • Tester can display measurements from -2.00 to 16.00 pH.
    • Measurements outside of the pH range will flash, users should access the integrity of the tester and the type of measured sample.
