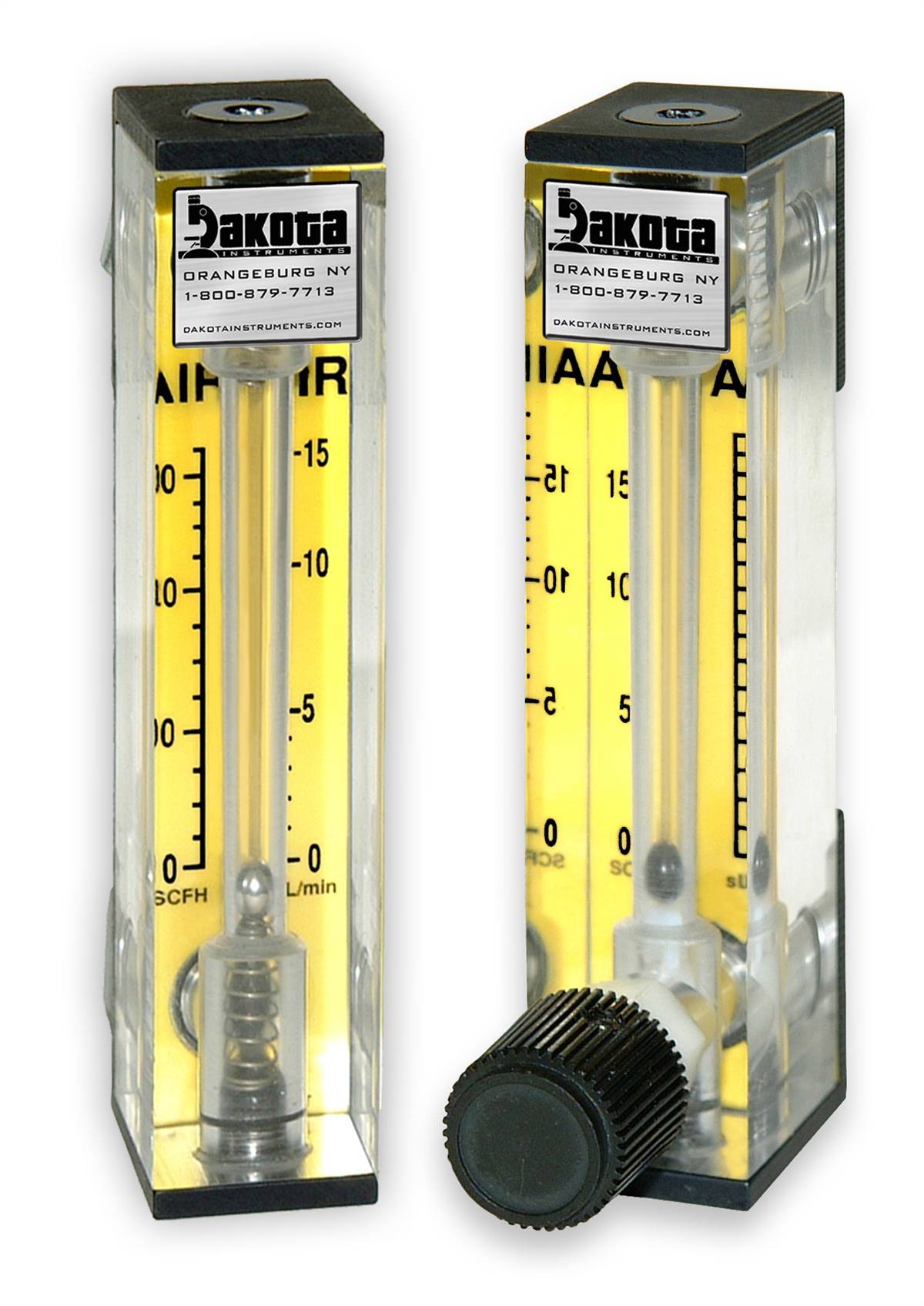

Available for multiple flow rates, this Acrylic Flow Meter has a Dual Direct Reading Scale with yellow backing for easy viewing of Air flow values. Viton® Seals, 1/8" FNPT and Brass End fittings are standard. The float material varies based on the metering range (316 SS, Carboloy, Glass).
| Item# |
Item Name |
Item Price |
Qty |
Add |
| 6A0101BN-AB |
Air Flow Meter - Acrylic, Brass Fittings - 1.4 LPM/2.8 SCFH Air, Glass Float, No Valve |
|
|
|
| 6A0101BV-AB |
Air Flow Meter - Acrylic, Brass Fittings - 1.4 LPM/2.8 SCFH Air, Glass Float, Valve |
|
|
|
| 6A0109BN-AB |
Air Flow Meter - Acrylic, Brass Fittings - 16 LPM/32.5 SCFH Air, 316 Stainless Steel Float, No Valve |
|
|
|
| 6A0109BV-AB |
Air Flow Meter - Acrylic, Brass Fittings - 16 LPM/32.5 SCFH Air, 316 Stainless Steel Float, Valve |
|
|
|
| 6A0103BN-AB |
Air Flow Meter - Acrylic, Brass Fittings - 2.5 LPM/5.5 SCFH Air, 316 Stainless Steel Float, No Valve |
|
|
|
| 6A0103BV-AB |
Air Flow Meter - Acrylic, Brass Fittings - 2.5 LPM/5.5 SCFH Air, 316 Stainless Steel Float, Valve |
|
|
|
| 6A0111BN-AB |
Air Flow Meter - Acrylic, Brass Fittings - 22 LPM/45 SCFH Air, Carboloy Float, No Valve |
|
|
|
| 6A0111BV-AB |
Air Flow Meter - Acrylic, Brass Fittings - 22 LPM/45 SCFH Air, Carboloy Float, Valve |
|
|
|
| 6A0105BN-AB |
Air Flow Meter - Acrylic, Brass Fittings - 3.5 LPM/7.0 SCFH Air, Carboloy Float, No Valve |
|
|
|
| 6A0105BV-AB |
Air Flow Meter - Acrylic, Brass Fittings - 3.5 LPM/7.0 SCFH Air, Carboloy Float, Valve |
|
|
|
| 6A0113BN-AB |
Air Flow Meter - Acrylic, Brass Fittings - 50.0 LPM/100.0 SCFH Air, 316 Stainless Steel Float, No Valve |
|
|
|
| 6A0113BV-AB |
Air Flow Meter - Acrylic, Brass Fittings - 50.0 LPM/100.0 SCFH Air, 316 Stainless Steel Float, Valve |
|
|
|
| 6A0107BN-AB |
Air Flow Meter - Acrylic, Brass Fittings - 8.5 LPM/18.0 SCFH Air, Glass Float, No Valve |
|
|
|
| 6A0107BV-AB |
Air Flow Meter - Acrylic, Brass Fittings - 8.5 LPM/18.0 SCFH Air, Glass Float, Valve |
|
|
|
| Check the items you wish to purchase, then click
|
|
Features:
- Yellow Backed Scales in English or Metric Measures
- Customer Convertible Panel to Partial or Full In-Line Mounted Configurations
- Available With or Without Built-in Low Hysteresis Needle Valves
- Simple Dis-assembly and Assembly for Cleaning
- Stable, Easy to Read Float
Technical Specs:
-
- Specifications
-
| -
-
| -
- 6A01 Acrylic Flow Meters
-
| -
- Accuracy:
-
| -
-
| -
- +/- 5% of Full Scale reading
-
| -
- Maximum Temperature:
-
| -
-
| -
- 65° C (150° F)
-
| -
- Maximum Pressure:
-
| -
-
| -
- 6.9 bars (100 psig)
-
| -
- Meter Block:
-
| -
-
| -
- Clear, Machined Acrylic
-
| -
- Float Materials:
-
| -
-
| -
- Black Glass, Stainless Steel, Tungsten Carbide (Carboloy®)
-
| -
- O-Ring Seals:
-
| -
-
| -
- Viton®
-
| -
- Fittings:
-
| -
-
| -
- Brass or 316 Stainless Steel 1/8" NPT Female Connections, Built-in Needle Valves & Seal Plugs
-
|
