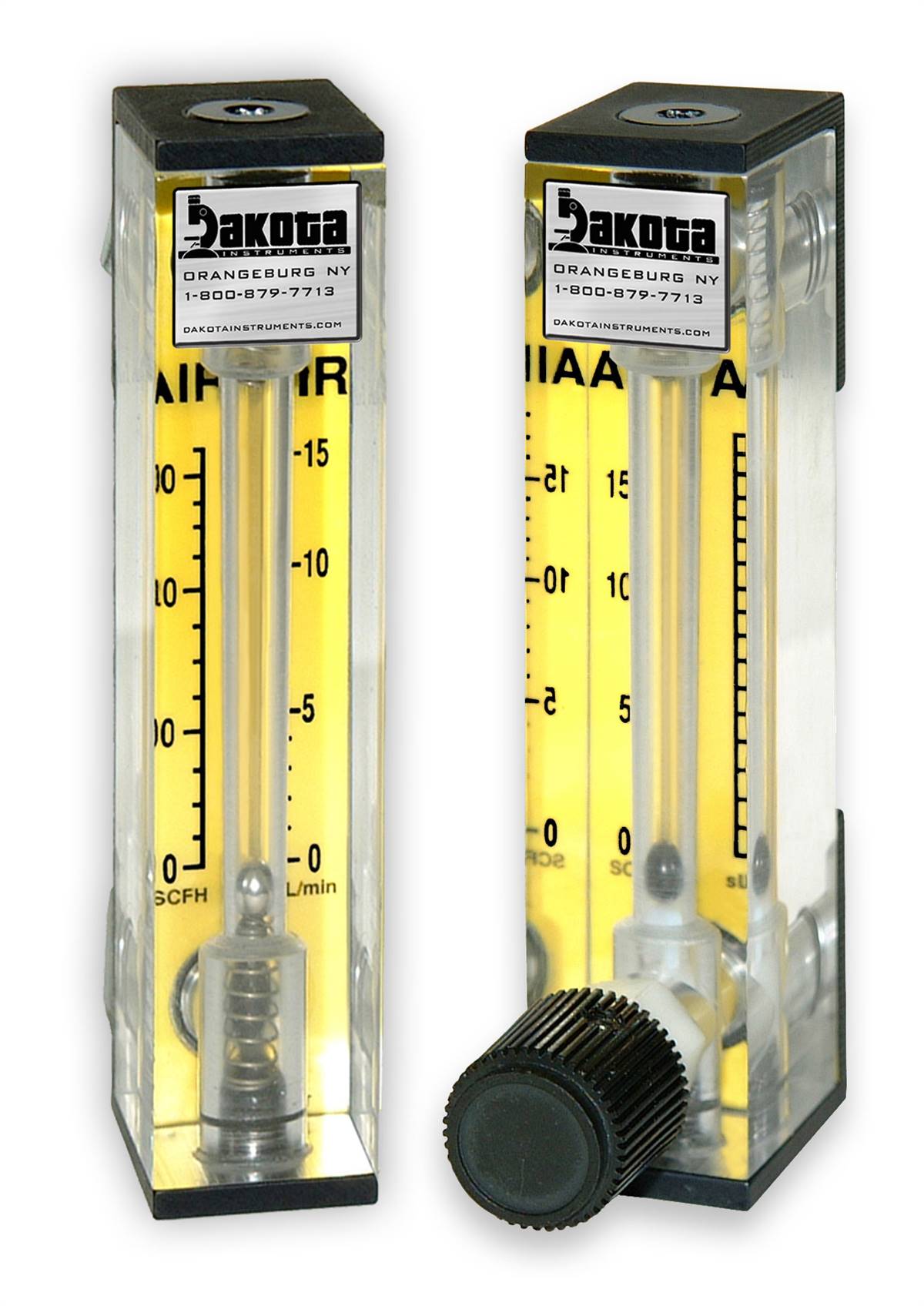

Available for multiple flow rates, this Acrylic Flow Meter has a Dual Direct Reading Scale with yellow backing for easy viewing of Air flow values. Viton® Seals, 1/8" FNPT and
Stainless Steel End fittings are standard. The float material varies based on the metering range (316 SS, Carboloy, Glass).
| Item# |
Item Name |
Item Price |
Qty |
Add |
| 6A0101SV-AB |
Air Flow Meter - Acrylic, Stainless Fittings - 1.4 LPM/2.8 SCFH Air, Glass Float, Valve |
|
|
|
| 6A0109SN-AB |
Air Flow Meter - Acrylic, Stainless Fittings - 16 LPM/32.5 SCFH Air, 316 Stainless Steel Float, No Valve |
|
|
|
| 6A0109SV-AB |
Air Flow Meter - Acrylic, Stainless Fittings - 16 LPM/32.5 SCFH Air, 316 Stainless Steel Float, Valve |
|
|
|
| 6A0103SN-AB |
Air Flow Meter - Acrylic, Stainless Fittings - 2.5 LPM/5.5 SCFH Air, 316 Stainless Steel Float, No Valve |
|
|
|
| 6A0103SV-AB |
Air Flow Meter - Acrylic, Stainless Fittings - 2.5 LPM/5.5 SCFH Air, 316 Stainless Steel Float, Valve |
|
|
|
| 6A0111SN-AB |
Air Flow Meter - Acrylic, Stainless Fittings - 22 LPM/45 SCFH Air, Carboloy Float, No Valve |
|
|
|
| 6A0111SV-AB |
Air Flow Meter - Acrylic, Stainless Fittings - 22 LPM/45 SCFH Air, Carboloy Float, Valve |
|
|
|
| 6A0105SN-AB |
Air Flow Meter - Acrylic, Stainless Fittings - 3.5 LPM/7.0 SCFH Air, Carboloy Float, No Valve |
|
|
|
| 6A0105SV-AB |
Air Flow Meter - Acrylic, Stainless Fittings - 3.5 LPM/7.0 SCFH Air, Carboloy Float, Valve |
|
|
|
| 6A0113SN-AB |
Air Flow Meter - Acrylic, Stainless Fittings - 50.0 LPM/100.0 SCFH Air, 316 Stainless Steel Float, No Valve |
|
|
|
| 6A0113SV-AB |
Air Flow Meter - Acrylic, Stainless Fittings - 50.0 LPM/100.0 SCFH Air, 316 Stainless Steel Float, Valve |
|
|
|
| 6A0107SN-AB |
Air Flow Meter - Acrylic, Stainless Fittings - 8.5 LPM/18.0 SCFH Air, Glass Float, No Valve |
|
|
|
| 6A0107SV-AB |
Air Flow Meter - Acrylic, Stainless Fittings - 8.5 LPM/18.0 SCFH Air, Glass Float, Valve |
|
|
|
| 6A0101SN-AB |
Air Flow Meter - Acrylic, Stainless Steel Fittings -1.4 LPM/2.8 SCFH Air, Glass Float, No Valve |
|
|
|
| Check the items you wish to purchase, then click
|
|
Features:
- Yellow Backed Scales in English or Metric Measures
- Customer Convertible Panel to Partial or Full In-Line Mounted Configurations
- Available With or Without Built-in Low Hysteresis Needle Valves
- Simple Dis-assembly and Assembly for Cleaning
- Stable, Easy to Read Float
Technical Specs:
| Specifications | | 6A01 Acrylic Flow Meters | | Accuracy: | | +/- 5% of Full Scale reading | Maximum Temperature:
| | 65° C (150° F)
| Maximum Pressure:
| | 6.9 bars (100 psig)
| Meter Block:
| | Clear, Machined Acrylic
| Float Materials:
| | Black Glass, Stainless Steel, Tungsten Carbide (Carboloy®)
| O-Ring Seals:
| | Viton®
| | Fittings: | | Brass or 316 Stainless Steel 1/8" NPT Female Connections, Built-in Needle Valves & Seal Plugs
|
