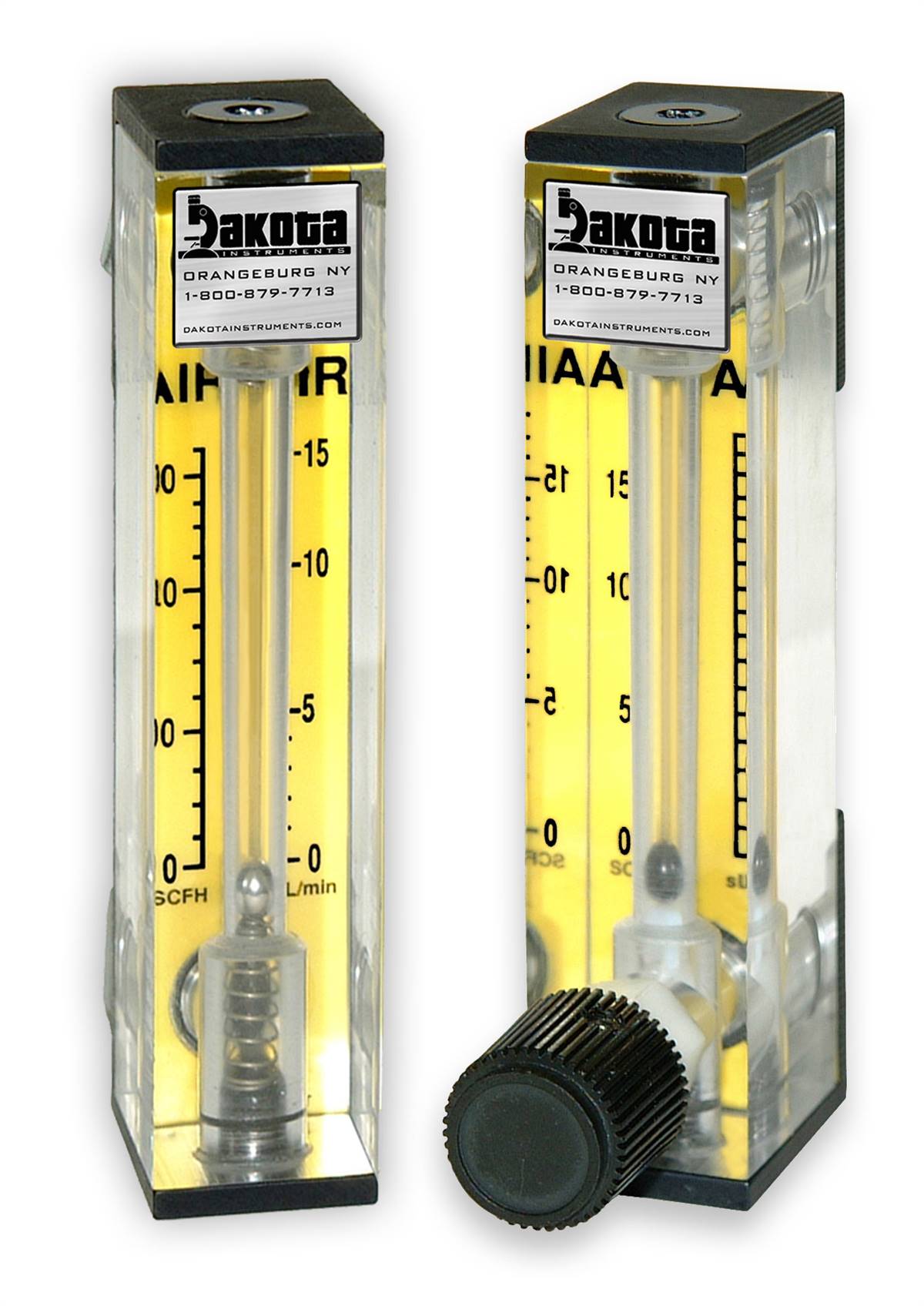

Available for multiple flow rates, this Acrylic Flow Meter has a Dual Direct Reading Scale with yellow backing for easy viewing of Oxygen flow values. Viton® Seals, 1/8" FNPT and Brass End fittings are standard. The float material varies based on the metering range (316 SS, Carboloy, Glass) Available for metering flow rates from 1.1 LPM (2.5 SCFH) to 45 LPM (90 SCFH)..
| Item# |
Item Name |
Item Price |
Qty |
Add |
| 6A0101BN-OB |
Oxygen Flow Meter - Acrylic, Brass Fittings - 1.1 LPM/2.5 SCFH Oxygen, Glass Float, No Valve |
|
|
|
| 6A0101BV-OB |
Oxygen Flow Meter - Acrylic, Brass Fittings - 1.1 LPM/2.5 SCFH Oxygen, Glass Float, Valve |
|
|
|
| 6A0109BN-OB |
Oxygen Flow Meter - Acrylic, Brass Fittings - 15.0 LPM/30.0 SCFH Oxygen, 316 Stainless Steel Float, No Valve |
|
|
|
| 6A0109BV-OB |
Oxygen Flow Meter - Acrylic, Brass Fittings - 15.0 LPM/30.0 SCFH Oxygen, 316 Stainless Steel Float, Valve |
|
|
|
| 6A0103BN-OB |
Oxygen Flow Meter - Acrylic, Brass Fittings - 2.5 LPM/5.0 SCFH Oxygen, 316 Stainless Steel Float, No Valve |
|
|
|
| 6A0103BV-OB |
Oxygen Flow Meter - Acrylic, Brass Fittings - 2.5 LPM/5.0 SCFH Oxygen, 316 Stainless Steel Float, Valve |
|
|
|
| 6A0111BN-OB |
Oxygen Flow Meter - Acrylic, Brass Fittings - 20.0 LPM/42.5 SCFH Oxygen, Carboloy Float, No Valve |
|
|
|
| 6A0111BV-OB |
Oxygen Flow Meter - Acrylic, Brass Fittings - 20.0 LPM/42.5 SCFH Oxygen, Carboloy Float, Valve |
|
|
|
| 6A0105BN-OB |
Oxygen Flow Meter - Acrylic, Brass Fittings - 3.5 LPM/7.0 SCFH Oxygen, Carboloy Float, No Valve |
|
|
|
| 6A0105BV-OB |
Oxygen Flow Meter - Acrylic, Brass Fittings - 3.5 LPM/7.0 SCFH Oxygen, Carboloy Float, Valve |
|
|
|
| 6A0113BN-OB |
Oxygen Flow Meter - Acrylic, Brass Fittings - 45.0 LPM/90.0 SCFH Oxygen, 316 Stainless Steel Float, No Valve |
|
|
|
| 6A0113BV-OB |
Oxygen Flow Meter - Acrylic, Brass Fittings - 45.0 LPM/90.0 SCFH Oxygen, 316 Stainless Steel Float, Valve |
|
|
|
| 6A0107BN-OB |
Oxygen Flow Meter - Acrylic, Brass Fittings - 8.0 LPM/16.0 SCFH Oxygen, Glass Float, No Valve |
|
|
|
| 6A0107BV-OB |
Oxygen Flow Meter - Acrylic, Brass Fittings - 8.0 LPM/16.0 SCFH Oxygen, Glass Float, Valve |
|
|
|
| Check the items you wish to purchase, then click
|
|
Features:
- Yellow Backed Scales in English or Metric Measures
- Customer Convertible Panel to Partial or Full In-Line Mounted Configurations
- Available With or Without Built-in Low Hysteresis Needle Valves
- Simple Dis-assembly and Assembly for Cleaning
- Stable, Easy to Read Float
Technical Specs:
-
- Specifications
-
| -
-
| -
- 6A01 Acrylic Flow Meters
-
| -
- Accuracy:
-
| -
-
| -
- +/- 5% of Full Scale reading
-
| -
- Maximum Temperature:
-
| -
-
| -
- 65° C (150° F)
-
| -
- Maximum Pressure:
-
| -
-
| -
- 6.9 bars (100 psig)
-
| -
- Meter Block:
-
| -
-
| -
- Clear, Machined Acrylic
-
| -
- Float Materials:
-
| -
-
| -
- Black Glass, Stainless Steel, Tungsten Carbide (Carboloy®)
-
| -
- O-Ring Seals:
-
| -
-
| -
- Viton®
-
| -
- Fittings:
-
| -
-
| -
- Brass or 316 Stainless Steel 1/8" NPT Female Connections, Built-in Needle Valves & Seal Plugs
-
|
