Oxygen Flow Meter 2000 LPM (70 SCFM) - Acrylic, Polypropylene Fittings, No Valve (6A0311PN-OB)
Oxygen Flow Meter 2000 LPM (70 SCFM) - Acrylic, Polypropylene Fittings, No Valve (6A0311PN-OB)

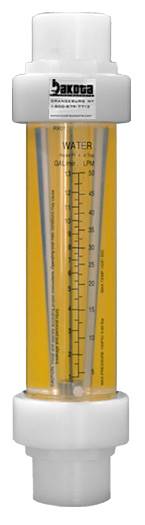

This Acrylic Flowmeter has a Dual Direct Reading Scale with yellow backing for easy viewing of Oxygen flow values. Viton Seals, 3/4" FNPT and Polypropylene End fittings are standard. The float/guide material is 316 Stainless Steel.  This Flowmeter is designed for inline mounting and can handle a Maximum Flow Rate of 2000 LPM (70 SCFM).   No Valve.



Features:


    • Yellow Backed Scales in English or Metric Measures


    • In-Line Mount


    • No Valve


    • Simple Dis-assembly and Assembly for Cleaning


    • Stable, Easy to Read Float


    • Optional scales can be developed for diverse low flow conditions, facilitating OEM applications




Technical Specs:
  • Specifications
  • 6A0311PN-OB
  • Accuracy:
  • +/- 5% of Full Scale reading
  • Maximum Temperature:

  • 54
  • ° C (130° F)
  • Maximum Pressure:

  • 6.89 bars (100 psig)

  • Maximum Flow Rate:

  • 2000 LPM (70 SCFM)
  • Body:

  • Optical, Clear, Cast Acrylic

  • Float & Guide

  • 316 Stainless Steel

  • O-Rings:

  • Viton®

  • Connections:
  • Polypropylene 3/4" NPT Female Connections

  • Valve Parts:
  • Brass
