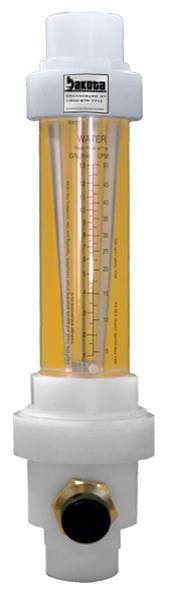

H20 Flow Meter 50 LPM (13 GPM) - Acrylic, Polypropylene Fittings, Valve Included (6A0311PV-WA)
H20 Flow Meter 50 LPM (13 GPM) - Acrylic, Polypropylene Fittings, Valve Included (6A0311PV-WA)

This Acrylic Flowmeter with Valve has a Dual Direct Reading Scale with yellow backing for easy viewing of H20 flow values. Viton Seals, 3/4" FNPT and Polypropylene End fittings are standard. The float/guide material is 316 Stainless Steel.  This Flowmeter is designed for inline mounting and can handle a Maximum Flow Rate of 50 LPM (13 GPM).



Technical Specs:
  • Specifications
  • 6A0311PN-WA
  • Accuracy:
  • +/- 5% of Full Scale reading
  • Maximum Temperature:

  • 54
  • ° C (130° F)
  • Maximum Pressure:

  • 6.89 bars (100 psig)

  • Maximum Flow Rate:

    		•
  • 50 LPM (13 GPM)
  • Body:

  • Optical, Clear, Cast Acrylic

  • Float & Guide

  • 316 Stainless Steel

  • O-Rings:

  • Viton®

  • Connections:
  • Polypropylene 3/4" NPT Female Connections

  • Valve Parts:
  • Brass
