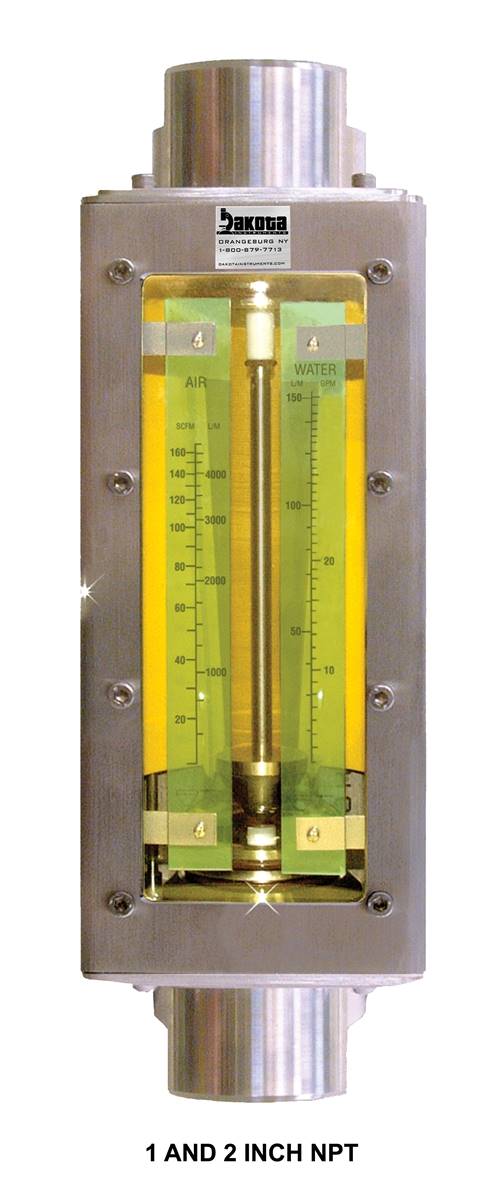

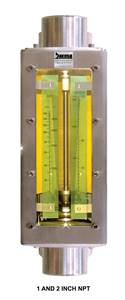

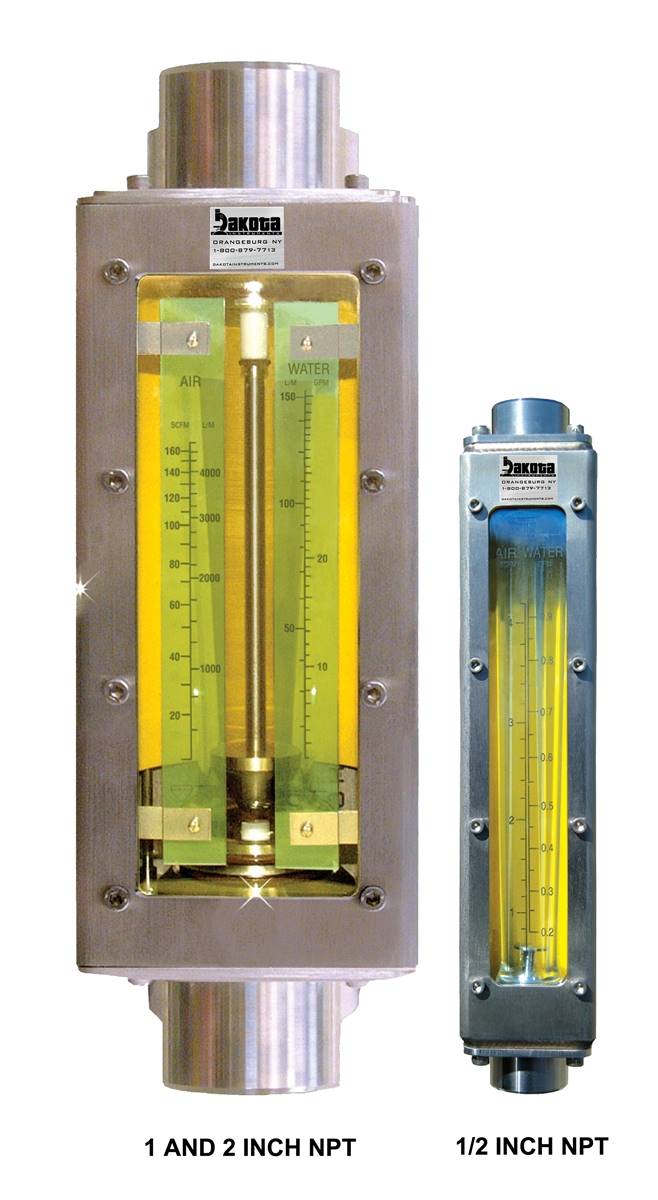

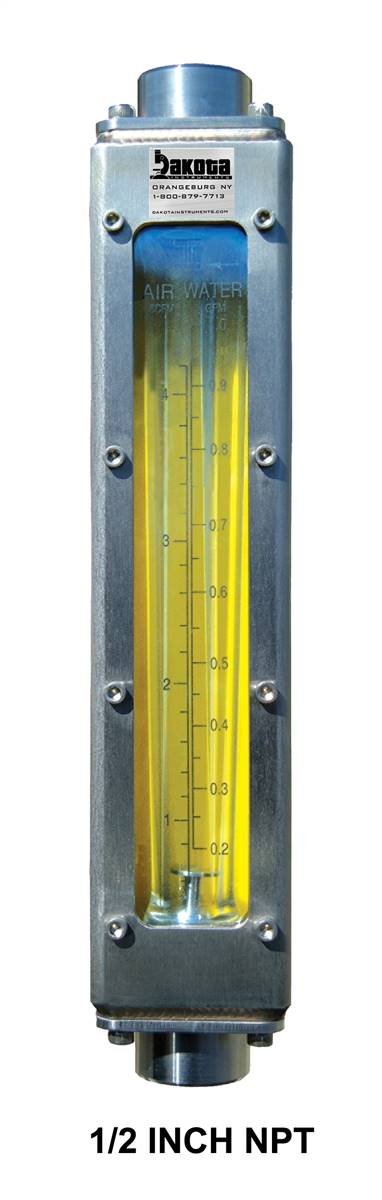

Industrial Stainless Steel In-Line Flow Meter, NPT Connector, No Valve (M Meter)
Industrial Stainless Steel In-Line Flow Meter, NPT Connector, No Valve (M Meter)

Alternative Views:
Heavy-duty flow meters are fully enclosed in a brushed stainless steel case.  Ideal for industrial applications with flow rates of up to 116 GPM / 440 L/min and 250 SCFM / 7080 L/min.  Used for flow measurements of liquids (water) and gases (air.)  Meters are graduated for direct reading of water and air.  Wetted parts include borosilicate glass flow tubes, Viton®  O-rings and 316 Stainless Steel fittings, guide rods and float stops.  These flow meters come with FNPT end fittings.

Item# Item Name Item Price Qty Add
6AM6101MJ Maximum Flow Range: Air - 1.2 SCFM (35 SLPM) | Water - 0.25 GPM (0.95 LPM), Tube Size: 3, End Fittings: 1/2" FNPT
$549.00
6AM6102MJ Maximum Flow Range: Air - 1.7 SCFM (50 SLPM) | Water - 0.36 GPM (1.3 LPM), Tube Size: 3, End Fittings: 1/2" FNPT
$549.00
6AM6107MK Maximum Flow Range: Air - 16 SCFM (475 SLPM) | Water - 3.8 GPM (14 LPM), Tube Size: 5, End Fittings: 1" FNPT
$1,020.00
6AM6117MK Maximum Flow Range: Air - 160 SCFM (4531 SLPM) | Water - 41 GPM (155 LPM), Tube Size: 9, End Fittings: 2" FNPT
$1,900.00
6AM6118MK Maximum Flow Range: Air - 180 SCFM (5098 SLPM) | Water - 44 GPM (167 LPM), Tube Size: 8, End Fittings: 2" FNPT
$1,900.00
6AM6108MK Maximum Flow Range: Air - 21.5 SCFM (650 SLPM) | Water - 5 GPM (18 LPM), Tube Size: 5, End Fittings: 1" FNPT
$1,020.00
6AM6119MK Maximum Flow Range: Air - 245 SCFM (6938 SLPM) | Water - 60 GPM (227 LPM), Tube Size: 9, End Fittings: 2" FNPT
$1,900.00
6AM6109MK Maximum Flow Range: Air - 25.5 SCFM (725 SLPM) | Water - 6 GPM (20 LPM), Tube Size: 6, End Fittings: 1" FNPT
$1,020.00
6AM6120MK Maximum Flow Range: Air - 250 SCFM (7080 SLPM) | Water - 61 GPM (231 LPM), Tube Size: 8, End Fittings: 2" FNPT
$1,900.00
6AM6103MJ Maximum Flow Range: Air - 3.3 SCFM (90 SLPM) | Water - 0.76 GPM (3 LPM), Tube Size: 3, End Fittings: 1/2" FNPT
$549.00
6AM6110MK Maximum Flow Range: Air - 30 SCFM (900 SLPM) | Water - 7.4 GPM (27.5 LPM), Tube Size: 6, End Fittings: 1" FNPT
$1,020.00
6AM6104MJ Maximum Flow Range: Air - 4.2 SCFM (120 SLPM) | Water - 1 GPM (3.7 LPM), Tube Size: 4, End Fittings: 1/2" FNPT
$549.00
6AM6111MK Maximum Flow Range: Air - 40 SCFM (1200 SLPM) | Water - 9.6 GPM (35 LPM), Tube Size: 6, End Fittings: 1" FNPT
$1,020.00
6AM6112MK Maximum Flow Range: Air - 47.5 SCFM (1400 SLPM) | Water - 11 GPM (40 LPM), Tube Size: 6, End Fittings: 1" FNPT
$1,020.00
6AM6105MJ Maximum Flow Range: Air - 6.5 SCFM (180 SLPM) | Water - 1.5 GPM (5.6 LPM), Tube Size: 4, End Fittings: 1/2" FNPT
$549.00
6AM6113MK Maximum Flow Range: Air - 62 SCFM (1800 SLPM) | Water - 14 GPM (50 LPM), Tube Size: 6, End Fittings: 1" FNPT
$1,020.00
6AM6106MJ Maximum Flow Range: Air - 8.5 SCFM (250 SLPM) | Water - 2.2 GPM (8.2 LPM), Tube Size: 4, End Fittings: 1/2" FNPT
$549.00
6AM6115MK Maximum Flow Range: Air - 90 SCFM (2550 SLPM) | Water - 22 GPM (83 LPM), Tube Size: 8, End Fittings: 2" FNPT
$1,900.00
6AM6114MK Maximum Flow Range: Air - 90 SCFM (2600 SLPM) | Water - 20 GPM (75 LPM), Tube Size: 6, End Fittings: 1" FNPT
$1,020.00
6AM6122MK Maximum Flow Range: Water - 116 GPM (439 LPM), Tube Size: 9, End Fittings: 2" FNPT, Not available for Air
$1,900.00
6AM6116MK Maximum Flow Range: Water - 25 GPM (95 LPM), End Fittings: 1" FNPT, Not available for Air
$1,020.00
6AM6121MK Maximum Flow Range: Water - 86 GPM (326 LPM), Tube Size: 9, End Fittings: 2" FNPT, Not available for Air
$1,900.00
Check the items you wish to purchase, then click


Features:
    • Heavy duty 316 stainless steel.
    • Thick polycarbonate safety shields.
    • Fluted or plain tapered tubes.
    • Direct reading metric and English system scales.
    • Unique design faciliates ease of maintenance cleaning processes.
    • Ideal for industrial applications with flow rates of up to 116 GPM / 440 L/min and 250 SCFM / 7080 L/min.
    • Meters are graduated for direct reading of water and air.
    • FNPT connections.




Technical Specs:
  • Specifications:
  • 6AM61 Industrial Stainless Steel In-Line Flow Meter
  • Accuracy:
  • +/- 3% of full scale
  • Minimum Flow Rate:
  • Approximately 10% of maximum flow rate.

  • Repeatability:
  • +/- 0.5% of full scale
  • Maximum Pressure at 93°C (200°F):
  • 200 psig / 13.6 bar gauge (tube sizes 3, 4, 5 and 6)

  • 125 psig / 8.5 bar gauge (tube sizes 8 and 9)
  • Flow Tubes:
  • Heavy walled borosilicate glass

  • Front Shield:

  • Thick, clear, polycarbonate and white acrylic

  • Fittings in Contact with Fluids:

  • 316 Stainless Steel

  • O-rings:

  • Standard O-rings: Viton® . (Optional O-rings: PTFE/Kalrez® ; EPR)

  • Connections:

  • 3/4", 1 1/2" & 2 1/2" 150 ANSI Flanged
