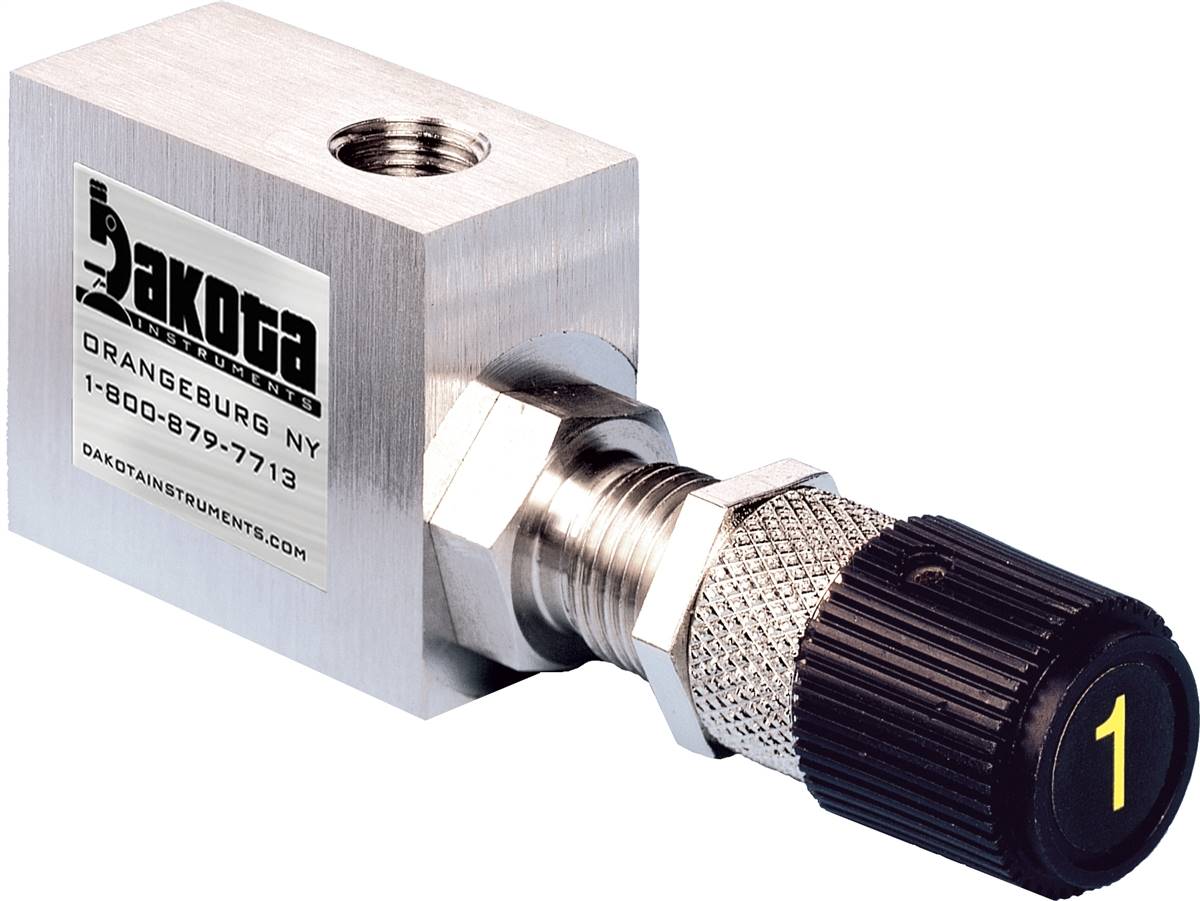

316 Stainless Steel High Precision Metering Valves are designed for gases and liquids with very low flow rates. 90 Degree Flow Pattern. Six overlapping orifice-needle sizes are available. Precision-machined valve-body is 316 Stainless Steel. Valves have a non-rising stem design and unique non-rotating needles.
| Item# |
Item Name |
Item Price |
Qty |
Add |
| 6AMV2122 |
Maximum Flow Rate: Air - 1000 mL/min, Water - 30 mL/min, 0.042 Orifice, 0.0025 Cv |
|
|
|
| 6AMV2120 |
Maximum Flow Rate: Air - 200 mL/min, Water - 6 mL/min, 0.042 Orifice, 0.0005 Cv |
|
|
|
| 6AMV2125 |
Maximum Flow Rate: Air - 21500 mL/min, Water - 650 mL/min, 0.093 Orifice, 0.054 Cv |
|
|
|
| 6AMV2123 |
Maximum Flow Rate: Air - 2500 mL/min, Water - 70 mL/min, 0.093 Orifice, 0.0061 Cv |
|
|
|
| 6AMV2121 |
Maximum Flow Rate: Air - 400 mL/min, Water - 12 mL/min, 0.042 Orifice, 0.001 Cv |
|
|
|
| 6AMV2124 |
Maximum Flow Rate: Air - 6200 mL/min, Water - 200 mL/min, 0.093 Orifice, 0.016 Cv |
|
|
|
| Check the items you wish to purchase, then click
|
|
Features:
- 16 turns to full open
- 90 degree flow patterns
- Virtually hysteresis-free (see-sawing)
- Stainless Steel high resolution
- Bubble-tight shutoff
- Panel-mountable
Technical Specs:
-
- Specifications:
-
| -
| -
- 6AMV2-S90
-
| -
- Maximum Pressure:
-
| -
| -
- 500 psig (3792 kPa)
-
| -
- Maximum Temperature:
-
| -
| -
- 250°F (121°C) Stainless Valves
-
| -
- Valve Stem:
-
| -
| -
- Sixteen turns, Non-rising Stem
-
| -
- Valve Body and Bushing:
-
| -
| -
- 316 Stainless Steel
-
| -
- Valve Needle:
-
| -
| -
- 316 Stainless Steel
-
| -
- Orifice:
-
| -
| -
- 316 Stainless Steel with PTFE or PCTFE Liner depending on models.
-
| -
- Connections:
-
| -
| -
- 1/8” Female NPT
-
| -
- O-Rings:
-
| -
| -
- Viton® (Stainless Steel Valves)
-
|
|
|
