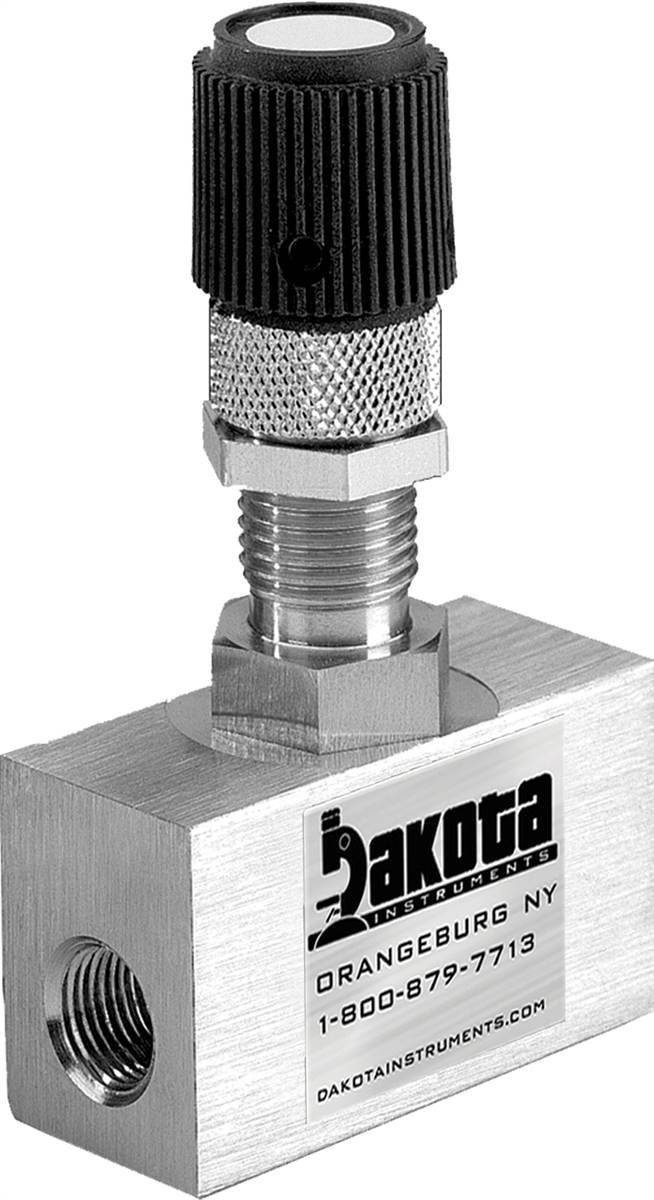

316 Stainless Steel High Precision Metering Needle Valves (MFV) are designed for gases and liquids with very low flow rates and Straight Flow Patterns. Six overlapping orifice-needle sizes are available. The precision-machined valve body is 316 Stainless Steel. Valves have a non-rising stem design and unique non-rotating needles.
| Item# |
Item Name |
Item Price |
Qty |
Add |
| 6AMV2103 |
Maximum Flow Rate: Air - 1000 mL/min, Water - 30 mL/min, 0.042 Orifice, 0.0025 Cv |
|
|
|
| 6AMV2101 |
Maximum Flow Rate: Air - 200 mL/min, Water - 6 mL/min, 0.042 Orifice, 0.0005 Cv |
|
|
|
| 6AMV2106 |
Maximum Flow Rate: Air - 21500 mL/min, Water - 650 mL/min, 0.093 Orifice, 0.054 Cv |
|
|
|
| 6AMV2104 |
Maximum Flow Rate: Air - 2500 mL/min, Water - 70 mL/min, 0.093 Orifice, 0.0061 Cv |
|
|
|
| 6AMV2102 |
Maximum Flow Rate: Air - 400 mL/min, Water - 12 mL/min, 0.042 Orifice, 0.001 Cv |
|
|
|
| 6AMV2105 |
Maximum Flow Rate: Air - 6200 mL/min, Water - 200 mL/min, 0.093 Orifice, 0.016 Cv |
|
|
|
| Check the items you wish to purchase, then click
|
|
Features:
- 16 turns to full open
- Straight flow patterns
- Virtually hysteresis-free (see-sawing)
- Stainless Steel high resolution
- Bubble-tight shutoff
Technical Specs:
-
-
| Specifications: | -
| -
| 6AMV2-SS | -
-
-
| Maximum Pressure: | -
| -
| 500 psig (3792 kPa) | -
-
-
| Maximum Temperature: | -
| -
| 250°F (121°C) Stainless Valves | -
-
-
| Valve Stem: | -
| -
| Sixteen turns, Non-rising Stem | -
-
-
| Valve Body and Bushing: | -
| -
| 316 Stainless Steel | -
-
-
| Valve Needle: | -
| -
| 316 Stainless Steel | -
-
-
| Orifice: | -
| -
| 316 Stainless Steel with PTFE or PCTFE Liner depending on model | -
-
-
| Connections: | -
| -
| 1/8” Female NPT | -
-
-
| O-Rings: | -
| -
| Viton® | -
|
|
