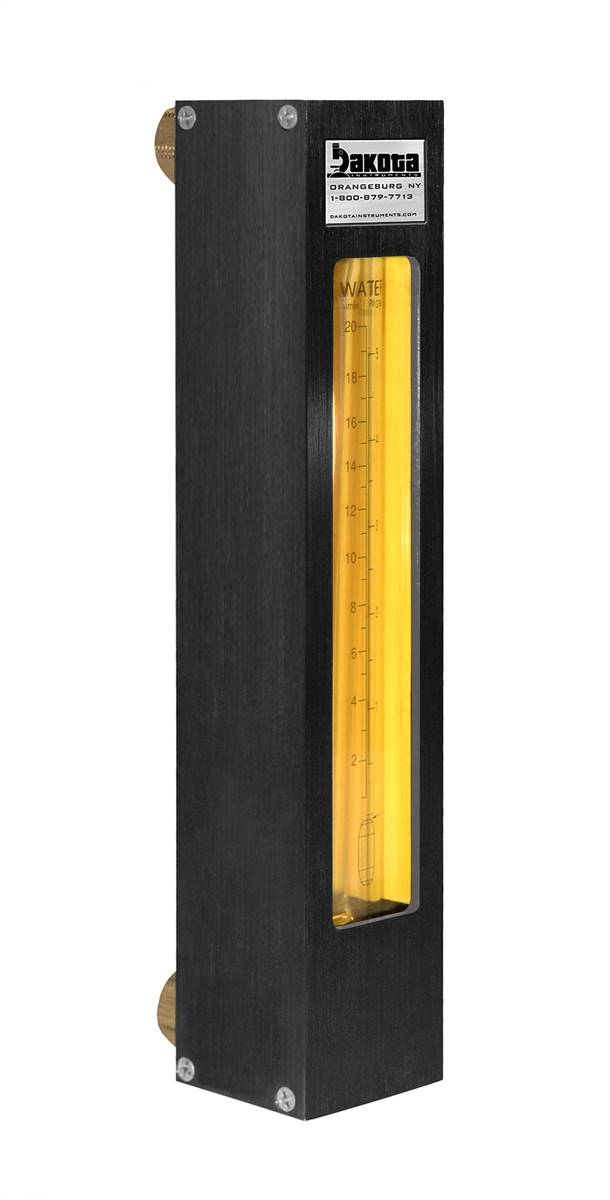

Encased Glass Tube Panel Mount Flow Meter with Valve, PTFE, PTCFE 3/8" FNPT Adapter, No Valve
Encased Glass Tube Panel Mount Flow Meter with Valve, PTFE, PTCFE 3/8" FNPT Adapter, No Valve

Incorporating traditional variable area precision glass technology, these rugged PTFE panel mount flow meters offer accurate and economical solutions to medium flow range measurements.  These meters are designed with unique rotatable scales of dual air-water direct reading graduations showing SCFM and SLPM (air), as well as GPM and LPM (water) markings.  No Valve.

Item# Item Name Item Price Qty Add
6AV9103TNP Maximum Flow Range: Air - 10.5 SCFM (300 SLPM) | Water - 2.2 GPM (8.25 LPM)
$644.00
6AV9104TNP Maximum Flow Range: Air - 14.0 SCFM (400 SLPM) | Water - 2.9 GPM (11.0 LPM)
$644.00
6AV9105TNP Maximum Flow Range: Air - 17.5 SCFM (500 SLPM) | Water - 3.5 GPM (13.25 LPM)
$644.00
6AV9106TNP Maximum Flow Range: Air - 22.0 SCFM (625 SLPM) | Water - 4.1 GPM (16.0 LPM)
$644.00
6AV9101TNP Maximum Flow Range: Air - 3.5 SCFM (100 SLPM) | Water - 0.2 GPM (3.0 LPM)
$644.00
6AV9102TNP Maximum Flow Range: Air - 7.0 SCFM (200 SLPM) | Water - 1.5 GPM (5.75 LPM)
$644.00
Check the items you wish to purchase, then click


Features:
    • Dual, rotatable direct reading scales for air and water.
    • Graduations reflect both metric and English systems.
    • Rigid, compact construction.
    • Panel Mount.
    • Precision formed borosilicate glass.
    • Overlapping flow ranges available from 4-20 LPM water and 140 L/min to 900 L/min air.
    • FNPT connections.




Technical Specs:
  • Specifications
  • 6AV910-TNP
  • Accuracy:
  • +/- 5% of full scale

  • Tube Shields:
  • Polycarbonate
  • Floats:
  • PTFE
  • Maximum Temperature:

  • 250° F (121° C)
  • Scales:
  • Rotatable, direct reading air (SCFM-L/min) and water (GPM-LPM)

  • Repeatability:
  • +/- 0.5% of full scale
  • Maximum Pressure at 200° F:
  • 150 psig

  • Flow Tubes:
  • Heavy walled precision formed borosilicate glass

  • Tube Shields:

  • Thick, clear, polycarbonate and white acrylic

  • Wetted Parts:

  • PTFE, PTCFE

  • Seals:

  • Viton®

  • Connections:

  • 3/8" FNPT In-Line
