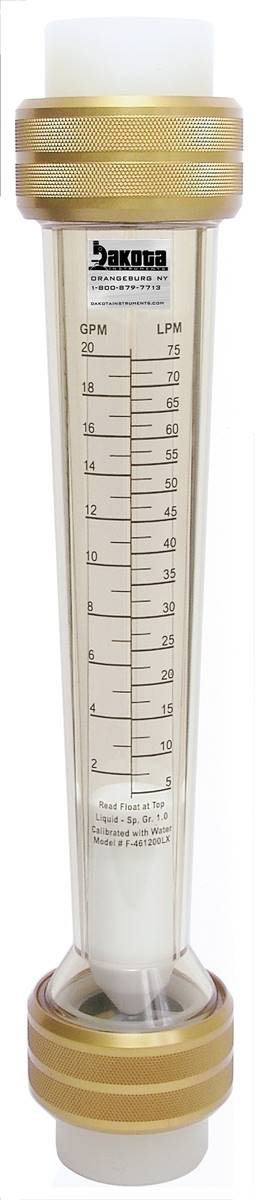

The 6B06 series flow meter's rib guided polysulfone contains no metal in the fluid path. This makes the flow meter desirable in highly corrosive environments or deionized water applications. The 6B0601-PVDF is equipped with 1" FNPT Adapters.
| Item# |
Item Name |
Item Price |
Qty |
Add |
| 6B0601-01F |
Flow Range: 1.0 - 10.0 GPM, 4.0 - 40.0 LPM, Height: 15", Float: PTFE, Adapter: 1" FNPT PVDF |
|
|
|
| 6B0601-02F |
Flow Range: 2.0 - 20.0 GPM, 5.0 - 75.0 LPM, Height: 15", Float: PTFE, Adapter: 1" FNPT PVDF |
|
|
|
| 6B0601-03F |
Flow Range: 3.0 - 35.0 GPM, 12.0 - 130 LPM, Height: 15", Float: PTFE, Adapter: 1" FNPT PVDF |
|
|
|
| Check the items you wish to purchase, then click
|
|
Features:
-
- Tough Polysulfone Meter Body Resists High Temperatures and Pressures.
-
- Easy to Read Direct Reading Dual Scales (GPM/LPM)
- Scale Length: 4" (100 mm).
- No Metal in Fluid Path
-
- Ideal for Corrosive Environments such as Deionized Water Applications where Plastic Meters are Desirable.
-
- PTFE Float and Optional Polysulfone, Polypropylene or PVDF Adapters for Corrosive Applicaitons
-
- Very Low Pressure Drop
-
- Not Recommended for Direct Sunlight Applications.
Technical Specs:
User Manual & Documentation:
|
|
