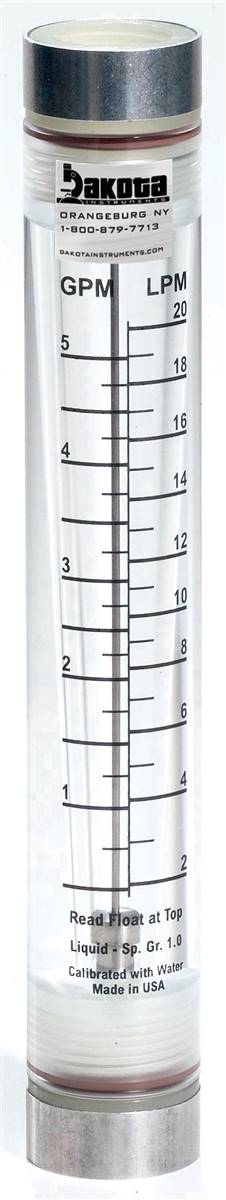

Acrylic In-Line Flow Meter, Polypropylene Connector, No Valve - Water
Acrylic In-Line Flow Meter, Polypropylene Connector, No Valve - Water

Acrylic In-Line Flow Meter, Polypropylene Connector, No Valve - Water

Item# Item Name Item Price Qty Add
6B4100-01B Flow Range: 0.025 TO 0.250 GPM, 0.1 TO 1.0 LPM , Height: 8 3/16", Float: PVDF, Adapter: 1/4" FNPT
$151.00
6B4100-01C Flow Range: 0.025 TO 0.250 GPM, 0.1 TO 1.0 LPM , Height: 8 3/16", Float: PVDF, Adapter: 3/8" FNPT
$151.00
6B4100-02B Flow Range: 0.050 TO 0.500 GPM, 0.2 TO 2.0 LPM, Height: 8 3/16", Float: 316 SS, Adapter: 1/4" FNPT
$151.00
6B4100-02C Flow Range: 0.050 TO 0.500 GPM, 0.2 TO 2.0 LPM, Height: 8 3/16", Float: 316 SS, Adapter: 3/8" FNPT
$151.00
6B4100-03D Flow Range: 0.1 TO 1.0 GPM, 0.4 TO 4.0 LPM, Height: 8 3/16", Float: PTFE, Adapter: 1/2" FNPT
$151.00
6B4100-03C Flow Range: 0.1 TO 1.0 GPM, 0.4 TO 4.0 LPM, Height: 8 3/16", Float: PTFE, Adapter: 3/8" FNPT
$151.00
6B4100-04D Flow Range: 0.2 TO 2.0 GPM, 1.0 TO 7.5 LPM, Height: 8 3/16", Float: 316 SS, Adapter: 1/2" FNPT
$151.00
6B4100-04C Flow Range: 0.2 TO 2.0 GPM, 1.0 TO 7.5 LPM, Height: 8 3/16", Float: 316 SS, Adapter: 3/8" FNPT
$151.00
6B4100-05D Flow Range: 0.3 TO 3.0 GPM, 1.5 TO 11 LPM, Height: 8 3/16", Float: 316 SS, Adapter: 1/2" FNPT
$151.00
6B4100-05C Flow Range: 0.3 TO 3.0 GPM, 1.5 TO 11 LPM, Height: 8 3/16", Float: 316 SS, Adapter: 3/8" FNPT
$151.00
6B4100-06D Flow Range: 0.5 TO 5.0 GPM, 2.0 TO 20 LPM, Height: 8 3/16", Float: 316 SS, Adapter: 1/2" FNPT
$151.00
6B4100-06C Flow Range: 0.5 TO 5.0 GPM, 2.0 TO 20 LPM, Height: 8 3/16", Float: 316 SS, Adapter: 3/8" FNPT
$151.00
Check the items you wish to purchase, then click


Features:
    • Tough Machined Acrylic Meter Body, Highly Polished Clear Finish.
    • Easy to Read Direct Reading Dual Scales (GPM/LPM)


    • White Back Reflector for Easy Reading


    • Scale Length Approximately 4 inches (100mm).


    • FNPT Adapters with High Grade Viton® 0-Rings Seals.
    • Standard Models 316SS or PVC Float Materials.
    • Standard Models 316SS Float Guide Rods


    • Acceptable in Direct Sunlight Applications


    • Easy to Assemble and Install.




Technical Specs:
  • Specifications
  • 6B4100-H2O
  • Accuracy:
  • +/- 5 % of Full Scale reading
  • Maximum Fluid Temperature:

  • Polypropylene Adapters - 65
  • ° C (150° F) @ 0 PSI
  • Maximum Working Pressure:

  • 10.3 bars (150 psig) @ 21
  • ° C (70° F)
  • Maximum Pressure Drop:
  • 2 PSI
  • Meter Body Material:

  • Acrylic

  • Adapter Material:

  • Polypropylene

  • O-Ring Seals:

  • Viton® (Optional EP)

  • Guide Rod:

  • 316 SS
  • Calibration Fluid:

  • Water, Specific Gravity 1.0
