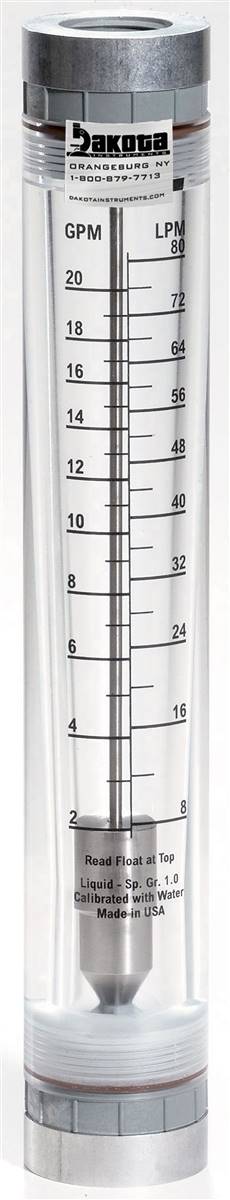

Acrylic In-Line Flow Meter with 316 Stainless Steel Guide Rods, Polypropylene Connector, No Valve - Water
Acrylic In-Line Flow Meter with 316 Stainless Steel Guide Rods, Polypropylene Connector, No Valve - Water

Acrylic In-Line Flow Meter with 316 Stainless Steel Guide Rods, Polypropylene Connector, No Valve - Water

Item# Item Name Item Price Qty Add
6B4200-01F Flow Range: 1.0 TO 10 GPM, 4.0 TO 38 LPM, Height: 11", Float: 316 SS, Adapter: 1" FNPT
$303.00
6B4200-01E Flow Range: 1.0 TO 10 GPM, 4.0 TO 38 LPM, Height: 11", Float: 316 SS, Adapter: 3/4" FNPT
$303.00
6B4200-03F Flow Range: 2.0 TO 20 GPM, 8.0 TO 80 LPM, Height: 11", Float: 316 SS, Adapter: 1" FNPT
$303.00
6B4200-03E Flow Range: 2.0 TO 20 GPM, 8.0 TO 80 LPM, Height: 11", Float: 316 SS, Adapter: 3/4" FNPT
$303.00
Check the items you wish to purchase, then click


Features:
    • Tough Machined Acrylic Meter Body, Highly Polished Clear Finish.
    • Easy to Read Direct Reading Dual Scales (GPM/LPM)


    • White Back Reflector for Easy Reading


    • Scale Length Approximately 4 inches (100mm).


    • FNPT Adapters with High Grade Viton® 0-Rings Seals.
    • Standard Models 316SS or PVC Float Materials.
    • Standard Models 316SS Float Guide Rods


    • Acceptable in Direct Sunlight Applications


    • Easy to Assemble and Install.




Technical Specs:
  • Specifications
  • 6B4200-H2O
  • Accuracy:
  • +/- 5 % of Full Scale reading
  • Maximum Fluid Temperature:

  • Polypropylene Adapters - 65
  • ° C (150° F) @ 0 PSI
  • Maximum Working Pressure:

  • 10.3 bars (150 psig) @ 21
  • ° C (70° F)
  • Maximum Pressure Drop:
  • 2 PSI
  • Meter Body Material:

  • Acrylic

  • Adapter Material:

  • Polypropylene

  • O-Ring Seals:

  • Viton® (Optional EP)

  • Guide Rod:

  • 316 SS

  • Calibration Fluid:

  • Water, Specific Gravity 1.0
