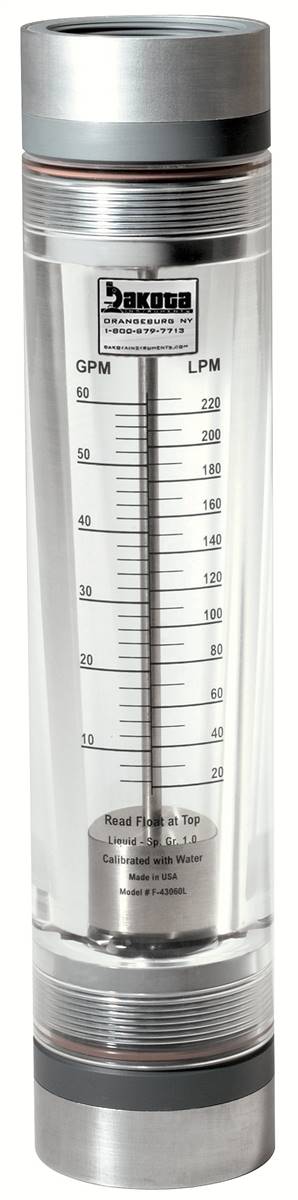

High Capacity Acrylic In-Line Flow Meter with 316 Stainless Steel Guide Rod, PVC Connector, No Valve - Water
| Item# |
Item Name |
Item Price |
Qty |
Add |
| 6B6100-04H |
Flow Range: 20 - 100 GPM, 75 - 375 LPM, Height: 14", Float: 316 SS, Adapter: 1 1/2" FNPT |
|
|
|
| 6B6100-04I |
Flow Range: 20 - 100 GPM, 75 - 375 LPM, Height: 14", Float: 316 SS, Adapter: 2" FNPT |
|
|
|
| 6B6100-01H |
Flow Range: 4.0 - 40 GPM, 15 - 150 LPM, Height: 14", Float: 316 SS, Adapter: 1 1/2" FNPT |
|
|
|
| 6B6100-01I |
Flow Range: 4.0 - 40 GPM, 15 - 150 LPM, Height: 14", Float: 316 SS, Adapter: 2" FNPT |
|
|
|
| 6B6100-02H |
Flow Range: 6.0 - 60 GPM, 20 - 230 LPM, Height: 14", Float: 316 SS, Adapter: 1 1/2" FNPT |
|
|
|
| 6B6100-02I |
Flow Range: 6.0 - 60 GPM, 20 - 230 LPM, Height: 14", Float: 316 SS, Adapter: 2" FNPT |
|
|
|
| 6B6100-03H |
Flow Range: 8.0 - 80 GPM, 30 - 300 LPM, Height: 14", Float: 316 SS, Adapter: 1 1/2" FNPT |
|
|
|
| 6B6100-03I |
Flow Range: 8.0 - 80 GPM, 30 - 300 LPM, Height: 14", Float: 316 SS, Adapter: 2" FNPT |
|
|
|
| Check the items you wish to purchase, then click
|
|
Features:
-
- Tough Machined Acrylic Meter Body, Highly Polished Clear Finish.
- Easy to Read Direct Reading Dual Scales (GPM/LPM)
- White Back Reflector for Easy Reading
- Scale Length Approximately 5 inches (127mm).
- 1.5" or 2" FNPT Adapters.
- High Grade Viton® O-Rings Seals.
-
- Standard Models 316SS or PVC Float Materials.
-
- Standard Models 316SS Float Guide Rods
Technical Specs:
User Manual & Documentation:
|
|
