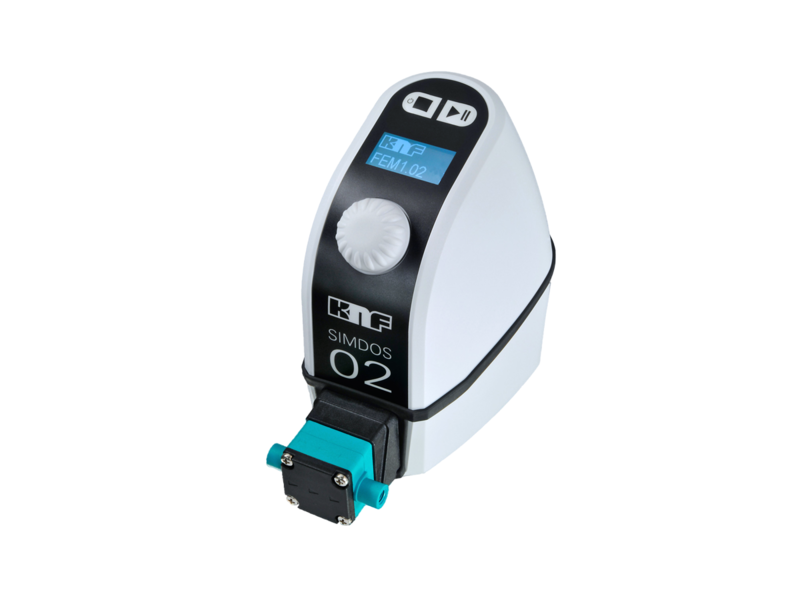

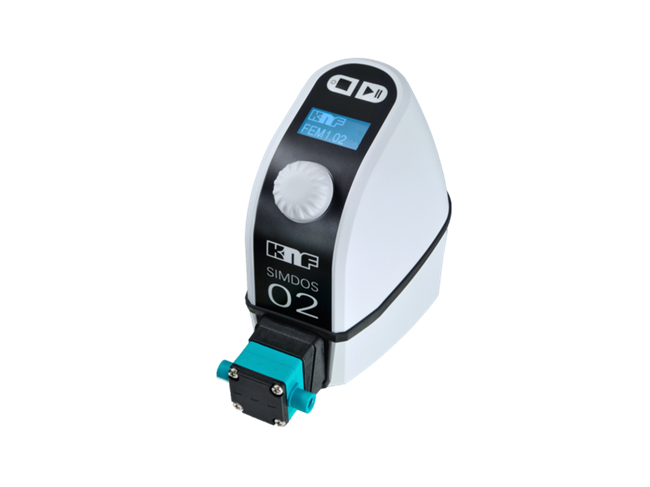

SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min, Dosing Volume 0.03 - 999 mL

SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min, Dosing Volume 0.03 - 999 mL

SIMDOS® 02 Liquid dosing/metering diaphragm pump. Offers wetted material combinations for optimal chemical resistance. It works with simple and intuitive operation, offers easy calibration while maintaining a small footprint. Manual control of flow rate and dosing volume with LCD graphic display.
Analog and impulse control available with "R" Models
"RP" Models include Analog and impulse control plus RS-232 digital communication.

Item# Item Name Item Price Qty Add
6KNFM02-K SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min; [Pump Head - PP, Diaphragm - PTFE Coated, Valves - FFKM, Filter - PEEK]
$2,153.00
6KNFM02-F SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min; [Pump Head - PTFE, Diaphragm - FFKM, Valves - FFKM, Filter - PEEK]
$3,969.00
6KNFM02-FRPV SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min; [Pump Head - PTFE, Diaphragm - FFKM, Chemraz® Valves, Filter - PEEK] with Remote Analog Control plus RS232
$4,861.00
6KNFM02-FV SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min; [Pump Head - PTFE, Diaphragm - FFKM, Chemraz® Valves, Filter - PEEK]
$4,175.00
6KNFM02-FRP SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min; [Pump Head - PTFE, Diaphragm - FFKM, Valves - FFKM, Filter - PEEK] with Remote Analog Control plus RS232
$4,652.00
6KNFM02-FR SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min; [Pump Head - PTFE, Diaphragm - FFKM, Valves - FFKM, Filter - PEEK] with Remote Analog Control
$4,243.00
6KNFM02-T SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min; [Pump Head - PVDF, Diaphragm - PTFE Coated, Valves - FFKM, Filter - PVDF]
$2,307.00
6KNFM02-S SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min; [Pump Head - Stainless Steel, Diaphragm - PTFE Coated, Valves - FFKM, FIlter - PEEK]
$5,151.00
6KNFM02-KRP SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min; [Pump Head - PP, Diaphragm - PTFE Coated, Valves - FFKM, Filter - PEEK] with Remote Analog Control plus RS232
$2,845.00
6KNFM02-KR SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min; [Pump Head - PP, Diaphragm - PTFE Coated, Valves - FFKM, Filter - PEEK] with Remote Analog Control
$2,426.00
6KNFM02-FRV SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min; [Pump Head - PTFE, Diaphragm - FFKM, Chemraz® Valves, Filter - PEEK] with Remote Analog Control
$4,450.00
6KNFM02-TR SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min; [Pump Head - PVDF, Diaphragm - PTFE Coated, Valves - FFKM, Filter - PVDF] with Remote Analog Control
$2,578.00
6KNFM02-TRP SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min; [Pump Head - PVDF, Diaphragm - PTFE Coated, Valves - FFKM, Filter - PVDF] with Remote Analog Control plus RS232
$3,112.00
6KNFM02-SRP SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min; [Pump Head - Stainless Steel, Diaphragm - PTFE Coated, Valves - FFKM, Filter - PEEK] with Remote Analog Control plus RS232
$5,850.00
6KNFM02-SR SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min; Pump Head - Stainless Steel, Diaphragm - PTFE Coated, Valves - FFKM, FIlter - PEEK with Remote Analog Control
$5,424.00
Check the items you wish to purchase, then click


Features:
    • Flow Range: 30 µL/min to 20 mL/min


    • Dosing Volume: 30 µL to 999 mL


    • Simple and Intuitive Operation


    • Easy Calibration


    • Cycle Mode


    • Adaptable to Fluid Characteristics


    • Self priming, can run dry


    • Analog and Impulse Control (R and RP Models)


    • Splashproof IP65


    • Small Footprint




Technical Specs:
  • Specifications
  • 6KNFM02 Simdos 02
  • Flow Rate:
  • 30 µL/min to 20 mL/min
  • Dosing Volume:

  • 1 to 999 mL

  • Suction Height:

  • 9.8 ft Water

  • Max Pressure:

  • 85 PSIG

  • Main Supply:

  • 100 - 240V / 50 - 60 Hz

  • Allowed Ambient Temperature:

  • +5° to +40°C
  • Allowed Liquid Temperature:

  • +5° to 80°C

  • Viscosity Settings**

  • Up to 500 cSt**
    **Reduced flow rate above 150 cSt

  • Repeatability:

  • +/-1%

  • Power Consumption:

  • 24 W

  • Protection Class

  • IP65

  • Dimensions LxHxW (mm):

  • 150 x 93 x 144 mm

  • Weight:

  • 0.9 kg (2 lbs)
