Laboport® Mini Diaphragm Vacuum Pump 6KNN816-1-2KT / 6KNN816-1-2KT-45 (30 L/min)
Laboport<sup>&reg;</sup> Mini Diaphragm Vacuum Pump 6KNN816-1-2KT / 6KNN816-1-2KT-45 (30 L/min)

Alternative Views:
Series N816-1-2 diaphragm pumps are Double-head, dry-running devices used in a wide range of laboratory applications. They transfer, evacuate and pump down without contamination. The core of these very compact pumps is a KNF structured diaphragm. This patented diaphragm was stress-optimized using the finite elements method. As a result, the pumps are smaller while increasing the service life of the diaphragm.

The pumps are available in various versions differing with materials that come into contact with the media.
Pump Head - PTFE ; Diaphragm - PTFE-Coated ; Valves - FFPM

Item# Item Name Item Price Qty Add

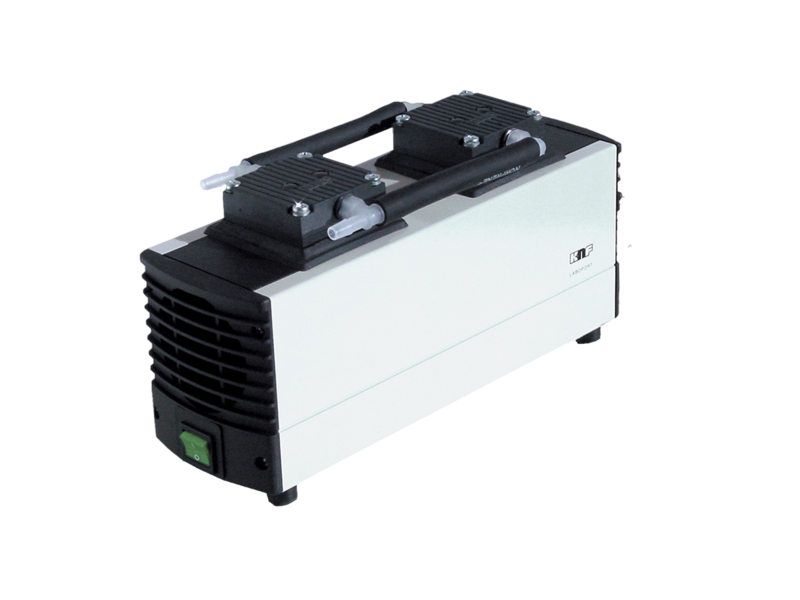

6KNN816-1-2KT Laboport® Mini Diaphragm Vacuum Pump - 30 L/min, 160 Torr, 1/4" ID Connectors, PPS Pump head, PTFE-Coated Diaphragm, FFPM Valves
$1,517.00

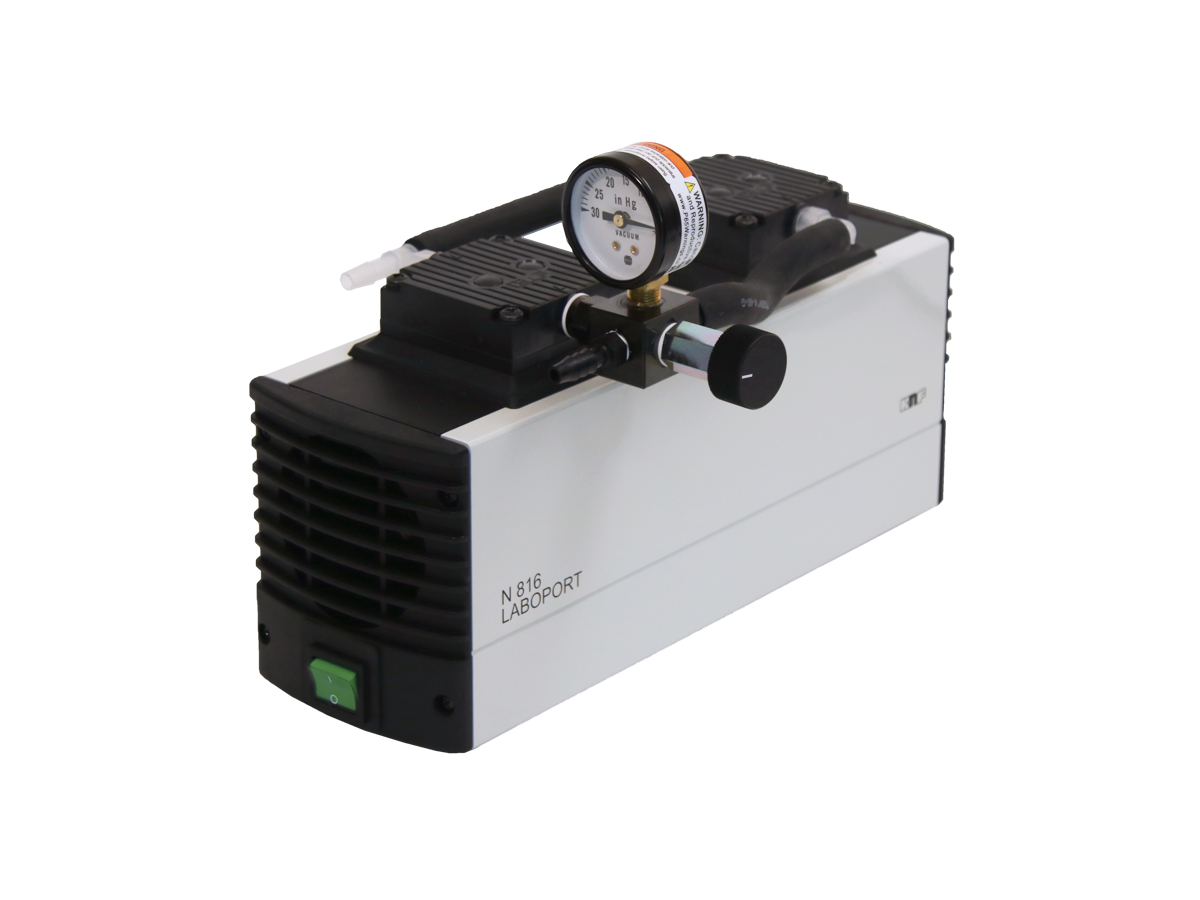

6KNN816-1-2KT-45 Laboport® Mini Diaphragm Vacuum Pump with Vacuum Gauge & Regulator - 30 L/min, 160 Torr, 1/4" ID Connectors, PPS Pump head, PTFE-Coated Diaphragm, FFPM Valves
$1,731.00
Check the items you wish to purchase, then click


Features:
    • Flow Rate (max.): 30 L/min


    • 100% Oil-free transfer


    • Pure transfer, vacuum service only


    • Version for slightly aggressive or corrosive gases


    • Pump Head - PTFE ; Diaphragm - PTFE-Coated ; Valves - FFPM


    • Maintenance-free


    • Environmentally friendly


    • High level of gas tightness




Technical Specs:
  • Specifications
  • 6KNN816-1-2KT, 6KNN816-1-2KT-45
  • Flow Rate (L/min @ atm pressure):
  • 30 L/min
  • Ultimate Vacuum (mbar abs.)
  • 160

  • Operating Pressure:

  • 0.5 (barG)

  • Connectors for tube (inches ID):

  • 1/4"

  • Permissable gas and ambient temperature:

  • +5° to 40°C

  • Mains:

  • 115V/60Hz

  • Motor Protection:

  • IP 20

  • Materials in contact with Media:

  • Pump head - PTFE; Diaphragm - PTFE-Coated; Valves - FFPM

  • Power P:

  • 100W @ atm pressure

  • Operating Current:

  • 0.6 A

  • Weight:

  • 9.0 lbs

  • Dimensions LxHxW (mm):

  • 361/141/102 with thermal switch and power fuse
