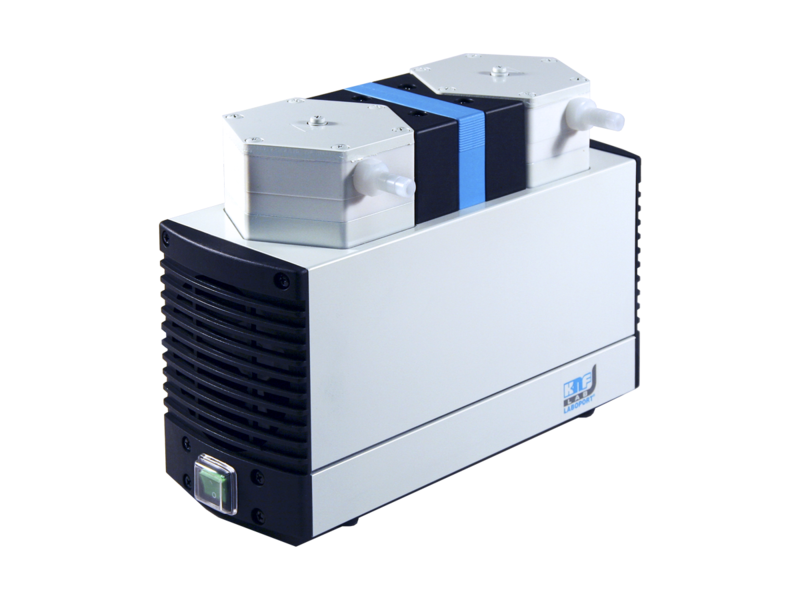

Laboport® Diaphragm Vacuum Pump 6KNN820-3FT / 6KNN820-3FT-40 (20 L/min)
Laboport<sup>&reg;</sup> Diaphragm Vacuum Pump 6KNN820-3FT / 6KNN820-3FT-40 (20 L/min)

The chemically-resistant series N820-3FT diaphragm pumps are Double-Head, oil-free devices used in a wide range of laboratory applications.  They transfer and pump down without contamination.

The core of these compact pumps is a KNF structured diaphragm.  This patented diaphragm was stress-optimized using the Finite Elements method resulting in smaller pump sizes while increasing the service life of the diaphragm.

Pump Head - PTFE / Diaphragm - PTFE-Coated / Valves - FFPM

Item# Item Name Item Price Qty Add
6KNN820-3FT Laboport® Mini Diaphragm Vacuum Pump 6KNN820-3FT - 20 L/min, 6 Torr, PTFE & FFPM
$2,658.00
6KNN820-3FT-40 Laboport® Mini Diaphragm Vacuum Pump 6KNN820-3FT-40 - 20 L/min, 8 Torr, PTFE & FFPM with PowerDry®
$3,646.00
Check the items you wish to purchase, then click


Features:
    • Flow Rate (max.): 20 L/min


    • 100% Oil-free transfer


    • Pure transfer, evacuation and compression


    • Highly compatible with vapors and condensation


    • Chemically-resistant, suitable for aggressive or corrosive gases and vapors


    • Pump Head - PTFE / Diaphragm - PTFE-Coated / Valves - FFPM


    • Maintenance-free


    • Environmentally friendly


    • Gas tight, leakage rate approximately 6 x 10-3 mbar x l/s, not tested in serial production


    • Motors with other voltages and frequencies on request




Technical Specs:
  • Specifications
  • 6KNN820-3FT
  • 6KNN820-3FT-40
  • Ultimate Vacuum (Torr):

  • 6.0
  • 8.0
  • Flow Rate (L/min @ atm pressure):
  • 20 L/min
  • Operating Pressure:

  • 15 PSI

  • Connectors for tube (inches ID):

  • 3/8"

  • Permissable gas and ambient temperature:

  • +5° to 40°C

  • Mains:

  • 115V/60Hz

  • Motor Protection:

  • IP 44

  • Wetted Materials:

  • Pump head - PTFE; Diaphragm - PTFE-Coated; Valves - FFPM

  • Power:

  • 130 W @ atm pressure

  • Operating Current:

  • 1.2 A

  • Weight:

  • 20.5 lbs

  • Dimensions LxHxW (mm):

  • with thermal switch and power fuse
  • 312 / 207 /154




User Manual & Documentation:
