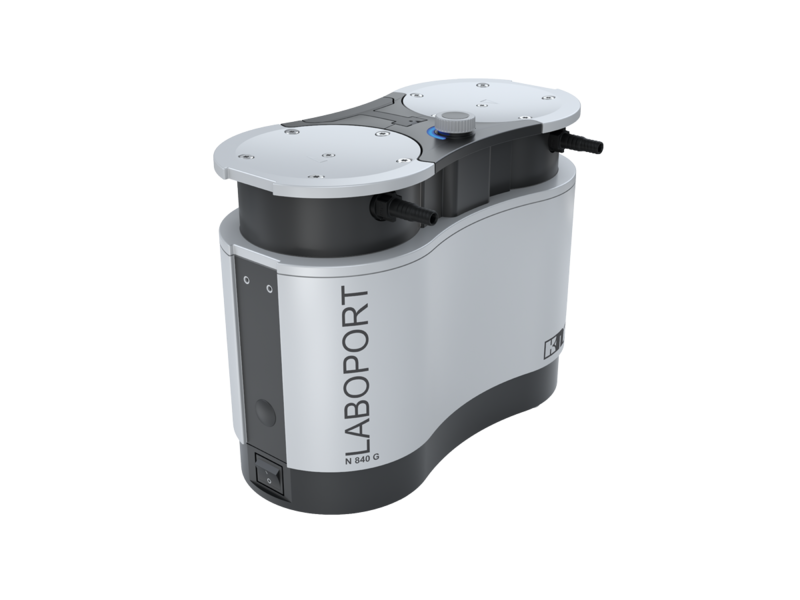

Laboport® Diaghragm Vacuum Pump for Gases and Vapors 6KNN840G - (34 L/min)
Laboport<sup>&reg;</sup> Diaghragm Vacuum Pump for Gases and Vapors 6KNN840G - (34 L/min)

Alternative Views:
Chemically resistant, compact and oil-free diaphragm vacuum pump with manual speed control for adjusting the pump capacity to your specific application. N840G series pumps feature a gas ballast, PTFE/TFMTM heads, PTFE-coated diaphragms and FFPM valves.
This pump is ATEX compliant according to EX II 2/-G IIB+H2 T3 internal atmosphere only.
Optional separators and/or condensers can be purchased indvidually at any time and are easily fitted enabling users to build their own customized vacuum system.
Suitable for a wide range of Laboratory applications including extremely aggressive/corrosive gasses and vapors.

Item# Item Name Item Price Qty Add
6KNN840G Laboport® Vacuum Pump for Gases and Vapors - 34 L/min, Ultimate Vacuum 6.0 mbar abs.
$3,768.00
Check the items you wish to purchase, then click


Features:
    • Flow Rate (max.): 34 L/min (2.04 m3/h)


    • 100% oil-free transfer


    • Pure transferring and evacuation of gases


    • Highly compatible with vapors and condensation


    • Chemically-resistant, suitable for aggressive or corrosive gases and vapors


    • Integrated gas ballast valve


    • ATEX compliant: EX II 2/-G IIB+H2 T3 internal atmosphere only


    • Optional separators and/or condenser may be purchased allowing users to build their own customized vacuum system


    • 3-color display for in operation / stand-by / error


    • Integrated rotational speed control


    • Environmentally friendly


    • Start against ultimate vacuum of the pump


    • Pump Head - TFMTM PTFE - Diaphragm - PTFE-Coated ; Valves - FFPM




    Technical Specs:
    • Specifications
    • 6KNN840G
    • Flow Rate (L/min @ atm pressure):
    • 34 L/min
    • Ultimate Vacuum (mbar abs.)
    • 6.0

    • Operating Pressure (bar):

    • 0.1 bar

    • Permissable gas and ambient temperature:

    • +5° to +40°C

    • Voltage (V):

    • 100 - 240V

    • Frequencies (Hz):

    • 50/60

    • Protection Class:

    • IP30

    • Power (W):

    • 100W @ atm pressure

    • Operating Current (A):

    • 0.6 (100 V AC)
    • 11.0 (240 V AC)

    • Materials in contact with Media:

    • Pump head - TFMTM PTFE - Diagpragm - PTFE Coated - Valves FFPM

    • Hose Connections:

    • ID 9.5 - 8, PVDF

    • Weight:

    • 25 lbs (11.3 kg)

    • Dimensions W x H x D (mm):

    • With thermal switch and power fuse
    • 177 x 240 x 289






    User Manual & Documentation:
