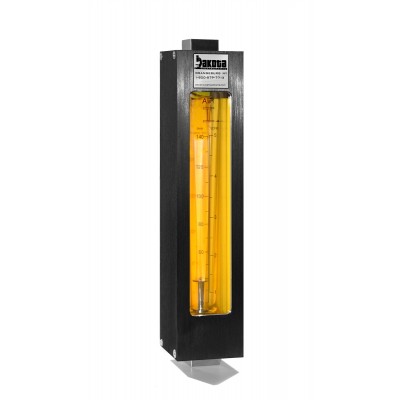

Encased Glass Tube In-Line Flow Meter, PTFE, PTCFE 3/8" FNPT Adapter, No Valve
Encased Glass Tube In-Line Flow Meter, PTFE, PTCFE 3/8" FNPT Adapter, No Valve

Incorporating traditional variable area precision glass technology, these rugged PTFE in-line flow meters offer accurate and economical solutions to medium flow range measurements.  These meters are designed with unique rotatable scales of dual air-water direct reading graduations showing SCFM and SLPM (air), as well as GPM and LPM (water) markings.  No Valve.

Item# Item Name Item Price Qty Add
6AV9103TNI Maximum Flow Range: Air - 10.5 SCFM (300 SLPM) | Water - 2.2 GPM (8.25 LPM)
$593.00
6AV9104TNI Maximum Flow Range: Air - 14.0 SCFM (400 SLPM) | Water - 2.9 GPM (11.0 LPM)
$593.00
6AV9105TNI Maximum Flow Range: Air - 17.5 SCFM (500 SLPM) | Water - 3.5 GPM (13.25 LPM)
$593.00
6AV9106TNI Maximum Flow Range: Air - 22.0 SCFM (625 SLPM) | Water - 4.1 GPM (16.0 LPM)
$593.00
6AV9101TNI Maximum Flow Range: Air - 3.5 SCFM (100 SLPM) | Water - 0.2 GPM (3.0 LPM)
$593.00
6AV9102TNI Maximum Flow Range: Air - 7.0 SCFM (200 SLPM) | Water - 1.5 GPM (5.75 LPM)
$593.00
Check the items you wish to purchase, then click


Features:
    • Dual, rotatable direct reading scales for air and water.
    • Graduations reflect both metric and English systems.
    • Rigid, compact construction.
    • Vertical In-Line Mount.
    • Precision formed borosilicate glass.
    • Overlapping flow ranges available from 4-20 LPM water and 140 L/min to 900 L/min air.
    • FNPT connections.




Technical Specs:
  • Specifications
  • 6AV910-TNI
  • Accuracy:
  • +/- 5% of full scale

  • Tube Shields:
  • Polycarbonate
  • Floats:
  • PTFE
  • Maximum Temperature:

  • 250° F (121° C)
  • Scales:
  • Rotatable, direct reading air (SCFM-L/min) and water (GPM-LPM)

  • Repeatability:
  • +/- 0.5% of full scale
  • Maximum Pressure at 200° F:
  • 150 psig

  • Flow Tubes:
  • Heavy walled precision formed borosilicate glass

  • Tube Shields:

  • Thick, clear, polycarbonate and white acrylic

  • Wetted Parts:

  • PTFE, PTCFE

  • Seals:

  • Viton®

  • Connections:

  • 3/8" FNPT In-Line
