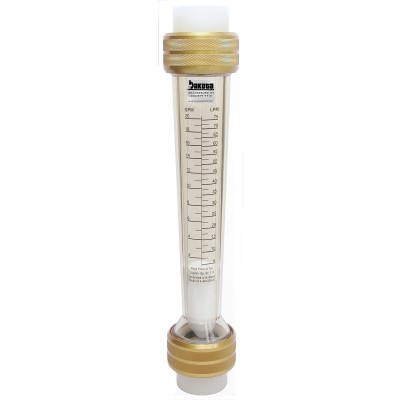

Polysulfone High Volume In-Line Flow Meter with FNPT PVDF Connections - Water (GPM/LPM)

The 6B06 series flow meter's rib guided polysulfone contains no metal in the fluid path. This makes the flow meter desirable in highly corrosive environments or deionized water applications. The 6B0601-PVDF is equipped with 1" FNPT Adapters.
  • Tough Polysulfone Meter Body Resists High Temperatures and Pressures.
  • Easy to Read Direct Reading Dual Scales (GPM/LPM)
  • Scale Length: 4" (100 mm).
  • No Metal in Fluid Path
  • Ideal for Corrosive Environments such as Deionized Water Applications where Plastic Meters are Desirable.
  • PTFE Float and Optional Polysulfone, Polypropylene or PVDF Adapters for Corrosive Applicaitons
  • Very Low Pressure Drop
  • Not Recommended for Direct Sunlight Applications.
Specifications 6B0601-PVDF
Accuracy: +/- 2.5% of Full Scale reading
Maximum Fluid Temperature:
Polysulfone Adapters: 65 ° C (150° F) @ 0 PSI

PVC Adapters: 54° C (130° F) @ 0 PSI

PVDF Adapters: 98° C (210° F) @ 0 PSI
Maximum Working Pressure:
10.3 bars (150 psig) @ 21 ° C (70° F)
Maximum Pressure Drop: 2 PSI
Meter Body Material:
Polysulfone
Connection Material:
PVC Optional: Polypropylene & PVDF
Float Materials:
PTFE
O-Ring Seals:
Viton® Optional: EP Available
Usually Ships in 5 to 7 Business Days
Item #Item DescriptionItem PriceSubtotalQty
6B0601-01FFlow Range: 1.0 - 10.0 GPM, 4.0 - 40.0 LPM, Height: 15", Float: PTFE, Adapter: 1" FNPT PVDF $683.00 $0.00
6B0601-02FFlow Range: 2.0 - 20.0 GPM, 5.0 - 75.0 LPM, Height: 15", Float: PTFE, Adapter: 1" FNPT PVDF $683.00 $0.00
6B0601-03FFlow Range: 3.0 - 35.0 GPM, 12.0 - 130 LPM, Height: 15", Float: PTFE, Adapter: 1" FNPT PVDF $683.00 $0.00
