Water Flow Meter - Acrylic, Polypropylene Fittings, No Valve
Water Flow Meter - Acrylic, Polypropylene Fittings, No Valve

Alternative Views:

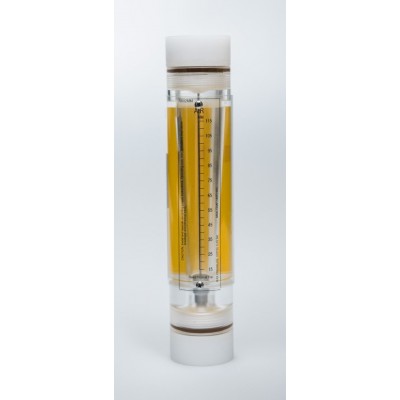

This Acrylic Flowmeter has a Dual Direct Reading Scale with yellow backing for easy viewing of Water flow values. Viton® Seals, 3/4" FNPT and Polypropylene End fittings are standard. The float/guide material is 316 Stainless Steel.  This Flowmeter is designed for inline mounting and can handle a Maximum Flow Rate of 60 LPM (15 GPM).  No Valve.

Item# Item Name Item Price Qty Add
6A0407PN-WA Water Flow Meter 40 LPM (10 GPM) - Acrylic, Polypropylene Fittings, No Valve
$185.00
6A0409PN-WA Water Flow Meter 50 LPM (13 GPM) - Acrylic, Polypropylene Fittings, No Valve
$185.00
6A0411PN-WA Water Flow Meter 60 LPM (15 GPM) - Acrylic, Polypropylene Fittings, No Valve
$185.00
Check the items you wish to purchase, then click


Features:


    • Yellow Backed Scales in English or Metric Measures


    • In-Line Mount


    • No Valve


    • Simple Disassembly and Assembly for Cleaning


    • Stable, Easy to Read Float


    • Optional scales can be developed for diverse low flow conditions, facilitating OEM applications




Technical Specs:
  • Specifications
  • 6A04 Acrylic Flow Meters
  • Accuracy:
  • +/- 5% of Full Scale reading
  • Maximum Temperature:

  • 54
  • ° C (130° F)
  • Maximum Pressure:

  • 6.89 bars (100 psig)

  • Body:

  • Optical, Clear, Cast Acrylic

  • Float & Guide

  • 316 Stainless Steel

  • O-Rings:

  • Viton®

  • Connections:
  • Polypropylene 3/4" NPT Female Connections

  • Valve Parts:
  • Brass
