Water Flow Meters - Acrylic, Brass Fittings, No Valve

Water Flow Meters - Acrylic, Brass Fittings, No Valve

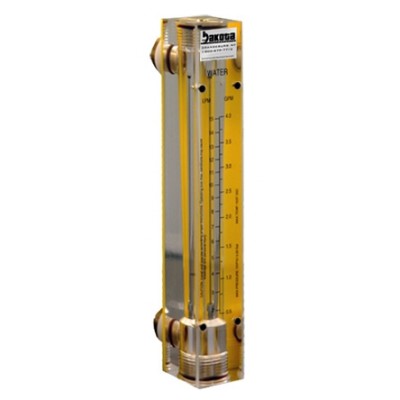

This Acrylic Flow Meter has a Dual Direct Reading Scale with yellow backing for easy viewing of H20 flow values. Viton® Seals, 3/8" FNPT and Brass End fittings are standard. The float/guide material is 316 Stainless Steel.  This Flow Meter is designed for panel mounting and can handle a Maximum Flow Rate of 15 LPM (4 GPM).   No Valve.

Item# Item Name Item Price Qty Add
6A0211BN-WA Water Flow Meter 15 LPM (4 GPM)- Acrylic, Brass Fittings, No Valve (6A0211BN-WA)
$156.00
6A0209BN-WA Water Flow Meter 8.5 LPM (2.0 GPM) - Acrylic, Brass Fittings, No Valve
$156.00
Check the items you wish to purchase, then click


Features:


    • Yellow Backed Scales in English or Metric Measures


    • Panel Mount


    • No Valve


    • Simple Dis-assembly and Assembly for Cleaning


    • Stable, Easy to Read Float


    • Optional scales can be developed for diverse low flow conditions, facilitating OEM applications
    • No Valve




Technical Specs:
  • Specifications
  • 6A02 Acrylic Flow Meters
  • Accuracy:
  • +/- 5% of Full Scale reading
  • Maximum Temperature:

  • 54° C (130° F)
  • Maximum Pressure:

  • 6.89 bars (100 psig)

  • Maximum Flow Rate:

    		• 15 LPM (4 GPM)
  • Body:

  • Optical, Clear, Cast Acrylic

  • Float & Guide

  • 316 Stainless Steel

  • O-Rings:

  • Viton®

  • Connections:
  • Brass 3/8" NPT Female Connections

  • Valve Parts:
  • Brass






User Manual & Documentation:
