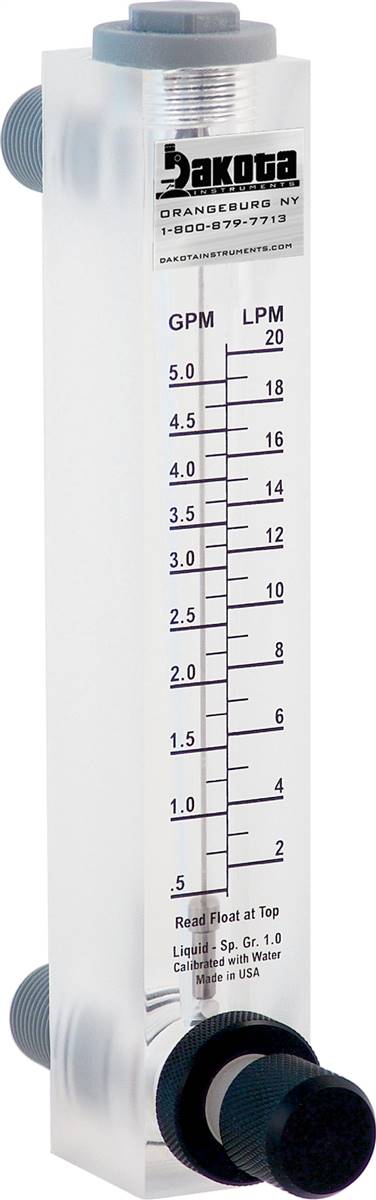

Acrylic Panel Mount Flow Meter, Polypropylene Connector, Adjustable Valve - Water
Note: Center to Center Height for Panel Mount shown in product description.
See product literature for complete product dimensions.
| Item# |
Item Name |
Item Price |
Qty |
Add |
| 6B7101-01B |
Flow Range: 0.025 - 0.250 GPM, 0.1 - 1.0 LPM, Center to Center Height: 5-5/8", Float: 316 SS, Adapter: 1/4" MNPT |
|
|
|
| 6B7101-02C |
Flow Range: 0.1 - 1.0 GPM, 0.4 - 4.0 LPM, Center to Center Distance: 6-1/2", Float: 316 SS, Adapter: 3/8" MNPT |
|
|
|
| 6B7101-03C |
Flow Range: 0.2 - 2.0 GPM, 0.75 - 7.5 LPM, Center to Center Distance: 6-1/2", Float: 316 SS, Adapter: 3/8" MNPT |
|
|
|
| 6B7101-04D |
Flow Range: 0.5 - 5.0 GPM, 2.0 - 20 LPM, Center to Center Distance: 6-1/2", Float: 316 SS, Adapter: 1/2" MNPT |
|
|
|
| 6B7101-05E |
Flow Range: 1.0 - 10 GPM, 4.0 - 40 LPM, Center to Center Distance: 6-1/2", Float: 316 SS, Adapter: 3/4" MNPT |
|
|
|
| 6B7101-07F |
Flow Range: 1.0 - 10 GPM, 4.0 - 40 LPM, Center to Center Distance: 8", Float: 316 SS, Adapter: 1" MNPT |
|
|
|
| 6B7101-08F |
Flow Range: 1.0 - 15 GPM, 5.0 - 60 LPM, Center to Center Distance: 8", Float: 316 SS, Adapter: 1" MNPT |
|
|
|
| 6B7101-06F |
Flow Range: 1.0 - 5.0 GPM, 3.0 - 18 LPM , Center to Center Distance: 8" , Float: , Adapter: 1" MNPT |
|
|
|
| 6B7101-09F |
Flow Range: 2.0 - 20 GPM, 7.5 - 75 LPM, Center to Center Distance: 8", Float: 316 SS, Adapter: 1" MNPT |
|
|
|
| Check the items you wish to purchase, then click
|
|
Features:
-
- Durable, Highly Polished, One Piece Meter Body.
- Easy to Read Direct Read Permanent Scale (GPM/LPM and SCFM)
- Sturdy Adapters with High Grade Viton® 0-Rings Seals.
-
- 316SS Floats and Float Guides.
-
- Bulkhead Nuts Attach Directly Inside Panel.
- Separate Mounting Screws are Not Required.
- Optional Adjustable Flow Control Valve.
- Acceptable in Direct Sunlight Applications
- Easy to Disassemble.
Technical Specs:
User Manual & Documentation:
|
|
