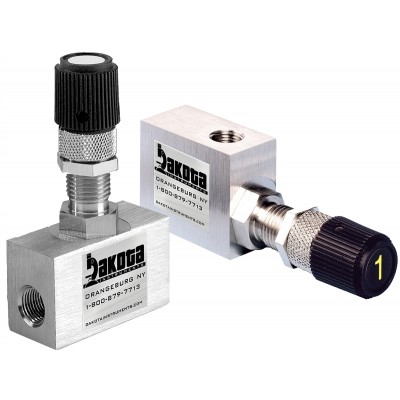

316 Stainless Steel Utility Needle Valve - 180 Degree (Straight) & 90 Degree Flow Pattern

Barstock CV 316 Stainless Steel Utility Needle Valves are designed for a broad range of gas and liquid flow rates in Straight Flow or 90 Degree Flow Patterns. The precision-machined valve body is 316 Stainless Steel. These rugged, reliable valves are suitable for OEM, laboratory, and bench-top flow control applications.
  • Panel Mountable
  • Straight Flow patterns or 90 Degree flow patterns
  • Stainless Steel
  • Suitable for Laboratory, Bench Top or OEM flow control purposes
  • Bubble-tight shutoff
Specifications 6ACV1-SS
Maximum Pressure: 500 psig (3792 kPa)
Maximum Temperature: 250°F (121°C) Stainless Valves
Valve: Standard Cartridge Valve
Valve Body and Bushing: 316 Stainless Steel
Valve Needle: 316 Stainless Steel
Orifice: 316 Stainless Steel with PTFE Liner
Connections: 1/8” Female NPT
O-Rings: Viton®
Usually Ships in 5 to 7 Business Days
Item # Item Description Item Price Subtotal Qty

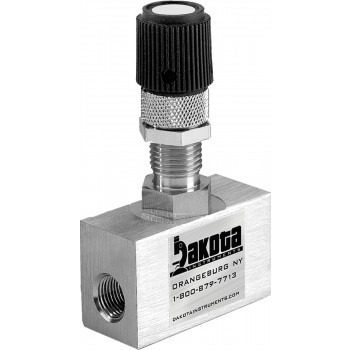

6ACV1102 Maximum Flow Rate: Air - 5000 mL/min, Water - 350 mL/min, 0.052 Orifice, 0.03 Cv, Straight Flow Pattern $95.00 $0.00

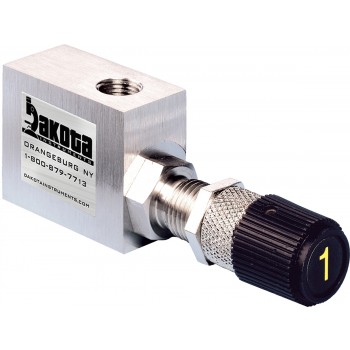

6ACV1104 Maximum Flow Rate: Air - 5000 mL/min, Water - 350 mL/min, 0.052 Orifice, 0.03 Cv, 90 Degree Flow Pattern $97.00 $0.00
6ACV1106 Maximum Flow Rate: Air - 20000 mL/min, Water - 1200 mL/min, 0.082 Orifice, 0.1 Cv, Straight Flow Pattern $95.00 $0.00
6ACV1108 Maximum Flow Rate: Air - 20000 mL/min, Water - 1200 mL/min, 0.082 Orifice, 0.1 Cv, 90 Degree Flow Pattern $97.00 $0.00
6ACV1110 Maximum Flow Rate: Air - 60000 mL/min, Water - 3500 mL/min, 0.12 Orifice, 0.3 Cv, Straight Flow Pattern $95.00 $0.00
6ACV1112 Maximum Flow Rate: Air - 60000 mL/min, Water - 3500 mL/min, 0.12 Orifice, 0.3 Cv, 90 Degree Flow Pattern $97.00 $0.00
