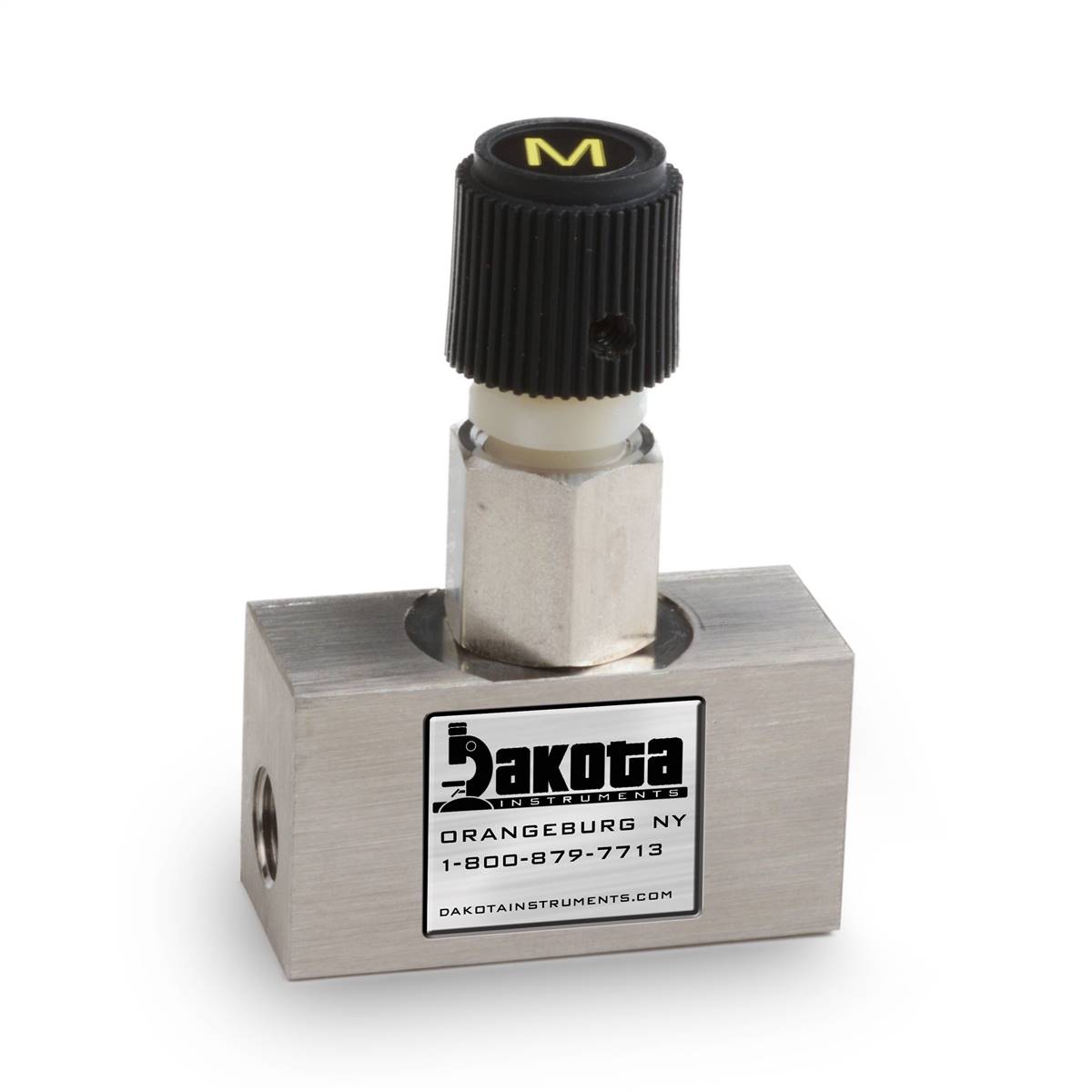

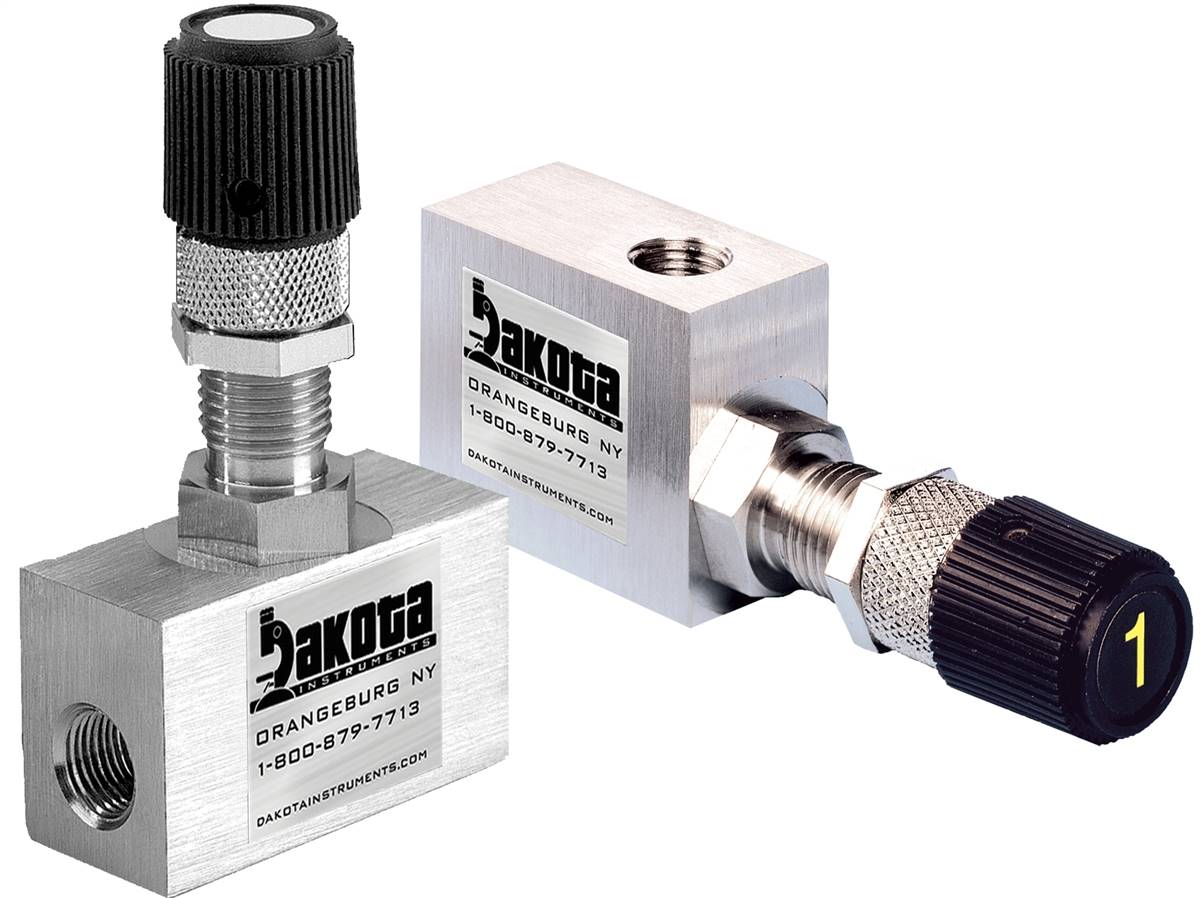

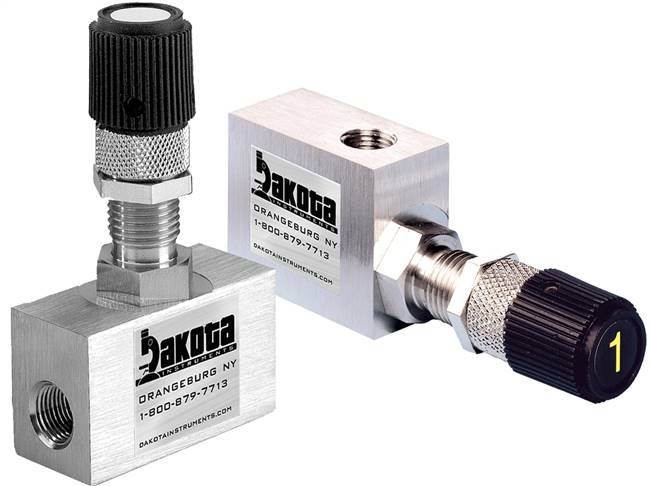

Barstock CV 316 Stainless Steel Utility Needle Valves are designed for a broad range of gas and liquid flow rates in Straight Flow or 90 Degree Flow Patterns. The precision-machined valve body is 316 Stainless Steel. These rugged, reliable valves are suitable for OEM, laboratory, and bench-top flow control applications.
| Item# |
Item Name |
Item Price |
Qty |
Add |
| 6ACV1108 |
Maximum Flow Rate: Air - 20000 mL/min, Water - 1200 mL/min, 0.082 Orifice, 0.10 Cv, 90 Degree Flow Pattern |
|
|
|
| 6ACV1106 |
Maximum Flow Rate: Air - 20000 mL/min, Water - 1200 mL/min, 0.082 Orifice, 0.10 Cv, Straight Flow Pattern |
|
|
|
| 6ACV1104 |
Maximum Flow Rate: Air - 5000 mL/min, Water - 350 mL/min, 0.052 Orifice, 0.03 Cv, 90 Degree Flow Pattern |
|
|
|
| 6ACV1102 |
Maximum Flow Rate: Air - 5000 mL/min, Water - 350 mL/min, 0.052 Orifice, 0.03 Cv, Straight Flow Pattern |
|
|
|
| 6ACV1112 |
Maximum Flow Rate: Air - 60000 mL/min, Water - 3500 mL/min, 0.12 Orifice, 0.30 Cv, 90 Degree Flow Pattern |
|
|
|
| 6ACV1110 |
Maximum Flow Rate: Air - 60000 mL/min, Water - 3500 mL/min, 0.12 Orifice, 0.30 Cv, Straight Flow Pattern |
|
|
|
| Check the items you wish to purchase, then click
|
|
