The 6B0300-H2O is a high volume flow meter offering excellent accuracy and repeatability.  Combined with a durable injection molded Polysulfone meter body and connections, this flow meter offers cost effective 316 SS internal parts.  This flow meter is designed for inline mounting.

With a 1" FNPT connection, this line has a liquid flow range of 0.5  to 40 GPM (2 - 155 LPM).  Half unions couple the meter body to the connectors at each end of the flow meter, facilitating both installation and maintenance.

For high volume flow measurements at low pressure losses, injection molded Hi-low “In-line” flow meters offers features of glass and metal flow meters at a fraction of their cost. These uniquely designed flow meters incorporate 2" FNPT connections, convenient "half unions" that couple the meter body to the connections, #316 stainless steel internal parts and Viton^® O-rings. Hi-Flow flow meters render excellent accuracies and repeatability and are virtually maintenance free.

The 6B0305-H2O is a high volume series of flow meters offering excellent accuracy and repeatability.  Combined with a durable injection molded Polysulfone meter body and connections, this flow meter offers cost effective 316 SS internal parts.  This flow meter is designed for inline mounting.

With connections of 1.5" FNPT, this line has a liquid flow range of 0.5  to 40 GPM (2 - 155 LPM).  Half unions couple the meter body to the connectors at each end of the flow meter, facilitating both installation and maintenance.

The 6B06 series flow meter's rib guided polysulfone contains no metal in the fluid path. This makes the flow meter desirable in highly corrosive environments or deionized water applications.  The 6B0601-PVDF is equipped with 1" FNPT Adapters.

The 6B06 series flow meter's rib guided polysulfone contains no metal in the fluid path. This makes the flow meter desirable in highly corrosive environments or deionized water applications.  The 6B0600-PVC is equipped with 1" FNPT Adapters.

The 6B0301-H2O is a high volume series of flow meters offering excellent accuracy and repeatability.  Combined with a durable injection molded Polysulfone meter body and connections, this flow meter offers cost effective 316 SS internal parts.  This flow meter is designed to be panel mounted.

With a 1" FNPT connection, this line has a liquid flow range of 0.5  to 40 GPM (2 - 155 LPM).  Half unions couple the meter body to the connectors at each end of the flow meter, facilitating both installation and maintenance.

The 6B05 series flow meter's rib guided polysulfone contains no metal in the fluid path. This makes the flow meter desirable in highly corrosive environments or deionized water applications.  The 6B0500-PVC is equipped with 1/2" or 3/4" FNPT Adapters.

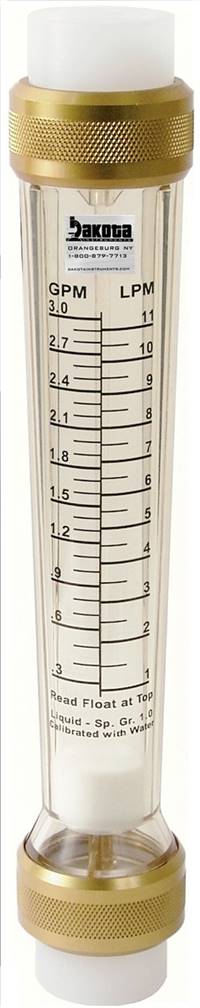

The 6B05 series flow meter's rib guided polysulfone contains no metal in the fluid path. This makes the flow meter desirable in highly corrosive environments or deionized water applications.  The 6B0501-PVDF is equipped with 1/2" or 3/4" PVDF FNPT Adapters.

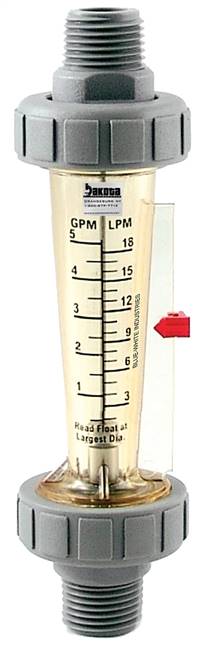

These compact, durable flow meter units are injection molded of heat and chemical resistant Polysulfone.  To facilitate inline mounting, these meters feature Quik Loc (half union) connectors that couple the meter body to the pipe connectors at each end of the flow meter. The 6B0100 line has a fluid flow range of 0.025 GPM to 10 GPM.

These compact, durable flow meter units are injection molded of heat and chemical resistant Polysulfone. They feature curved Quik Loc (half union) connectors that easily couple the meter body to the pipe connectors at each end of the flow meter. Designed to be Panel Mounted.

With connections of 3/8" MNPT or 1/2" MNPT, the 6B0102 has a fluid flow range of 0.025 GPM to 10 GPM.
