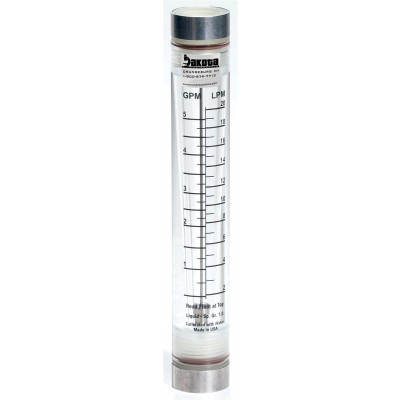

Acrylic In-Line Flow Meter, Polypropylene Connector, No Valve - Water

Acrylic In-Line Flow Meter, Polypropylene Connector, No Valve - Water
  • Tough Machined Acrylic Meter Body, Highly Polished Clear Finish.
  • Easy to Read Direct Reading Dual Scales (GPM/LPM)
  • White Back Reflector for Easy Reading
  • Scale Length Approximately 4 inches (100mm).
  • FNPT Adapters with High Grade Viton® 0-Rings Seals.
  • Standard Models 316SS or PVC Float Materials. (Optional Hastelloy® C-276).
  • Standard Models 316SS Float Guide Rods (Optional Hastelloy® C-276).
  • Acceptable in Direct Sunlight Applications
  • Easy to Assemble and Install.
Specifications 6B4100-H2O
Accuracy: +/- 5 % of Full Scale reading
Maximum Fluid Temperature:
Polypropylene Adapters - 65 ° C (150° F) @ 0 PSI
Maximum Working Pressure:
10.3 bars (150 psig) @ 21 ° C (70° F)
Maximum Pressure Drop: 2 PSI
Meter Body Material:
Acrylic
Adapter Material:
Polypropylene
O-Ring Seals:
Viton® (Optional EP)
Guide Rod:
316 SS (Optional Hastelloy® )
Calibration Fluid:
Water, Specific Gravity 1.0
Usually Ships in 5 to 7 Business Days
Item # Item Description Item Price Subtotal Qty
6B4100-01B Flow Range: 0.025 TO 0.250 GPM, 0.1 TO 1.0 LPM , Height: 8 3/16", Float: PVDF, Adapter: 1/4" FNPT $96.00 $0.00
6B4100-01C Flow Range: 0.025 TO 0.250 GPM, 0.1 TO 1.0 LPM , Height: 8 3/16", Float: PVDF, Adapter: 3/8" FNPT $96.00 $0.00
6B4100-02B Flow Range: 0.050 TO 0.500 GPM, 0.2 TO 2.0 LPM, Height: 8 3/16", Float: 316 SS, Adapter: 1/4" FNPT $96.00 $0.00
6B4100-02C Flow Range: 0.050 TO 0.500 GPM, 0.2 TO 2.0 LPM, Height: 8 3/16", Float: 316 SS, Adapter: 3/8" FNPT $96.00 $0.00
6B4100-03C Flow Range: 0.1 TO 1.0 GPM, 0.4 TO 4.0 LPM, Height: 8 3/16", Float: PTFE, Adapter: 3/8" FNPT $82.00 $0.00
6B4100-03D Flow Range: 0.1 TO 1.0 GPM, 0.4 TO 4.0 LPM, Height: 8 3/16", Float: PTFE, Adapter: 1/2" FNPT $82.00 $0.00
6B4100-04C Flow Range: 0.2 TO 2.0 GPM, 1.0 TO 7.5 LPM, Height: 8 3/16", Float: 316 SS, Adapter: 3/8" FNPT $82.00 $0.00
6B4100-04D Flow Range: 0.2 TO 2.0 GPM, 1.0 TO 7.5 LPM, Height: 8 3/16", Float: 316 SS, Adapter: 1/2" FNPT $82.00 $0.00
6B4100-05C Flow Range: 0.3 TO 3.0 GPM, 1.5 TO 11 LPM, Height: 8 3/16", Float: 316 SS, Adapter: 3/8" FNPT $88.00 $0.00
6B4100-05D Flow Range: 0.3 TO 3.0 GPM, 1.5 TO 11 LPM, Height: 8 3/16", Float: 316 SS, Adapter: 1/2" FNPT $88.00 $0.00
6B4100-06C Flow Range: 0.5 TO 5.0 GPM, 2.0 TO 20 LPM, Height: 8 3/16", Float: 316 SS, Adapter: 3/8" FNPT $82.00 $0.00
6B4100-06D Flow Range: 0.5 TO 5.0 GPM, 2.0 TO 20 LPM, Height: 8 3/16", Float: 316 SS, Adapter: 1/2" FNPT $82.00 $0.00
