Dakota

Dakota offers a wide variety of flow meters, pumps and valves along with the related accessories you require for your applications.

1-18 of 269

Page:
  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
  10. 10
  11. 11
  12. 12
  13. 13
  14. 14
  15. 15
  1. Water Flow Meter - Acrylic, Brass Fittings

    Water Flow Meter - Acrylic, Brass Fittings

    Available for multiple flow rates, this Acrylic Flow Meter has a Dual Direct Reading Scale with yellow backing for easy viewing of Water flow values. Viton Seals, 1/8" FNPT and Brass End fittings are standard. The float material varies based on the metering range (316 SS, Carboloy, Glass).
  2. Nitrogen Flow Meter - Acrylic, Brass Fittings

    Nitrogen Flow Meter - Acrylic, Brass Fittings

    Available for multiple flow rates, this Acrylic Flow Meter has a Dual Direct Reading Scale with yellow backing for easy viewing of Nitrogen flow values. Viton Seals, 1/8" FNPT and Brass End fittings are standard. The float material varies based on the metering range (316 SS, Carboloy, Glass).

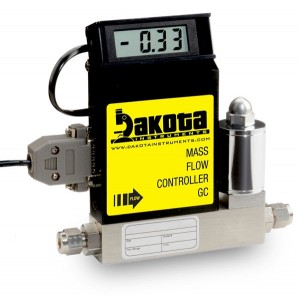

  3. Model shown with optional LCD Readout Display

    GC1 Series - Hydrogen Mass Flow Controller - Aluminum, Low Flow, With or Without LCD Readout, 1/4 Inch Compression Fittings, 0-5VDC Analog Input/Output

    Dakota's Mass Flow Controllers are compact, self contained and easy to read. The rugged design and instrumentation grade accuracy provide versatile and economical means of flow control ideal in laboratory and industrial settings. The built-in electromagnetic valve allows the flow to be set to any desired flow rate within range of a particular model. Set points may be controlled either locally or remotely.

    Available in flow ranges from 10 mL/min to 1000L/min relative to Nitrogen. Accuracy +/-1% full scale for models up to 100 Liters per minute.

  4. Model shown with optional LCD Readout Display

    GC1 Series - Hydrogen Mass Flow Controller - Stainless Steel, Low Flow, With or Without LCD Readout, 1/4 Inch Compression Fittings, 0-5VDC Analog Input/Output

    Dakota's Mass Flow Controllers are compact, self contained and easy to read. The rugged design and instrumentation grade accuracy provide versatile and economical means of flow control ideal in laboratory and industrial settings. The built-in electromagnetic valve allows the flow to be set to any desired flow rate within range of a particular model. Set points may be controlled either locally or remotely.

    Available in flow ranges from 10 mL/min to 1000L/min relative to Nitrogen. Accuracy +/-1% full scale for models up to 100 Liters per minute.

  5. Industrial Stainless Steel In-Line Flow Meter, NPT Connector, No Valve (M Meter)

    Industrial Stainless Steel In-Line Flow Meter, NPT Connector, No Valve (M Meter)

    Heavy-duty flow meters are fully enclosed in a brushed stainless steel case. Ideal for industrial applications with flow rates of up to 116 GPM / 440 L/min and 250 SCFM / 7080 L/min. Used for flow measurements of liquids (water) and gases (air.) Meters are graduated for direct reading of water and air. Wetted parts include borosilicate glass flow tubes, Viton™ O-rings and 316 Stainless Steel fittings, guide rods and float stops. These flow meters come with FNPT end fittings.
  6. Industrial Stainless Steel Flanged Flow Meter, Flange Connector, No Valve (M Meter)

    Industrial Stainless Steel Flanged Flow Meter, Flange Connector, No Valve (M Meter)

    Heavy-duty flow meters are fully enclosed in a brushed stainless steel case. Ideal for industrial applications with flow rates of up to 116 GPM / 440 L/min and 250 SCFM / 7080 L/min. Used for flow measurements of liquids (water) and gases (air.) Meters are graduated for direct reading of water and air. Wetted parts include borosilicate glass flow tubes, Viton® O-rings and 316 Stainless Steel fittings, guide rods and float stops. These flow meters come with flanged end fittings for easy in-line installation.
  7. Polysulfone Panel Mount Flow Meter with Polysulfone Connections - Water, 2" GPM/LPM or GPH/LPH Scales, No Valve

    Polysulfone Panel Mount Flow Meter with Polysulfone Connections - Water, 2" GPM/LPM or GPH/LPH Scales, No Valve

    These compact, durable flow meter units are injection molded of heat and chemical resistant Polysulfone. They feature Quik Loc (half union) connectors that couple the meter body to the pipe connectors at each end of the flow meter. These meters are designed with curved connections for easy panel mounting.

    With connections of 3/8" MNPT or 1/2" MNPT, the 6B0101 has a fluid flow range of 0.025 GPM to 60 GPM.
  8. Polysulfone Panel Mount Flow Meter with Polysulfone Connections - Water, 2" GPM/LPM or GPH/LPH Scales, Adjustable Needle Valve

    Polysulfone Panel Mount Flow Meter with Polysulfone Connections - Water, 2" GPM/LPM or GPH/LPH Scales, Adjustable Needle Valve

    These compact, durable flow meter units are injection molded of heat and chemical resistant Polysulfone. They feature curved Quik Loc (half union) connectors that easily couple the meter body to the pipe connectors at each end of the flow meter. Designed to be Panel Mounted.

    With connections of 3/8" MNPT or 1/2" MNPT, the 6B0102 has a fluid flow range of 0.025 GPM to 60 GPM.
  9. Polysulfone Panel Mount Flow Meter with Polysulfone Connections - Water, 4" GPM/LPM Scales, No Valve

    Polysulfone Panel Mount Flow Meter with Polysulfone Connections - Water, 4" GPM/LPM Scales, No Valve

    The 6B02 series flow meters offer a tough injection molded Polysulfone meter body, corrosion and wear resistant internal parts, easy to read silk screened scales, good accuracy and repeatability and an excellent price! This flow meter is designed for panel mounting. With brass connections of 3/8"or 1/2" MNPT/FNPT, the 6B02 line has a liquid flow range of 0.1 GPM to 10 GPM (0.4 LPM to 40 LPM).
  10. Polysulfone Panel Mount Flow Meter with Polysulfone Connections - Water, 4" GPM/LPM Scales, Adjustable Needle Valve

    Polysulfone Panel Mount Flow Meter with Polysulfone Connections - Water, 4" GPM/LPM Scales, Adjustable Needle Valve

    The 6B02 series flow meters offer a tough injection molded Polysulfone meter body, corrosion and wear resistant internal parts, easy to read silk screened scales, good accuracy and repeatability and an excellent price! This flow meter has an adjustable valve and is designed for panel mounting. With connections of 3/8"or 1/2" MNPT/FNPT, the 6B02 line has a liquid flow range of 0.1 GPM to 10 GPM (0.4 LPM to 40 LPM).
  11. Polysulfone High Volume Panel Mount Flow Meter with Polysulfone Connections - Water (GPM/LPM), No Valve

    Polysulfone High Volume Panel Mount Flow Meter with Polysulfone Connections - Water (GPM/LPM), No Valve

    The 6B0301-H2O is a high volume series of flow meters offering excellent accuracy and repeatability. Combined with a durable injection molded Polysulfone meter body and connections, this flow meter offers cost effective 316 SS internal parts. This flow meter is designed to be panel mounted. With a 1" FNPT connection, this line has a liquid flow range of 0.5 to 40 GPM (2 - 155 LPM). Half unions couple the meter body to the connectors at each end of the flow meter, facilitating both installation and maintenance.
  12. Model pictured without brass connections

    Polysulfone High Volume In-Line Flow Meter with Brass Connections - Water (GPM/LPM), No Valve

    The 6B0302-H2O is a high volume series of flow meters offering excellent accuracy and repeatability. Combined with a durable injection molded Polysulfone meter body and connections, this flow meter offers brass adapters and cost effective 316 SS internal parts. This flow meter is designed to be mounted inline. With a 1" FNPT connection, this line has a liquid flow range of 0.5 to 40 GPM (2 - 155 LPM). Half unions couple the meter body to the connectors at each end of the flow meter, facilitating both installation and maintenance.
  13. Polysulfone In-Line Flow Meter with FNPT PVC Connections - Water (GPM/LPM)

    Polysulfone In-Line Flow Meter with FNPT PVC Connections - Water (GPM/LPM)

    The 6B05 series flow meter's rib guided polysulfone contains no metal in the fluid path. This makes the flow meter desirable in highly corrosive environments or deionized water applications. The 6B0500-PVC is equipped with 1/2" or 3/4" FNPT Adapters.
  14. Polysulfone In-Line Flow Meter with FNPT PVDF Connections - Water (GPM/LPM)

    Polysulfone In-Line Flow Meter with FNPT PVDF Connections - Water (GPM/LPM)

    The 6B05 series flow meter's rib guided polysulfone contains no metal in the fluid path. This makes the flow meter desirable in highly corrosive environments or deionized water applications. The 6B0501-PVDF is equipped with 1/2" or 3/4" PVDF FNPT Adapters.
  15. Polysulfone In-Line Flow Meter, Socket Fusion Polypropylene Connections - Water (GPM/LPM)

    Polysulfone In-Line Flow Meter, Socket Fusion Polypropylene Connections - Water (GPM/LPM)

    The 6B05 series flow meter's rib guided polysulfone contains no metal in the fluid path. This makes the flow meter desirable in highly corrosive environments or deionized water applications. The 6B0502-Poly is equipped with 1/2" or 3/4" FNPT Polypropylene Adapters.
  16. Polysulfone In-Line Flow Meter, Socket Fusion PVDF Connections - Water (GPM/LPM)

    Polysulfone In-Line Flow Meter, Socket Fusion PVDF Connections - Water (GPM/LPM)

    The 6B05 series flow meter's rib guided polysulfone contains no metal in the fluid path. This makes the flow meter desirable in highly corrosive environments or deionized water applications. The 6B0503-PVC is equipped with 1/2" or 3/4" FNPT PVDF Adapters.
  17. Polysulfone High Volume In-Line Flow Meter with 1" Socket Fusion Polypropylene Connections - Water (GPM/LPM)

    Polysulfone High Volume In-Line Flow Meter with 1" Socket Fusion Polypropylene Connections - Water (GPM/LPM)

    The 6B06 series flow meter's rib guided polysulfone contains no metal in the fluid path. This makes the flow meter desirable in highly corrosive environments or deionized water applications. The 6B0602 is equipped with 1" Socket Fusion Polypropylene Adapters.
  18. Polysulfone High Volume In-Line Flow Meter with 2" Socket Fusion Polysulfone Connections - Water (GPM/LPM)

    Polysulfone High Volume In-Line Flow Meter with 2" Socket Fusion Polysulfone Connections - Water (GPM/LPM)

    Polysulfone Flow Meters are designed with chemical and heat resistant one-piece injection-molded polysulfone. Built compact for tight installation spaces, the tough meter body resists high temperatures and pressures. In- line or panel mount configurations are available. Units feature Quik Loc (half union) connectors. that couple the meter to the pipe connectors at each end of the flow meter. For panel mounting, simply drill two holes in your panel, insert the meter fittings through the holes and secure with lock nuts. Rotate for easy reading.
