SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min, Dosing Volume 0.03 - 999 mL

SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min, Dosing Volume 0.03 - 999 mL

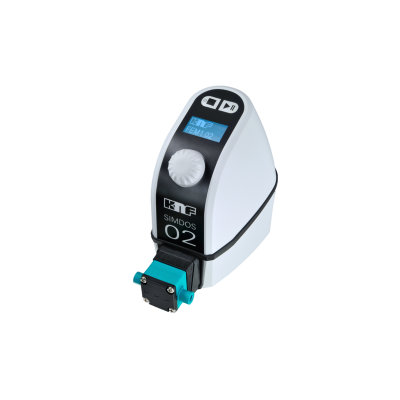

Image for illustrative purposes only, actual product may vary.

SIMDOS® 02 Liquid dosing/metering diaphragm pump. Offers wetted material combinations for optimal chemical resistance. It works with simple and intuitive operation, offers easy calibration while maintaining a small footprint. Manual control of flow rate and dosing volume with LCD graphic display.
Analog and impulse control available with "R" Models
"RP" Models include Analog and impulse control plus RS-232 digital communication.
  • Flow Range: 30 µL/min to 20 mL/min
  • Dosing Volume: 30 µL to 999 mL
  • Simple and Intuitive Operation
  • Easy Calibration
  • Cycle Mode
  • Adaptable to Fluid Characteristics
  • Self priming, can run dry
  • Analog and Impulse Control (R and RP Models)
  • Splashproof IP65
  • Small Footprint
Specifications 6KNFM02 Simdos 02
Flow Rate: 30 µL/min to 20 mL/min
Dosing Volume:
1 to 999 mL
Suction Height:
9.8 ft Water
Max Pressure:
85 PSIG
Main Supply:
100 - 240V / 50 - 60 Hz
Allowed Ambient Temperature:
+5° to +40°C
Allowed Liquid Temperature:
+5° to 80°C
Viscosity Settings**
Up to 500 cSt**
**Reduced flow rate above 150 cSt
Repeatability:
+/-1%
Power Consumption:
24 W
Protection Class
IP65
Dimensions LxHxW (mm):
150 x 93 x 144 mm
Weight:
0.9 kg (2 lbs)

Usually Ships in 5 to 7 Business Days
Item # Item Description Item Price Subtotal Qty
6KNFM02-K SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min; [Pump Head - PP, Diaphragm - PTFE Coated, Valves - FFKM, Filter - PEEK] $2,251.00 $0.00
6KNFM02-T SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min; [Pump Head - PVDF, Diaphragm - PTFE Coated, Valves - FFKM, Filter - PVDF] $2,412.00 $0.00
6KNFM02-F SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min; [Pump Head - PTFE, Diaphragm - FFKM, Valves - FFKM, Filter - PEEK] $4,149.00 $0.00
6KNFM02-S SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min; [Pump Head - Stainless Steel, Diaphragm - PTFE Coated, Valves - FFKM, FIlter - PEEK] $5,386.00 $0.00
6KNFM02-KR SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min; [Pump Head - PP, Diaphragm - PTFE Coated, Valves - FFKM, Filter - PEEK] with Remote Analog Control $2,536.00 $0.00
6KNFM02-TR SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min; [Pump Head - PVDF, Diaphragm - PTFE Coated, Valves - FFKM, Filter - PVDF] with Remote Analog Control $2,696.00 $0.00
6KNFM02-FR SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min; [Pump Head - PTFE, Diaphragm - FFKM, Valves - FFKM, Filter - PEEK] with Remote Analog Control $4,436.00 $0.00
6KNFM02-SR SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min; Pump Head - Stainless Steel, Diaphragm - PTFE Coated, Valves - FFKM, FIlter - PEEK with Remote Analog Control $5,672.00 $0.00
6KNFM02-KRP SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min; [Pump Head - PP, Diaphragm - PTFE Coated, Valves - FFKM, Filter - PEEK] with Remote Analog Control plus RS232 $2,975.00 $0.00
6KNFM02-TRP SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min; [Pump Head - PVDF, Diaphragm - PTFE Coated, Valves - FFKM, Filter - PVDF] with Remote Analog Control plus RS232 $3,253.00 $0.00
6KNFM02-FRP SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min; [Pump Head - PTFE, Diaphragm - FFKM, Valves - FFKM, Filter - PEEK] with Remote Analog Control plus RS232 $4,864.00 $0.00
6KNFM02-SRP SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min; [Pump Head - Stainless Steel, Diaphragm - PTFE Coated, Valves - FFKM, Filter - PEEK] with Remote Analog Control plus RS232 $6,117.00 $0.00
6KNFM02-FV SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min; [Pump Head - PTFE, Diaphragm - FFKM, Chemraz® Valves, Filter - PEEK] $4,365.00 $0.00
6KNFM02-FRV SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min; [Pump Head - PTFE, Diaphragm - FFKM, Chemraz® Valves, Filter - PEEK] with Remote Analog Control $4,653.00 $0.00
6KNFM02-FRPV SIMDOS® 02 - Liquid Metering Pump Flow Range 0.03 - 20 mL/Min; [Pump Head - PTFE, Diaphragm - FFKM, Chemraz® Valves, Filter - PEEK] with Remote Analog Control plus RS232 $5,082.00 $0.00
