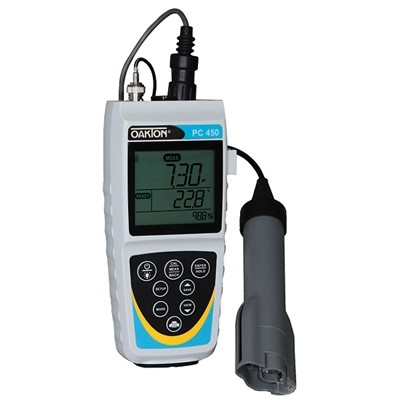

Oakton® Waterproof pH/CON 450 Meter (WD-35630)

The pH/CON 450 meter offers a rugged, waterproof housing, making it ideal for the manufacturing floor, field testing, and the laboratory. Large, backlit LCD lets you view the main measurement simultaneously with temperature. Calibrate pH with up to six points from USA, NIST, DIN, PWB, and custom pH buffer sets. Autocal feature for conductivity has one calibration point per range. ATC ensures measurement accuracy even in fluctuating temperatures

Meter features include ready (stability) indicator, smart averaging, user-selectable C/F units, hold function, calibration alarm, battery life-indicator, and electrode status.

Perform data logging with manual or timed collection of up to 500 data sets with real-time clock time/date stamp. Order optional data cable for USB and RS-232 connectivity. Choose combination pH/CON probe or separate probe options.

  • Meter with combination pH/conductivity/temperature probe or separate pH and conductivity/temperature probes.
  • Intuitive, user-friendly icons--electrode status displays pH slope
  • Grip-Clip holder quickly and easily secures the electrode to the side of your beaker or container
  • USB or RS-232 output for up to 150 data sets
  • Extended battery-life or optional AC power adapter
  • Built-in stand and wall mount option allow for easy benchtop measurement or storage
Specifications WD-35630
Measures: pH, mV, Conductivity, TDS, Salinity, °C / °F
pH Range:
-2.00 to 16.00 pH
pH Resolution:
0.01 pH
pH Accuracy:
+/- 0.01 pH
pH Calibration:
Up to 6 points; USA, NIST, DIN, PWB and custom buffers
mV Range:
+/-2000 mV
mV Resolution:
0.1 to 1 mV
mV Accuracy:
+/-0.2 mV +/-2 LSD or +/-5% of reading; whichever is greater
mV Calibration:
+/-200 mV
Conductivity Range:
0 to 200 mS
Conductivity Resolution:
0.01 µS to 0.1 mS
Conductivity Accuracy:
+/-1% full scale
Conductivity Calibration:
One point per range
TDS Range:
0 to 200 ppt
TDS Resolution:
0.01 ppm to 0.1 ppm
TDS Accuracy:
+/- 1% full scale
TDS Calibration:
One point per range
Temperature Range:
-10.0 to 110.0°C
Temperature Resolution:
0.1°C

Temperature Accuracy:
+/- 0.5°C

Temperature Calibration:
Offset 0.1°C
increments
ATC: Automatic or manual
Power:
2 AA batteries; optional AC adapter
Memory:
500 data sets
Optional AC Power:
Yes
Real Time Clock:
Yes
RS-232:
Yes
Built-in Stand: Yes
Dual Display:
Yes
Waterproof / Dustproof (IP67):
Yes
Dimensions:
7 7/8" x 3 1/8" x 2 1/4" (20 x 8.3 x 5.7 cm)

Usually Ships in 3 to 4 Weeks
Item #Item DescriptionItem PriceSubtotalQty
WD-35630-10Oakton Waterproof pH/CON 450 Meter with Combination probe (WD-35630-10) $1,612.00 $0.00
WD-35630-11Oakton Waterproof pH/CON 450 Meter with Combination probe with NIST certification (WD-35630-11) $2,104.00 $0.00
WD-35630-12Oakton Waterproof pH/CON 450 Meter with Separate probes (WD-35630-12) $1,671.00 $0.00
WD-35630-13Oakton Waterproof pH/CON 450 Meter with Separate probes, NIST certification (WD-35630-13) $1,929.00 $0.00
WD-35630-80Oakton Waterproof pH/CON 450 Meter with Combination probe Kit (WD-35630-80) $1,885.00 $0.00
WD-35630-81Oakton Waterproof pH/CON 450 Meter with Combination probe Kit, NIST certification (WD-35630-81) $2,284.00 $0.00
WD-35630-90Oakton Waterproof pH/CON 450 Meter with Separate probes Kit (WD-35630-90) $1,846.00 $0.00
WD-35630-91Oakton Waterproof pH/CON 450 Meter with Separate probes Kit, NIST certification (WD-35630-91) $2,084.00 $0.00
WD-35630-32Oakton Waterproof pH/CON 450 Meter Only (WD-35630-32) $1,336.00 $0.00
