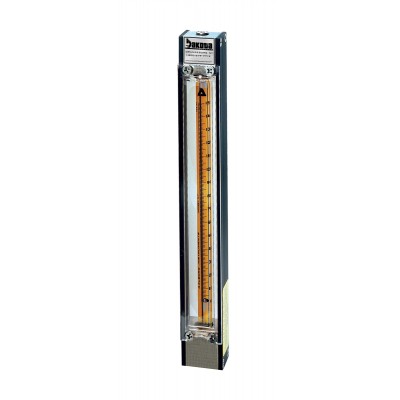

150mm Stainless Steel Flow Meter, No Valve

Designed for low flow rates, these 150mm Single Tube Stainless Steel Flow Meters are precision instruments embodying the inherent simplicity, versatility and economy of the classical variable area meter. They are particularly suitable for metering carrier gases in chromatography, in manufacturing processes, liquid and gas measurements in laboratories, pilot plants, flow and level indicating and controlling gases. No Valve.
  • Rib-guided or fluted metering tubes facilitate stable, accurate readings.
  • Magnifier lens in front shield enhance reading resolution
  • Interchangeability of flow tubes and floats
  • Ease of installation and exchange of flow tubes
  • Simple means of panel mounting
  • Chemical compatibility
Specifications: 6AP01; 6AP11; 6AP21
Standard Accuracy: +/- 2% of full scale (mm scales)
+/- 5% of full scale (direct reading scales)
Repeatability: +/- 0.25%
Useful Flow Ranges: 10:1 minimum with one float and better than 20:1 with combination of two floats installed in meters.
Maximum Operating Pressure: 200 psig / 13.8 bars
Maximum Operating Temperature: 121° C (250° F)
Flow Tubes: Heavy walled borosilicate glass
Tube Shields: Thick, clear, polycarbonate and white acrylic
Floats: Glass, Sapphire, 316 Stainless Steel, Carboloy®
Choice Of Fittings in Contact with Fluids: a) Aluminum, black anodized
b) Brass, chrome plated
c) 316 stainless steel
Side Panels: Aluminum, black anodized.
Front Shield and Back Plate: Lexan® with longitudinal magnifier lens for enhanced reading resolution.
O-rings and Packings: Buna-N® O-rings in aluminum and brass models. Viton® O-rings in 316 stainless steel models. OPTIONAL Viton® PTFE Kalrez® and EPR
Connections: 1/8" NPT female inlet and outlet connections OPTIONAL Glass hose or compression fittings.
Usually Ships in 5 to 7 Business Days
Item # Item Description Item Price Subtotal Qty
6AP2101N1 Maximum Flow Range: Air - 11.6 ml/min (0.024 scfh) Glass Float, No Valve $276.00 $0.00
6AP2102N1 Maximum Flow Range: Air - 18.3 ml/min (0.038 scfh) Sapphire Float, No Valve $276.00 $0.00
6AP2103N1 Maximum Flow Range: Air - 34 ml/min (0.07 scfh) 316 SS Float, No Valve $276.00 $0.00
6AP2104N1 Maximum Flow Range: Air - 62.8 ml/min (0.13 scfh) Carboloy Float, No Valve $276.00 $0.00
6AP2105N1 Maximum Flow Range: Air - 46.6 ml/min (0.098 scfh) | Water 0.50 ml/min (0.007 gph) Glass Float, No Valve $276.00 $0.00
6AP2106N1 Maximum Flow Range: Air - 73.1 ml/min (0.154 scfh) | Water 0.99 ml/min (0.015 gph) Sapphire Float, No Valve $276.00 $0.00
6AP2107N1 Maximum Flow Range: Air - 138.3 ml/min (0.293 scfh) | Water 2.36 ml/min (0.037 gph) 316 SS Float, No Valve $276.00 $0.00
6AP2108N1 Maximum Flow Range: Air - 239.1 ml/min (0.506 scfh) | Water 4.60 ml/min (0.072 gph) Carboloy Float, No Valve $276.00 $0.00
6AP2109N1 Maximum Flow Range: Air - 91.6 ml/min (0.194 scfh) | Water 1.13 ml/min (0.020 gph) Glass Float, No Valve $276.00 $0.00
6AP2110N1 Maximum Flow Range: Air - 144.3 ml/min (0.306 scfh) | Water 2.19 ml/min (0.035 gph) Sapphire Float, No Valve $276.00 $0.00
6AP2111N1 Maximum Flow Range: Air - 262.2 ml/min (0.556 scfh) | Water 4.97 ml/min (0.079 gph) 316 SS Float, No Valve $276.00 $0.00
6AP2112N1 Maximum Flow Range: Air - 431.7 ml/min (0.915 scfh) | Water 9.23 ml/min (0.146 gph) Carboloy Float, No Valve $276.00 $0.00
6AP2113N1 Maximum Flow Range: Air - 370.6 ml/min (0.784 scfh) | Water 5.71 ml/min (0.090 gph) Glass Float, No Valve $276.00 $0.00
6AP2114N1 Maximum Flow Range: Air - 513.3 ml/min (1.087 scfh) | Water 10.00 ml/min (0.158 gph) Sapphire Float, No Valve $276.00 $0.00
6AP2115N1 Maximum Flow Range: Air - 816.0 ml/min (1.729 scfh) | Water 19.2 ml/min (0.301 gph) 316 SS Float, No Valve $276.00 $0.00
6AP2116N1 Maximum Flow Range: Air - 1216.9 ml/min (2.579 scfh) | Water 31.6 ml/min (0.500 gph) Carboloy Float, No Valve $276.00 $0.00
6AP2117N1 Maximum Flow Range: Air - 817 ml/min (1.731 scfh) | Water 15.2 ml/min (0.240 gph) Glass Float, No Valve $276.00 $0.00
6AP2118N1 Maximum Flow Range: Air - 1093 ml/min (2.316 scfh) | Water 24.9 ml/min (0.394 gph) Sapphire Float, No Valve $276.00 $0.00
6AP2119N1 Maximum Flow Range: Air - 1665 ml/min (3.528 scfh) | Water 44.3 ml/min (0.702 gph) 316 SS Float, No Valve $276.00 $0.00
6AP2120N1 Maximum Flow Range: Air - 2405 ml/min (5.096 scfh) | Water 69.0 ml/min (1.094 gph) Carboloy Float, No Valve $276.00 $0.00
6AP2121N1 Maximum Flow Range: Air - 2214 ml/min (4.690 scfh) | Water 49.9 ml/min (0.792 gph) Glass Float, No Valve $276.00 $0.00
6AP2122N1 Maximum Flow Range: Air - 2975 ml/min (6.300 scfh) | Water 77.7 ml/min (1.234 gph) Sapphire Float, No Valve $276.00 $0.00
6AP2123N1 Maximum Flow Range: Air - 4494 ml/min (9.520 scfh) | Water 132.5 ml/min (2.092 gph) 316 SS Float, No Valve $276.00 $0.00
6AP2124N1 Maximum Flow Range: Air - 6467 ml/min (13.70 scfh) | Water 203.2 ml/min (3.218 gph) Carboloy Float, No Valve $276.00 $0.00
6AP2125N1 Maximum Flow Range: Air - 3780 ml/min (8.00 scfh) | Water 89 ml/min (1.411 gph) Glass Float, No Valve $276.00 $0.00
6AP2126N1 Maximum Flow Range: Air - 4942 ml/min (10.47 scfh) | Water 134 ml/min (2.124 gph) Sapphire Float, No Valve $276.00 $0.00
6AP2127N1 Maximum Flow Range: Air - 7720 ml/min (16.35 scfh) | Water 234 ml/min (3.70 gph) 316 SS Float, No Valve $276.00 $0.00
6AP2128N1 Maximum Flow Range: Air - 10780 ml/min (22.84 scfh) | Water 343 ml/min (5.437 gph) Carboloy Float, No Valve $276.00 $0.00
6AP2129N1 Maximum Flow Range: Air - 8555 ml/min (18.12 scfh) | Water 200 ml/min (3.170 gph) Glass Float, No Valve $276.00 $0.00
6AP2130N1 Maximum Flow Range: Air - 11140 ml/min (23.60 scfh) | Water 301 ml/min (4.771 gph) Sapphire Float, No Valve $291.00 $0.00
6AP2131N1 Maximum Flow Range: Air - 16493 ml/min (34.94 scfh) | Water 498 ml/min (7.893 gph) 316 SS Float, No Valve $276.00 $0.00
6AP2132N1 Maximum Flow Range: Air - 23001 ml/min (48.73 scfh) | Water 736 ml/min (11.67 gph) Carboloy Float, No Valve $286.00 $0.00
6AP2133N1 Maximum Flow Range: Air - 23105 ml/min (48.95 scfh) | Water 579 ml/min (9.177 gph) Glass Float, No Valve $286.00 $0.00
6AP2134N1 Maximum Flow Range: Air - 29410 ml/min (62.30 scfh) | Water 833 ml/min (13.2 gph) Sapphire Float, No Valve $291.00 $0.00
6AP2135N1 Maximum Flow Range: Air - 42860 ml/min (90.80 scfh) | Water 1339 ml/min (21.22 gph) 316 SS Float, No Valve $286.00 $0.00
6AP2136N1 Maximum Flow Range: Air - 60212 ml/min (127.5 scfh) | Water 1972 ml/min (31.26 gph) Carboloy Float, No Valve $286.00 $0.00
