Acrylic In-Line Flow Meter with 316 Stainless Steel Guide Rods, Polypropylene Connector, No Valve - Water

Acrylic In-Line Flow Meter with 316 Stainless Steel Guide Rods, Polypropylene Connector, No Valve - Water

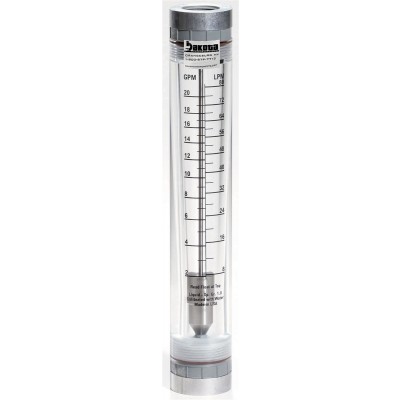

Image for illustrative purposes only, actual product may vary.

Acrylic In-Line Flow Meter with 316 Stainless Steel Guide Rods, Polypropylene Connector, No Valve - Water

Tough Machined Acrylic Meter Body, Highly Polished Clear Finish.
Easy to Read Direct Reading Dual Scales (GPM/LPM)
White Back Reflector for Easy Reading
Scale Length Approximately 4 inches (100mm).
FNPT Adapters with High Grade Viton® 0-Rings Seals.
Standard Models 316SS or PVC Float Materials.
Standard Models 316SS Float Guide Rods
Acceptable in Direct Sunlight Applications
Easy to Assemble and Install.

Specifications		6B4200-H2O
Accuracy:		+/- 5 % of Full Scale reading
Maximum Fluid Temperature:		Polypropylene Adapters - 65 ° C (150° F) @ 0 PSI
Maximum Working Pressure:		10.3 bars (150 psig) @ 21 ° C (70° F)
Maximum Pressure Drop:		2 PSI
Meter Body Material:		Acrylic
Adapter Material:		Polypropylene
O-Ring Seals:		Viton® (Optional EP)
Guide Rod:		316 SS
Calibration Fluid:		Water, Specific Gravity 1.0

Usually Ships in 2 weeks

Item #	Item Description	Item Price	Subtotal	Qty
6B4200-01E	Flow Range: 1.0 TO 10 GPM, 4.0 TO 38 LPM, Height: 11", Float: 316 SS, Adapter: 3/4" FNPT	$303.00	$0.00
6B4200-01F	Flow Range: 1.0 TO 10 GPM, 4.0 TO 38 LPM, Height: 11", Float: 316 SS, Adapter: 1" FNPT	$303.00	$0.00
6B4200-03E	Flow Range: 2.0 TO 20 GPM, 8.0 TO 80 LPM, Height: 11", Float: 316 SS, Adapter: 3/4" FNPT	$303.00	$0.00
6B4200-03F	Flow Range: 2.0 TO 20 GPM, 8.0 TO 80 LPM, Height: 11", Float: 316 SS, Adapter: 1" FNPT	$303.00	$0.00
