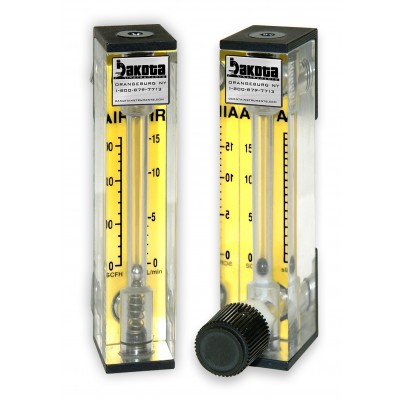

Air Flow Meter - Acrylic, Brass Fittings

Available for multiple flow rates, this Acrylic Flow Meter has a Dual Direct Reading Scale with yellow backing for easy viewing of Air flow values. Viton® Seals, 1/8" FNPT and Brass End fittings are standard. The float material varies based on the metering range (316 SS, Carboloy, Glass).
  • Yellow Backed Scales in English or Metric Measures
  • Customer Convertible Panel to Partial or Full In-Line Mounted Configurations
  • Available With or Without Built-in Low Hysteresis Needle Valves
  • Simple Dis-assembly and Assembly for Cleaning
  • Stable, Easy to Read Float
Specifications 6A01 Acrylic Flow Meters
Accuracy: +/- 5% of Full Scale reading
Maximum Temperature:
65° C (150° F)
Maximum Pressure:
6.9 bars (100 psig)
Meter Block:
Clear, Machined Acrylic
Float Materials:
Black Glass, Stainless Steel, Tungsten Carbide (Carboloy®)
O-Ring Seals:
Viton®
Fittings: Brass or 316 Stainless Steel 1/8" NPT Female Connections, Built-in Needle Valves & Seal Plugs

Usually Ships in 5 to 7 Business Days
Item #Item DescriptionItem PriceSubtotalQty
6A0101BN-ABAir Flow Meter, Acrylic, Qmax=1.4 LPM/2.8 SCFH, No Valve, Brass Ftngs $42.00 $0.00
6A0101BV-ABAir Flow Meter, Acrylic, QMAX=1.4 LPM/2.8SCFH, w. Valve/Brass Fittings $50.00 $0.00
6A0103BN-ABAir Flow Meter - Acrylic, Brass Fittings - 2.5 LPM/5.5 SCFH Air, 316 Stainless Steel Float, No Valve $42.00 $0.00
6A0103BV-ABAir Flow Meter - Acrylic, Brass Fittings - 2.5 LPM/5.5 SCFH Air, 316 Stainless Steel Float, Valve $50.00 $0.00
6A0105BN-ABAir Flow Meter - Acrylic, Brass Fittings - 3.5 LPM/7.0 SCFH Air, Carboloy Float, No Valve $42.00 $0.00
6A0105BV-ABAir Flow Meter - Acrylic, Brass Fittings - 3.5 LPM/7.0 SCFH Air, Carboloy Float, Valve $50.00 $0.00
6A0107BN-ABAir Flow Meter - Acrylic, Brass Fittings - 8.5 LPM/18.0 SCFH Air, Glass Float, No Valve $42.00 $0.00
6A0107BV-ABAir Flow Meter - Acrylic, Brass Fittings - 8.5 LPM/18.0 SCFH Air, Glass Float, Valve $50.00 $0.00
6A0109BN-ABAir Flow Meter - Acrylic, Brass Fittings - 16 LPM/32.5 SCFH Air, 316 Stainless Steel Float, No Valve $42.00 $0.00
6A0109BV-ABAir Flow Meter - Acrylic, Brass Fittings - 16 LPM/32.5 SCFH Air, 316 Stainless Steel Float, Valve $50.00 $0.00
6A0111BN-ABAir Flow Meter - Acrylic, Brass Fittings - 22 LPM/45 SCFH Air, Carboloy Float, No Valve $42.00 $0.00
6A0111BV-ABAir Flow Meter - Acrylic, Brass Fittings - 22 LPM/45 SCFH Air, Carboloy Float, Valve $50.00 $0.00
6A0113BN-ABAir Flow Meter - Acrylic, Brass Fittings - 50.0 LPM/100.0 SCFH Air, 316 Stainless Steel Float, No Valve $42.00 $0.00
6A0113BV-ABAir Flow Meter - Acrylic, Brass Fittings - 50.0 LPM/100.0 SCFH Air, 316 Stainless Steel Float, Valve $50.00 $0.00
