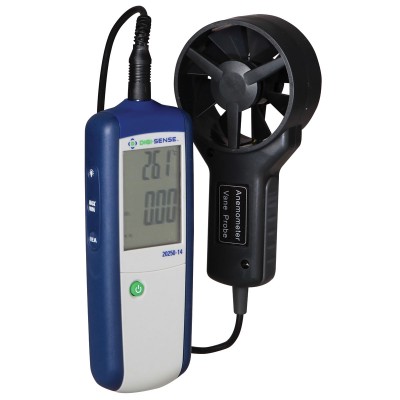

CFM/CMM Vane Thermoanemometer with NIST (WD-20250-14)

Digi-Sense's CFM/CMM Thermoanemometer provides precision air velocity and airflow measurements with seven user-selectable units and is ideal for meeting your environmental and cooling requirements. The user-friendly dual display provides simultaneous readings of air velocity or airflow and air temperature. The large dual-function 4-digit LCD with backlight allows easy reading in dimly lit conditions. Auto Power Off extends battery life.
  • Reliable measurements guaranteed. Precalibrated to NIST- traceable standards* and ready to use!
  • User-selectable units of measurement: ft/min, m/s, mph,km/h, knots, CFM, and CMM
  • Measure air velocities up to 5900 ft/min (30 m/s)
  • Measure airflow up to 999,900 CFM (999,900 CMM)
  • The large dual- function 4-digit LCD with backlight allows easy reading in dimly lit conditions.
  • Auto Power Off extends battery life
  • To save time, two memory locations, one CFM & one CMM, store commonly used vent area sizes.
Specifications WD-20250-14
Range: Air velocity:
0.40 to 30 m/s
80 to 5900 ft/min
1.4 to 108.0 km/hr
0.9 to 67.0 mph
0.8 to 58.0 knots
Air flow:
0 to 999,900 CFM
0 to 999,900 CMM
Air temperature:
32 to 122°F
0 to 50°
Units:
Air velocity: m/s, ft/min, km/hr, mph, knots
Airflow: CFM, CMM
Air temperature: °C or °F
Accuracy:
Air velocity:
±(3% + 0.20 m/s)
±(3% + 40 ft/min)
±(3% + 0.8 km/hr)
±(3% + 0.4 mph)
±(3% + 0.4 knots)
Air temperature:
±4.0°F
±2.0°C
Resolution:
Air velocity:
0.01 m/s
1 ft/min
0.1 km/hr
0.1 mph
0.1 knots
Air flow:
0.001 to 100 CFM
0.001 to 100 CMM
Air temperature:
0.1°F
0.1°C
Sampling time:
Air velocity: m/s, ft/min, km/hr, mph, knots
Airflow: CFM, CMM
Air temperature: °C or °F
Display:
Backlit LCD
Battery Life:
40 hours
Data Logging:
No
Dimensions:
Meter: 6-3/4" x 2-1/2" x 1" (16 x 6.2 x 2.1 cm)
Vane sensor head: 2-3/4" (7 cm) diameter
Cable length: 3.9 ft (1.2 m)
Power:
One 9V battery
Product Type:
Vane Anemometer
