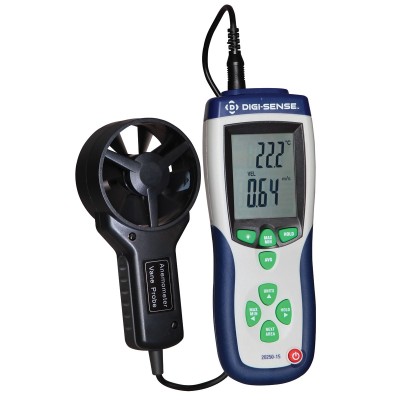

Professional CFM/CMM Vane Thermoanemometer with NIST

Digi-Sense's Professional CFM/CMM Thermoanemometer provides precision air velocity and airflow measurements and is ideal for meeting your environmental and cooling requirements. The large user-friendly dual display provides simultaneous readings of air velocity or airflow and air temperature. The large dual- function 4-digit LCD with backlight allows easy reading in dimly lit conditions. Auto Power Off extends battery life.
  • Reliable measurements guaranteed. Precalibrated to NIST- traceable standards* and ready to use!
  • Measures air velocity and temperature in a single point or averaging mode to best fit the application
  • Intuitive operation with easy access to temperature and airflow functionality
  • User-selectable units of measurement: ft/min, m/s, mph, km/h, knots, CFM, and CMM
  • Measure air velocities up to 5900 ft/min (30 m/s)
  • Measure airflow up to 999,900 CFM (999,900 CMM)
  • Air velocity and temperature in a single point or averaging mode to best fit the application.
  • Includes Vane probe sensor with 3.9 ft. (120 cm) cable, hard carrying case, one 9V battery and *NIST-traceable certificate with data and uncertainties
Specifications WD-20250-15
Operating Modes: Min/Max/Ave, data hold, record
Range: Air velocity:
0.40 to 30 m/s
80 to 5900 ft/min
1.4 to 108.0 km/hr
0.9 to 67.0 mph
0.8 to 58.0 knots
Air flow:
0 to 999,900 CFM
0 to 999,900 CMM
Air temperature:
32 to 122°F
0 to 50°
Units:
Air velocity: m/s, ft/min, km/hr, mph, knots
Airflow: CFM, CMM
Air temperature: °C or °F
Accuracy:
Air velocity:
±(3% + 0.20 m/s)
±(3% + 40 ft/min)
±(3% + 0.8 km/hr)
±(3% + 0.4 mph)
±(3% + 0.4 knots)
Air temperature:
±4.0°F
±2.0°C
Resolution:
Air velocity:
0.01 m/s
1 ft/min
0.1 km/hr
0.1 mph
0.1 knots
Air flow:
0.001 to 100 CFM
0.001 to 100 CMM
Air temperature:
0.1°F
0.1°C
Display:
Backlit LCD
Battery Life:
80 hours
Logging Intervals:
Manual entry
Data Logging:
Yes
Dimensions:
Main instrument: 8" x 3" x 2" (20.3 x 7.5 x 5 cm)
Vane sensor head: 2-3/4" (7 cm) diameter
Cable length: 3.9 ft (1.2 m)
Data Storage:
16 memory locations (8 under CFM, 8 under CMM)
Power:
One 9V battery
Product Type:
Vane Anemometer

Usually Ships in 3 to 5 Business Days
