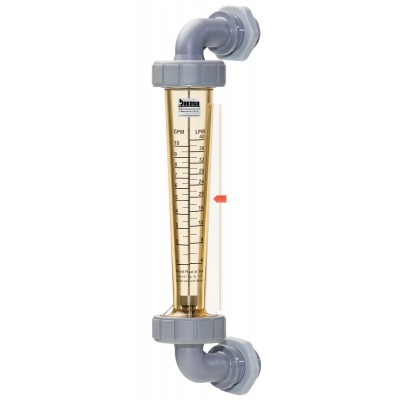

Polysulfone Panel Mount Flow Meter with Polysulfone Connections - Water, 4" GPM/LPM Scales, No Valve

The 6B02 series flow meters offer a tough injection molded Polysulfone meter body, corrosion and wear resistant internal parts, easy to read silk screened scales, good accuracy and repeatability and an excellent price! This flow meter is designed for panel mounting. With brass connections of 3/8"or 1/2" MNPT/FNPT, the 6B02 line has a liquid flow range of 0.1 GPM to 10 GPM (0.4 LPM to 40 LPM).
  • Economical
  • Tough Polysulfone Meter Body Resists High Temperatures and Pressures.
  • Larger Size for Easier Reading - Scale Length Approximately 4 inches (100mm).
  • Easy to Read Direct Reading Dual Scale (GPM/LPM)
  • Optional Integral Flow Adjustment Valve.
  • Standard Models #316 Stainless Steel Guide Rods (Optional Hastelloy® C-276 Available).
  • Standard Models #316 Stainless Steel or PTFE Float (Optional Hastelloy® C-276 or PVC Available).
  • Union Connections for Easy Installation and Maintenance.
  • Not Recommended for Direct Sunlight Applications.
Specifications 6B0201-H20
Accuracy: +/- 5% of Full Scale reading
Maximum Fluid Temperature:
Standard Units: 100 ° C (212° F) @ 0 PSI

Units with PVC: 54° C (130° F) @ 0 PSI

Units with Brass: 115° C (240° F) @ 0 PSI
Maximum Working Pressure:
10.3 bars (150 psig) @ 21 ° C (70° F)
Maximum Pressure Drop: 2 PSI
Meter Body Material:
Polysulfone
Connection Material:
Polysulfone
Float Materials:
316 SS, PTFE
O-Ring Seals:
Viton®
Calibration Fluid: Water, Specific Gravity 1.0

Usually Ships in 5 to 7 Business Days
Item #Item DescriptionItem PriceSubtotalQty
6B0201-01CFlow Range: 0.1 - 1.0 GPM, 0.4 - 4.0 LPM, Center to Center Distance: 8 9/16", Float: PTFE, Adapter: 3/8" FNPT Polysulfone $182.00 $0.00
6B0201-01DFlow Range: 0.1 - 1.0 GPM, 0.4 - 4.0 LPM, Center to Center Distance: 8 9/16", Float: PTFE, Adapter: 1/2" MNPT Polysulfone $182.00 $0.00
6B0201-02CFlow Range: 0.2 - 2.0 GPM, 1.0 - 7.5 LPM, Center to Center Distance: 8 9/16", Float: 316 SS Adapter: 3/8" FNPT Polysulfone, $182.00 $0.00
6B0201-02DFlow Range: 0.2 - 2.0 GPM, 1.0 - 7.5 LPM, Center to Center Distance: 8 9/16", Float: 316 SS, Adapter: 1/2" MNPT Polysulfone $182.00 $0.00
6B0201-03CFlow Range: 0.5 - 5.0 GPM, 2.0 - 20.0 LPM, Center to Center Distance: 8 9/16", Float: 316 SS, Adapter: 3/8" FNPT Polysulfone $182.00 $0.00
6B0201-03DFlow Range: 0.5 - 5.0 GPM, 2.0 - 20.0 LPM, Center to Center Distance: 8 9/16", Float: 316 SS, Adapter: 1/2" MNPT Polysulfone $182.00 $0.00
6B0201-03EFlow Range: 0.5 - 5.0 GPM, 2.0 - 20.0 LPM, Center to Center Distance: 8 9/16", Float: 316 SS, Adapter: 3/4" MNPT Polysulfone $182.00 $0.00
6B0201-04DFlow Range: 1.0 - 10 GPM, 4.0 - 40.0 LPM, Center to Center Distance: 9 1/8", Float: 316 SS, Adapter: 1/2" MNPT Polysulfone $204.00 $0.00
6B0201-04EFlow Range: 1.0 - 10 GPM, 4.0 - 40.0 LPM, Center to Center Distance: 9 1/8", Float: 316 SS, Adapter: 3/4" MNPT Polysulfone $204.00 $0.00
