Proportional Solenoid Valve, 316/416 Stainless Steel, Viton® seals, 1/4" Compression Fittings

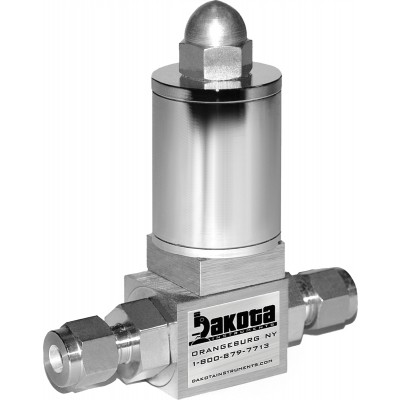

Proportional Solenoid Valve, 316/416 Stainless Steel, Viton® seals, 1/4" Compression Fittings (6APSV01).

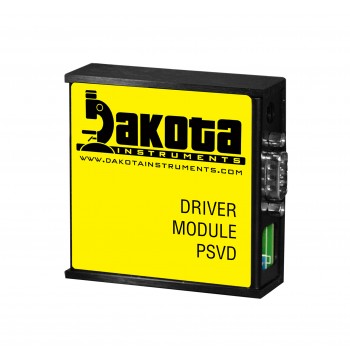

Pulse width modulated Driver Modules regulate the power supplied to the Proportionating Electromagnetic Valves based on a reference signal. Set-point signals, 0-5 Vdc or 4-20 mA, input are employed to control the output pulse width modulated voltage at a fixed frequency (≈30KHz) and amplitude. Incoming power to the valve coil is applied and discontinued for predetermined periods of time by a low loss solid state switching element.

The wide range of power input features conveniently accommodates 12 to 32 Vdc sources.

The Auto-Select feature of the Driver Module recognizes the type of reference signal received and defaults to 0 - 5 Vdc if both signals are provided.

Optional Kalrez/PTFE O-rings Available. Contact Dakota for model and pricing information.

Driver Module and Power Supply Sold Separately. Click here to purchase.

  • Leak integrity 1x10-9 mL/sec Helium individually tested
  • Rigged metallic construction
  • Proportionality regulates the flow of liquid and gasses
  • Maximum pressure of 1,000 psig (66.9 bars; 6896kPa)
Specifications:6APSV Proportional Solenoid Valve
Power Input:0-30 Vdc.
Max. Power Required:400 mA.
Type of Operation:Normally closed (NC) when de-energized.
Connections:1/4" Compression fittings optional 1/8" and 3/8".
Dimensions:3.45" (87.6mm) high x 3.25" (82.6mm) long (including compression fittings) x 1.00" (25.4mm) deep.
Materials in Fluid Contact:Types 316 and 416 stainless steel, Viton® O-rings. (Optional O-rings: Buna®, EPR and Kalrez®.)
Maximum Pressure:1000 psig (6896 kPa).
Maximum Differential Pressure:50 psid (345 kPa).
Leak Integrity:1 X 10-9 smL/sec Helium individually tested.
Maximum Fluid Temperature:32°F (0°C) to 122°F (50°C)
Maximum Temperature (Typical):174°F (79°C) inside, 130°F (54°C) outside surface at 24Vdc.
Usually Ships in 4 to 6 Weeks
Item #Item DescriptionItem PriceSubtotalQty
6APSV0101Maximum Flow Rates: 3500 std. ml/min Air, 125 ml/min Water; 0.009 Cv $265.00 $0.00
6APSV0102Maximum Flow Rates: 13000 std. ml/min Air, 400 ml/min Water; 0.033 Cv $265.00 $0.00
6APSV0103Maximum Flow Rates: 21500 std. ml/min Air, 700 ml/min Water; 0.055 Cv $265.00 $0.00
6APSV0104Maximum Flow Rates: 25000 std. ml/min Air, 850 ml/min Water; 0.068 Cv $265.00 $0.00
6APSV0105Maximum Flow Rates: 100000 std. ml/min Air, 2850 ml/min Water; 0.24 Cv $265.00 $0.00
