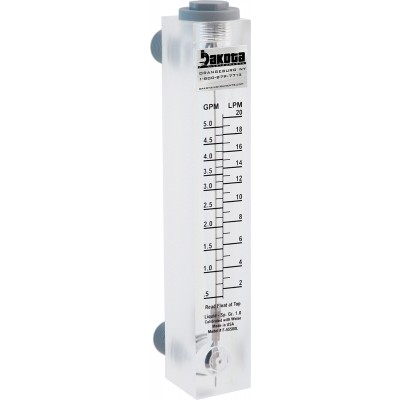

Acrylic Panel Mount Flow Meter, Polypropylene Connector, No Valve - Water

Acrylic Panel Mount Flow Meter, Polypropylene Connector, No Valve - Water

Note: Center to Center Height for Panel Mount shown in product description.
See product literature for complete product dimensions.
  • Durable, Highly Polished, One Piece Meter Body.
  • Easy to Read Direct Read Permanent Scale (GPM/LPM and SCFM)
  • Sturdy Adapters with High Grade Viton® 0-Rings Seals.
  • 316SS Floats and Float Guides.
  • Bulkhead Nuts Attach Directly Inside Panel.
  • Separate Mounting Screws are Not Required.
  • Optional Adjustable Flow Control Valve.
  • Acceptable in Direct Sunlight Applications
  • Easy to Disassemble.
Specifications 6B7100-H2O
Accuracy: +/- 5 % of Full Scale reading
Maximum Fluid Temperature:
93° C (200° F) @ 0 PSI
Maximum Working Pressure:
17.2 bars (250 psig) @ 21 ° C (70° F)
Maximum Pressure Drop: 0 PSI
Meter Body Material:
Machined Acrylic
Adapters Material:
Polypropylene
O-Ring Seals:
Viton®
Guide Rod:
316 SS
Calibration Fluid:
Water, Specific Gravity 1.0
Usually Ships in 5 to 7 Business Days
Item #Item DescriptionItem PriceSubtotalQty
6B7100-01BFlow Range: 0.025 - 0.250 GPM, 0.1 - 1.0 LPM, Center to Center Distance: 5-5/8", Float: 316 SS, Adapter: 1/4" MNPT $170.00 $0.00
6B7100-02CFlow Range: 0.1 - 1.0 GPM, 0.4 - 4.0 LPM, Center to Center Distance: 6-1/2", Float: 316 SS, Adapter: 3/8" MNPT $170.00 $0.00
6B7100-03CFlow Range: 0.2 - 2.0 GPM, 0.75 - 7.5 LPM, Center to Center Distance: 6-1/2", Float: 316 SS, Adapter: 3/8" MNPT $170.00 $0.00
6B7100-04DFlow Range: 0.5 - 5.0 GPM, 2.0 - 20 LPM, Center to Center Distance: 6-1/2", Float: 316 SS, Adapter: 1/2" MNPT $170.00 $0.00
6B7100-05EFlow Range: 1.0 - 10 GPM, 4.0 - 40 LPM, Center to Center Distance: 6-1/2", Float: 316 SS, Adapter: 3/4" MNPT $204.00 $0.00
6B7100-06FFlow Range: 1.0 - 5.0 GPM, 3.0 - 18 LPM , Center to Center Distance: 8", Float: PTFE, Adapter: 1" MNPT $273.00 $0.00
6B7100-07FFlow Range: 1.0 - 10 GPM, 4.0 - 40 LPM, Center to Center Distance: 8", Float: 316 SS, Adapter: 1" MNPT $273.00 $0.00
6B7100-08FFlow Range: 1.0 - 15 GPM, 5.0 - 60 LPM, Center to Center Distance: 8", Float: 316 SS, Adapter: 1" MNPT $273.00 $0.00
6B7100-09FFlow Range: 2.0 - 20 GPM, 7.5 - 75 LPM, Center to Center Distance: 8", Float: 316 SS, Adapter: 1" MNPT $273.00 $0.00
