Air Flow Meters- Acrylic, Brass Fittings, No Valve

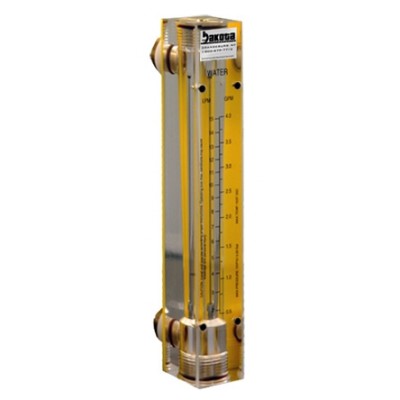

This Acrylic Flow Meter has a Dual Direct Reading Scale with yellow backing for easy viewing of Air flow values. Viton® Seals, 3/8" FNPT and Brass End fittings are standard. The float/guide material is 316 Stainless Steel. This Flow Meter is designed for panel mounting and can handle a Maximum Flow Rate of 550 LPM (20 SCFM). No Valve.
  • Yellow Backed Scales in English or Metric Measures
  • Panel Mount
  • No Valve
  • Simple Dis-assembly and Assembly for Cleaning
  • Stable, Easy to Read Float
  • Optional scales can be developed for diverse low flow conditions, facilitating OEM applications
  • No Valve
Specifications 6A02 Acrylic Flow Meters
Accuracy: +/- 5% of Full Scale reading
Maximum Temperature:
54 ° C (130°F)
Maximum Pressure:
6.89 bars (100 psig)
Maximum Flow Rate:
550 LPM (20 SCFM)
Body:
Optical, Clear, Cast Acrylic
Float & Guide
316 Stainless Steel
O-Rings:
Viton®
Connections: Brass 3/8" NPT Female Connections
Valve Parts: Brass

Usually Ships in 2 to 3 Weeks
Item # Item Description Item Price Subtotal Qty
6A0209BN-AB Air Flow Meter 270 LPM (9.5 SCFM) - Acrylic, Brass Fittings, No Valve $145.00 $0.00
6A0211BN-AB Air Flow Meter 550 LPM (20 SCFM) - Acrylic, Brass Fittings, No Valve (6A0211BN-AB) $145.00 $0.00
