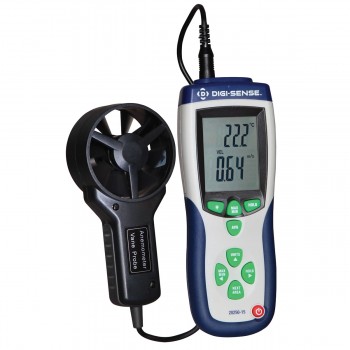

Data Logging Anemometer with NIST (WD-20250-22)

Data Logging Anemometer with NIST (WD-20250-22)

Image for illustrative purposes only, actual product may vary.

Alternative Views:

Digi-Sense's handheld or mounted Data Logging Anemometer takes and records accurate air velocity measurements in seven user-selectable units. For graphing and analysis, simply download data to a PC. Recorded data can be used to enhance your environment's comfort and safety.

Guaranteed reliable measurements. Precalibrated to NIST-traceable standards* and ready to use!
Handheld or mount for flexible positioning
Measure air velocities up to 3937 ft/min (20.0 m/s)
User-selectable measurement units: ft/min, m/s, mph, km/h, or knots
Manual and automatic start data logging function modes
Collect 1-32,000 readings in memory
Graph and analyze logged data
Adjustable sampling intervals from once every two seconds to once every 24 hours
Visual LED alerts with selectable high and low alarm levels

Specifications		WD-20250-22
Range:		1.1 to 20.00 m/s 0.8 to 72.0 km/hr 80 to 3937 ft/min 0.9 to 44.8 mph 0.8 to 38.8 knots
Units:		m/s, km/hr, ft/min, mph, knots
Accuracy:		±(3% + 0.20 m/s) ±(3% + 1.0 km/hr) ±(3% + 40 ft/min) ±(3% + 0.4 mph) ±(3% + 0.4 knot)
Resolution:		0.01 m/s 0.1 mph 1 ft/min 0.1 knots 0.1 km/hr
Display:		Backlit LCD
Output:		USB
Memory Capacity:		32,000 datapoints
Logging Intervals:		2 s, 5 s, 10 s, 30 s, 1 min, 5 min, 10 min, 30 min, 1 hr, 2 hr, 3 hr, 6 hr, 12 hr, 24 hr
Data Logging:		Yes
Dimensions:		5-3/4" x 1-3/8" x 1-1/8" (14.5 x 3.5 x 3 cm)
Product Type:		Vane Anemometer
