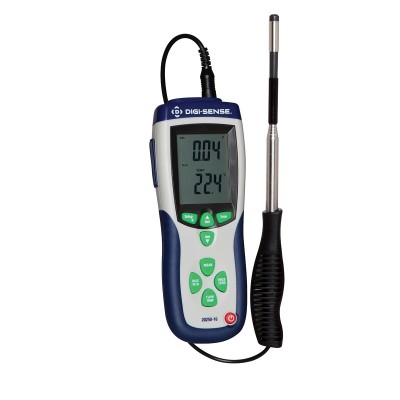

Hot-Wire Thermoanemometer with NIST (WD-20250-16)

Digi-Sense's rugged Hot-Wire Thermoanemometer achieves precise airflow measurements and maximizes performance for comfort and safety by analyzing and storing your information for future reference. Simultaneously read airflow or velocity and temperature on the large LCD. Nine user-selectable units of measurement are available.
  • Guaranteed, reliable measurements precalibrated to NIST-traceable standards* and ready to use!
  • Slim, telescoping, hot-wire probe ideal for diffuse rs and grilles.
  • User-selectable units of air measurement: ft/min, m/s, mph,km/h, knots, CFM, and CMM.
  • Measure airflow up to 99,900 CFM (99,900 CMM)
  • Measure air velocities up to 4925 ft/min (25 m/s)
  • Unique, large dual-function LCD backlight for low-light reading conditions
  • Auto Power Off to extend battery life
  • Download measurements into a PC for analysis and storage
  • Telescoping hot-wire probe sensor with cable, USB cable, software CD, hard carrying case, AC/DC power adapter, 9V battery,*NIST-traceable certificate with data and uncertainties included.
Specifications WD-20250-16
Units: For Air Velocity:m/s, ft/min, km/hr, mph, knots
For Airflow: cfm, cmm
For Temperature: °F, °C
Temp Resolution:
0.1°F/°C
Volume Range: 0 to 99,900 cfm
0 to 99,900 ccm
Volume Resolution: 0.001 to 100 cfm 0.001 to 100 ccm
Operating Conditions:
32 to 122°F (0 to 50°C) <80% RH, noncondensing
Sampling Time :
Approximately every 0.8 second
Temp Range :
32 to 122°F (0 to 50°C)
Temp Accuracy:
±1.8°F (±1°C)
Air Velocity Range:
0.1 to 25.0 m/s
20 to 4925 ft/min
0.3 to 90 km/hr
0.2 to 55.8 mph
0.2 to 48.5 knots
Air Velocity Resolution:
0.01 m/s
0.1 mph
1 ft/min
0.1 knots
0.1 km/hr
Air Velocity Accuracy:
±(5% + 1 digit) reading ±(1% + 1 digit) full scale
Display:
Large, dual, backlit LCD (1-7/8" x 2-3/8" or 4.7 x 6 cm)
Output:
USB
Data Logging:
No
Dimensions:
8-1/4" x 3" x 2" (21 x 7.5 x 5 cm)
Power:
One 9V battery (included) or AC adapter
Product Type:
Hot-Wire Anemometer

Usually Ships in 3 to 5 Business Days
Item # Item Description Item Price Subtotal Qty
WD-20250-16 Hot-Wire Thermoanemometer with NIST (WD-20250-16) $408.00 $0.00

* Required Fields

Usually Ships in 3 to 5 Business Days
$408.00
